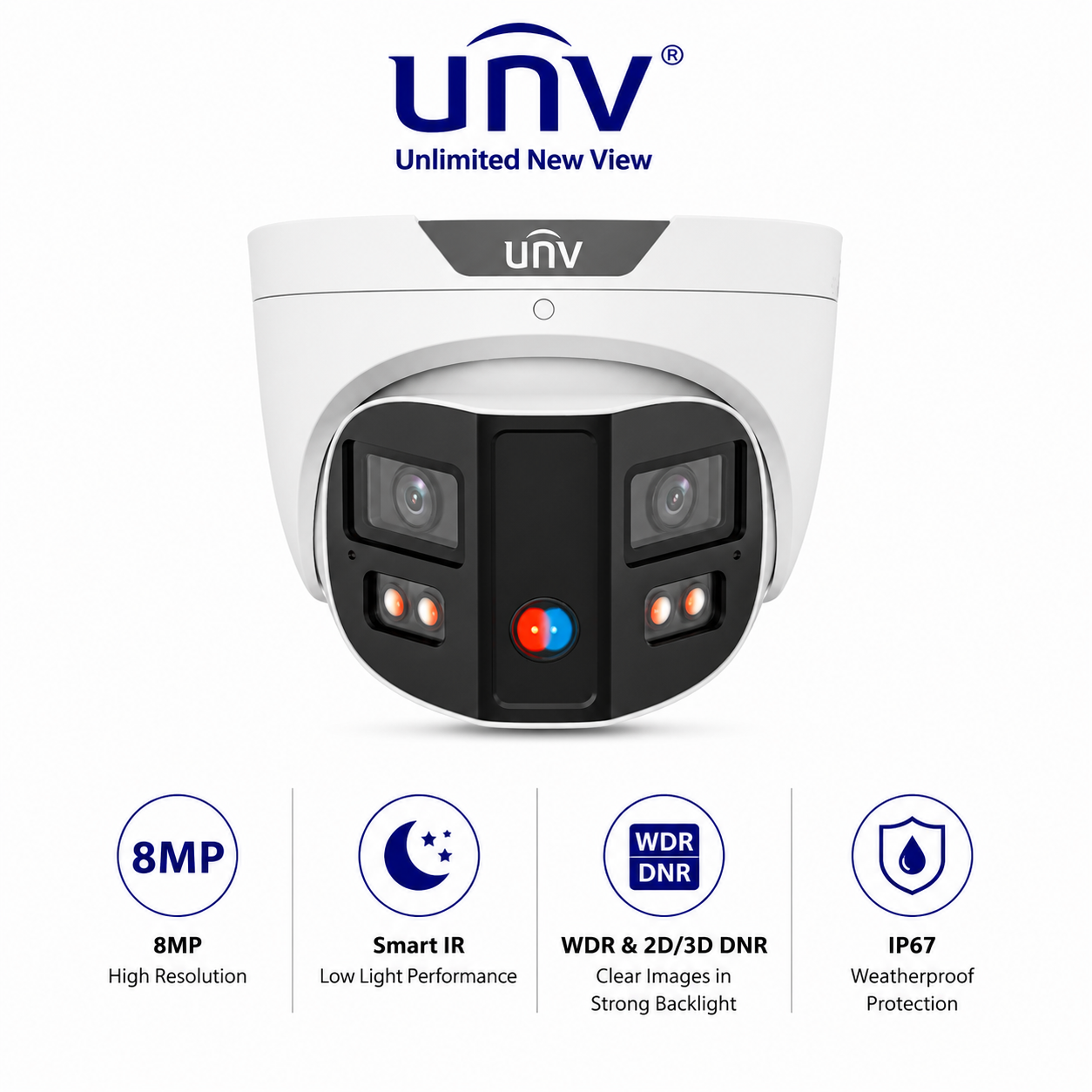

Uniview UV-IPC3K28SE-ADF28KMC-DL-I0-W & UV-IPC3K28SE-ADF28KMC-DL-I0-B Advanced 4K ColorHunter OmniView Panoramic TriGuard Turret Camera
Uniview UV-IPC3K28SE-ADF28KMC-DL-I0-W and UV-IPC3K28SE-ADF28KMC-DL-I0-B are advanced 8MP panoramic network turret cameras combining ColorHunter full-colour imaging, OmniView dual-lens panoramic coverage and TriGuard active deterrence. Dual-lens splicing provides a wide 180° horizontal field of view, helping reduce blind spots across large areas.
With F1.0 optics, 130dB True WDR, dual-light illumination, red and blue warning lights, intelligent intrusion prevention, built-in dual microphones, speaker, two-way audio, PoE and IP67/IK10 protection, this camera is designed for professional wide-area surveillance.
Key Features
OmniView Panoramic Technology
ColorHunter Full-Colour Imaging
ColorHunter technology provides full-colour imaging in low-light conditions. The F1.0 aperture and high-performance 1/2.5″ CMOS sensor help produce bright, detailed footage, while dual-light illumination provides additional IR and warm-light support.
TriGuard Active Deterrence
AI & Smart Features
| Feature | Description |
|---|---|
| Smart Intrusion Prevention | Supports cross line, intrusion, enter-area and leave-area detection with false-alarm filtering. |
| Human Detection | Accurately classifies people for improved alarm accuracy. |
| Vehicle Detection | Identifies motor vehicles separately from general movement. |
| Non-Motor Vehicle Detection | Supports non-motor vehicle classification. |
| People Flow Counting | Supports intelligent people flow counting. |
| Crowd Density Monitoring | Provides crowd density analysis for wide-area monitoring. |
Video Specifications
| Specification | Value |
|---|---|
| Image Sensor | 1/2.5″ CMOS |
| Maximum Resolution | 4096 × 1860 (8MP) |
| Lens | 2 × 2.8mm Fixed |
| Aperture | F1.0 |
| Horizontal Field of View | 180° |
| Vertical Field of View | 65° |
| Frame Rate | Up to 20fps at 8MP |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| WDR | 130dB True WDR |
Image Features
ColorHunter, Smart IR, dual-light illumination, 130dB True WDR, 2D/3D DNR, BLC, HLC, Digital Defog, ROI, Privacy Masking and Auto Scene Match provide clear surveillance across changing lighting conditions.
Audio & Active Deterrence
| Feature | Support |
|---|---|
| Built-in Microphones | Dual Microphone |
| Built-in Speaker | Yes |
| Two-Way Audio | Supported |
| Audio Compression | G.711U / G.711A |
| Audio I/O | 1 Input / 1 Output |
| Warning Lights | Red & Blue |
Network & Storage
| Feature | Details |
|---|---|
| Ethernet | 1 × RJ45 10/100 Mbps |
| MicroSD | Up to 512GB |
| Network Storage | NAS / ANR |
| ONVIF | Profile S / G / T / M |
| PoE | IEEE 802.3af |
Environmental Protection
| Feature | Specification |
|---|---|
| Weather Rating | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Power | DC 12V ±25% / PoE IEEE802.3af |
Applications
Ideal for car parks, warehouses, retail stores, shopping areas, building entrances, campuses, offices, industrial premises and other large areas requiring panoramic surveillance and active deterrence.
Package Contents
1 × Uniview UV-IPC3K28SE-ADF28KMC-DL-I0 Camera
Mounting Accessories
Quick Installation Guide
Why Choose This Camera?
The UV-IPC3K28SE-ADF28KMC-DL-I0 combines 8MP panoramic imaging, 180° wide-area coverage, ColorHunter, dual-light illumination, AI analytics and active deterrence. Built-in microphones and speaker, warning lights, two-way audio, 130dB WDR, PoE, 512GB MicroSD, IP67 and IK10 make it an excellent professional wide-area security solution.
Download the Official Full Specs Sheet
View the full manufacturer technical specifications for the
Download Official Datasheet
