Description

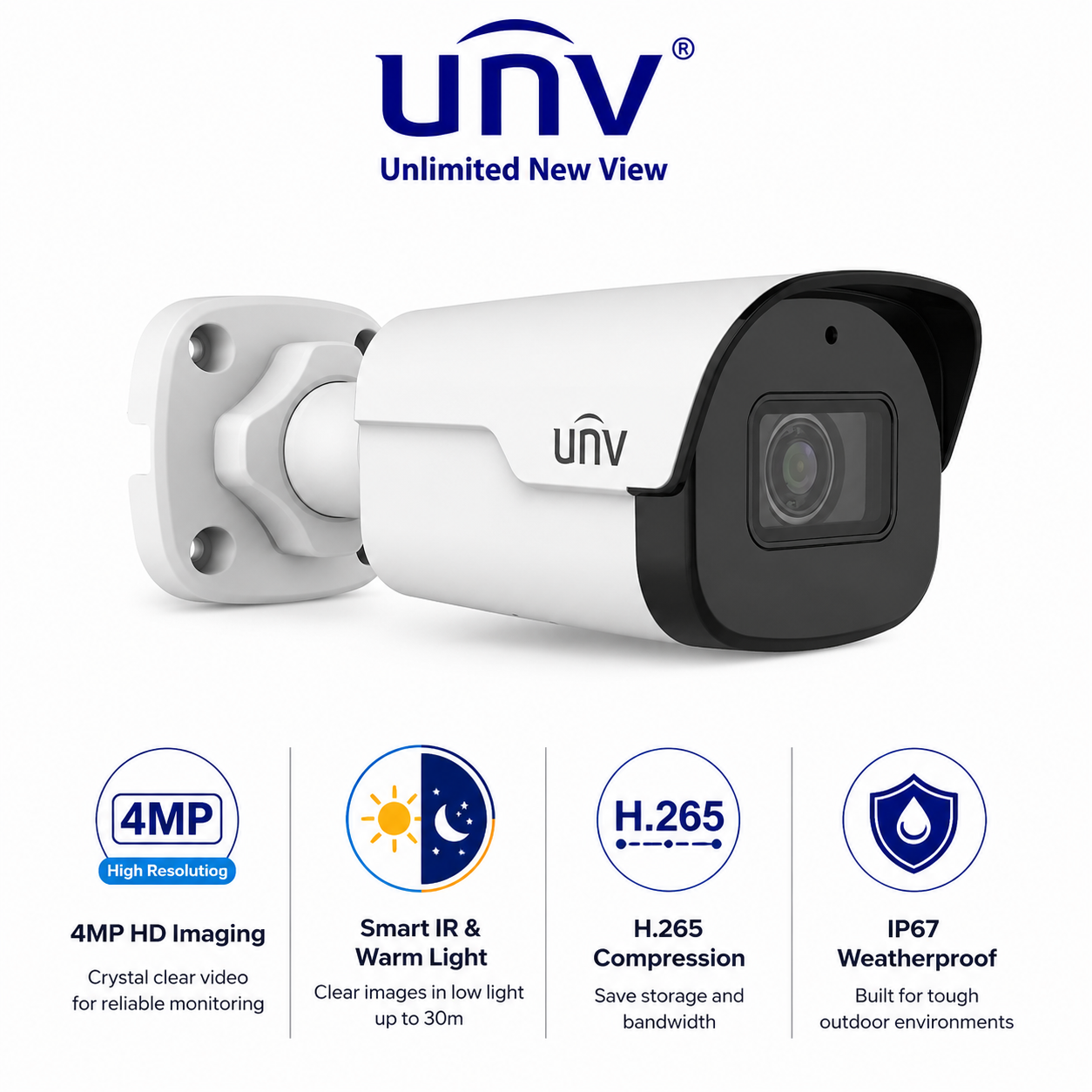

Uniview UV-IPC2124SB-ADF40KM-I0-W Powerful 4MP LightHunter Prime Fixed IR Bullet Network Camera
The Uniview UV-IPC2124SB-ADF40KM-I0-W is a professional 4MP LightHunter fixed IR bullet network camera designed for reliable CCTV surveillance in residential, commercial and professional security installations. It combines high-resolution 4MP imaging, excellent low-light performance, intelligent detection, 120dB True WDR and long-range Smart IR illumination in a robust outdoor-ready camera.
Powered by LightHunter technology, the camera delivers clear and detailed images in low-light environments. The 4mm fixed lens provides a narrower field of view than a wide-angle lens, making it particularly suitable for monitoring entrances, driveways, corridors, building perimeters and areas where greater detail at distance is required.
The camera also supports intelligent intrusion prevention, helping distinguish humans, vehicles and non-motor vehicles from unwanted movement. With Smart IR up to 40 metres, built-in microphone, PoE, MicroSD storage up to 512GB and IP67 protection, it provides a dependable and practical surveillance solution for demanding installations.
Key Features
LightHunter Technology
This makes the UV-IPC2124SB-ADF40KM-I0-W an excellent choice for areas that require dependable surveillance after dark without relying exclusively on additional lighting.
120dB True WDR
120dB True Wide Dynamic Range helps the camera maintain image detail when a scene contains both bright and dark areas. This is particularly useful for entrances, doors, windows, loading areas and outdoor locations exposed to strong sunlight or backlighting.
Smart IR Night Vision
The integrated infrared system provides up to 40 metres of IR illumination, helping maintain clear surveillance images in complete darkness. Smart IR automatically manages the infrared illumination to help prevent overexposure of nearby subjects.
| Feature | Specification |
|---|---|
| IR Distance | Up to 40m |
| IR Wavelength | 850nm |
| IR Control | Auto / Manual |
| Day/Night | IR-Cut Filter with Automatic Switching |
AI & Smart Detection
| AI Function | Description |
|---|---|
| Human Detection | Identifies human targets for intelligent event detection. |
| Vehicle Detection | Recognises vehicles separately from other moving objects. |
| Non-Motor Vehicle Detection | Supports detection and classification of non-motor vehicle targets. |
| Cross Line Detection | Triggers an event when a defined virtual line is crossed. |
| Intrusion Detection | Detects targets entering a defined protected area. |
| Enter Area Detection | Detects when a target enters a designated area. |
| Leave Area Detection | Detects when a target leaves a designated area. |
| Smart Intrusion Prevention | Uses target classification to help reduce false alarms caused by irrelevant movement. |
| People Flow Counting | Provides people-flow statistics for supported applications. |
| Crowd Density Monitoring | Helps monitor crowd levels in defined areas. |
Video Specifications
| Specification | Value |
|---|---|
| Image Sensor | 1/3.0″ Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 (4MP) |
| Lens | 4mm Fixed |
| Aperture | F1.6 |
| Field of View Horizontal | 83.7° |
| Field of View Vertical | 44.9° |
| Field of View Diagonal | 89.2° |
| Frame Rate | Up to 30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| Video Streams | Triple Stream |
| Video Bit Rate | 128Kbps – 16Mbps |
| WDR | 120dB True WDR |
Image Features
| Feature | Support |
|---|---|
| LightHunter | Supported |
| True WDR | 120dB |
| 2D DNR | Supported |
| 3D DNR | Supported |
| Smart IR | Supported |
| BLC | Supported |
| HLC | Supported |
| Digital Defog | Supported |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 8 OSD areas |
| 9:16 Corridor Mode | Supported |
Audio Features
| Feature | Support |
|---|---|
| Built-in Microphone | Yes |
| Audio Input | Built-in microphone |
| Audio Compression | G.711U / G.711A |
Network & Storage
| Feature | Details |
|---|---|
| Network Interface | 10/100 Mbps Ethernet |
| Storage | MicroSD up to 512GB |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| PoE | IEEE 802.3af |
| ONVIF | Supported |
| Video Streams | Triple Stream |
| U-Code | Supported |
Interfaces
The camera provides an RJ45 network interface, built-in microphone, MicroSD card slot and PoE connectivity, providing flexible integration with compatible Uniview NVRs and IP CCTV systems.
Environmental Protection
| Feature | Specification |
|---|---|
| Weather Protection | IP67 |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Power | DC 12V ±25% / PoE IEEE 802.3af |
DORI Performance
| Function | Distance |
|---|---|
| Detect | 90m |
| Observe | 36m |
| Recognise | 18m |
| Identify | 9m |
Applications
The Uniview UV-IPC2124SB-ADF40KM-I0-W is ideal for homes, offices, retail stores, warehouses, schools, hotels, factories, industrial premises, car parks, building entrances, driveways and commercial properties.
The 4mm lens and 40m infrared range make it particularly suitable for applications requiring focused surveillance over longer distances while maintaining reliable image detail.
Package Contents
1 × Uniview UV-IPC2124SB-ADF40KM-I0-W Camera
Mounting Accessories
Quick Installation Guide
Why Choose This Camera?
The Uniview UV-IPC2124SB-ADF40KM-I0-W combines professional 4MP imaging, LightHunter low-light performance, 120dB True WDR, intelligent detection and 40m Smart IR in a reliable bullet camera design.
With PoE, MicroSD storage up to 512GB, built-in microphone, ONVIF integration, 9:16 corridor mode and IP67 weather protection, it is a dependable choice for installers looking for a professional Uniview IP CCTV camera with strong day-and-night performance.
Download the Official Full Specs Sheet
View the full manufacturer’s technical specifications for the
Download Official Datasheet
