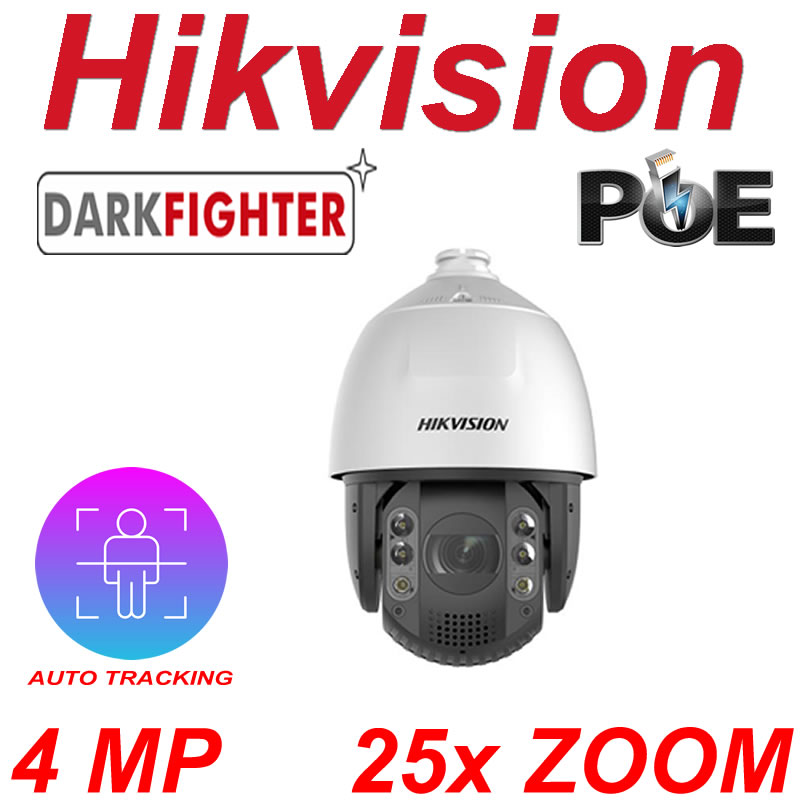

Hikvision DS-2DE7A425IW-AEB 4MP 25X Zoom Smart Auto Tracking Low Light Darkfighter IP PoE PTZ CCTV Security Camera

Description

What is included:

• 1x Hikvision DS-2DE7A425IW-AEB (T5)

Hikvision DS-2DE7A425IW-AEB (T5) Features:

• 1/2.8″ progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 200 m IR distance
• Focuses on human and vehicle targets classification based on deep learning
• Face capture: Up to 5 faces captured at the same time

Hikvision DS-2DE7A425IW-AEB (T5) Specifications:

Camera

• Image Sensor1/2.8″ progressive scan CMOS
• Max. Resolution2560 × 1440
• Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
• Shutter Speed1/1 s to 1/30000 s
• Day & Night IR cut filter
• Zoom25x optical, 16x digital
• Slow Shutter Yes
• DORI

  Detect (25px/m): 2046.9 m

  Observe (63px/m): 812.3 m

  Recognize (125px/m): 409.4 m

  Identify (250px/m): 204.7 m

Lens

• Focal Length 4.8 mm to 120 mm
• FOV

  Horizontal field of view: 50.8° to 2.6° (wide-tele),

  Vertical field of view: 29.4° to 1.5° (wide-tele),

  Diagonal field of view:57.4° to 3° (wide-tele)

• Focus Auto, semi-auto, manual
• Aperture Max. F1.5
• Zoom Speed Approx. 4.8 s

Illuminator

• Supplement Light Type IR
• Supplement Light Range IR Distance: up to 200 m

PTZ

• Movement Range (Pan) 360°
• Movement Range (Tilt) -15° to 90° (auto flip)
• Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
• Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan Yes
• Presets 300
• Preset Freezing Yes
• Patrol Scan 8 patrols, up to 32 presets for each patrol
• Pattern Scan 4 pattern scans
• Park Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning Yes
• PTZ Status Display Yes
• Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Power-off Memory Yes

Video

• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate 32 kbps to 16384 kbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region of Interest (ROI) 8 fixed regions for each stream

Audio

• Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live View Up to 20 channels
• API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host Up to 32 users, 3 user levels: administrator, operator, and user
• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+


• Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) 120 dB
• SNR > 52 dB
• Defog Digital defog
• Image Stabilization EIS
• Image Enhancement BLC, HLC, 3D DNR
• Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focus Yes
• Regional Exposure Yes

Interface

• Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-in Speaker 1 built-in speaker with effective distance reaching max. 30 meters
• Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Alarm 2 inputs, 1 output
• Reset Yes

Event

• Basic Event Motion detection, video tampering alarm, exception, alarm input and output
• Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Tracking Manual tracking, auto-tracking

Deep Learning Function

• Face Capture

  Detects up to 5 faces simultaneously.

  Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

General

• Power

  24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

  Hi-PoE

• Dimension Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
• Approx. 5 kg (11.03 lb.)
• Material ADC12
• Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Demist Yes

Approval

• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2019);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 62368-1:2014+A11:2017);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

  LOA (SANS IEC60950-1)

• Environment

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Protection IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
