Description
Hikvision DS-2CD33C7G3-LISUY/SL 12MP IP Camera with Two-Way Audio
The Hikvision DS-2CD33C7G3-LISUY/SL is a Hikvision 12MP IP camera designed for detailed surveillance, useful person and vehicle alerts, and two-way communication. Capture video at up to 4608 × 2592 resolution, speak to visitors through the built-in speaker, and configure white strobe lighting and audible warnings to respond to detected activity.

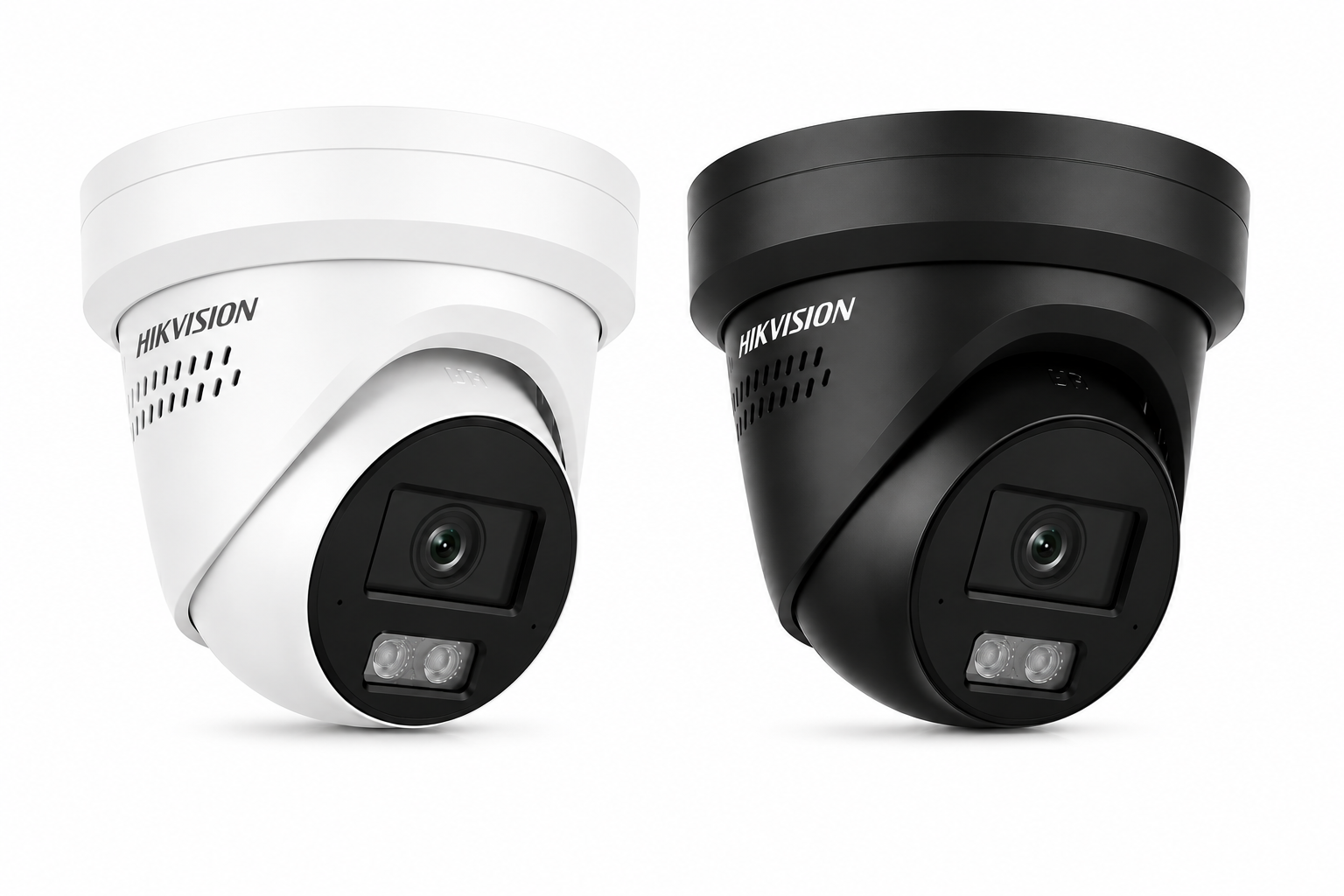

Supplied with a 2.8mm fixed lens, this camera provides a 94.2° horizontal view for entrances, driveways, shops and business premises. Choose White or GunMetal / Black using the colour dropdown. Smart Hybrid Light combines infrared and white illumination up to 40m, while HIK AI-ISP processing and a 1/1.8-inch sensor help produce clearer images in challenging light. This listing supplies one camera; recorders and installation accessories are available separately.
Why Choose This Product?
Choose this camera when you want detailed recordings alongside practical ways to respond to events. Its 12MP resolution provides more image pixels than standard 3840 × 2160 4K video, giving you additional detail to work with when reviewing or digitally enlarging recorded footage. The detail available still depends on the subject distance, lighting, lens coverage and recording settings.
A Hikvision two-way audio turret camera lets you communicate with delivery drivers, visitors or staff through compatible equipment. AcuSense human and vehicle classification helps focus supported alerts on relevant activity, while configurable lighting and audible warnings provide additional ways to respond.
Hikvision 12MP IP Camera with HIK AI-ISP
The camera captures up to 4608 × 2592 at 20 frames per second. Its 1/1.8-inch progressive scan CMOS sensor works with HIK AI-ISP image processing to help reduce image noise. Scene-adaptive 130dB WDR helps balance bright backgrounds and shaded subjects around doors, shopfronts and other areas with changing light.
The supplied 2.8mm F1.6 lens provides a 94.2° horizontal field of view. This is a fixed lens, not a motorised zoom lens. Lower-resolution recording settings support up to 25fps in 50Hz mode or 30fps in 60Hz mode. Select a recorder that supports 12MP input and configure the combined camera bitrates within its bandwidth limit.
Smart Hybrid Light and Colour Night Vision
This Hikvision Smart Hybrid Light camera offers infrared, white-light and smart lighting modes. Infrared supports black-and-white monitoring in darkness, while white illumination allows colour images when ambient light is insufficient. Smart mode can activate white light in response to supported target detection.
Supplemental illumination reaches up to 40m, depending on the installation and scene. Colour night-time imaging requires sufficient ambient or white light; infrared-only viewing is black and white. The illumination range is not a guaranteed distance for identifying faces or number plates.
AcuSense Human and Vehicle Detection
AcuSense classification helps distinguish people and vehicles in supported motion and perimeter events. Configure line crossing, intrusion, region entrance or region exiting around entrances, vehicle access routes and other important areas.
Detection zones, sensitivity and schedules can be adjusted for the premises. Face capture, scene change detection and audio exception detection are also supported. Available recording, notification and playback functions depend on the connected recorder, firmware and configuration.
Two-Way Audio and Active Deterrence
Built-in arrayed dual microphones capture sound, while the integrated speaker supports live communication through a compatible client. This makes the Hikvision two-way audio turret camera useful for speaking to someone at an entrance or responding to activity without being beside the camera.
White strobe lighting and audible warnings can be linked to supported events. The camera also provides an audio input and output, plus an alarm input and output, for suitable integrations. Configure speaker volume, warning actions and operating schedules to suit the location.
Recording Storage and Remote Viewing
Connect the camera to a compatible NVR for central recording and playback, or use a compatible microSD card up to 512GB for onboard storage. Recorders, hard drives and memory cards are sold separately. H.265+ compression helps manage storage and bandwidth when supported by the recording configuration.
Hik-Connect, iVMS-4200 and HikCentral are supported clients. Remote access requires a suitable internet connection and setup. Recording duration depends on storage capacity, bitrate, frame rate and recording schedule. A monitor’s display resolution is separate from the resolution retained in recorded footage.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-2CD33C7G3-LISUY/SL |
| Camera Type | Fixed turret network camera with two-way audio, white strobe and audible warning |
| Supplied Quantity | One camera |
| Housing Colour | White or GunMetal / Black, as selected |
| Maximum Resolution | 12MP — 4608 × 2592 |
| Image Sensor | 1/1.8-inch progressive scan CMOS |
| Image Processing | HIK AI-ISP |
| Supplied Lens | 2.8mm fixed focal lens, F1.6 |
| Field of View | Horizontal 94.2°; vertical 51.1°; diagonal 110.2° |
| Full-Resolution Frame Rate | Up to 20fps at 4608 × 2592 in 50Hz and 60Hz modes |
| Lower-Resolution Frame Rates | Up to 25fps at 50Hz or 30fps at 60Hz at 3840 × 2160, 2688 × 1520, 1920 × 1080 or 1280 × 720 |
| Minimum Illumination | Colour: 0.0008 lux at F1.6, AGC on; 0 lux with illumination |
| Shutter Speed | 1 second to 1/100,000 second |
| Day/Night | IR cut filter; day, night, automatic and scheduled switching |
| Supplemental Lighting | Smart Hybrid Light with infrared and white illumination; three lighting modes |
| Illumination Range | Up to 40m; 850nm infrared |
| Wide Dynamic Range | Scene-adaptive 130dB WDR |
| Image Enhancement | BLC, HLC, 3D DNR, distortion correction and defog |
| Video Compression | Main stream: H.265, H.264, H.264+ and H.265+ |
| Video Bitrate | 32Kbps to 24Mbps; CBR or VBR |
| Privacy Masks | Eight programmable polygon masks |
| Intelligent Detection | Human and vehicle classification for supported motion and perimeter events |
| Perimeter Events | Line crossing, intrusion, region entrance and region exiting |
| Other Detection Functions | Face capture, scene change, audio exception and video tampering detection |
| Audio | Built-in arrayed dual microphones and speaker; two-way audio with compatible equipment |
| Active Deterrence | White strobe light and audible warning |
| Audio Connections | One line input and one line output |
| Alarm Connections | One input and one output; output maximum 24V DC / 24V AC, 1A |
| Onboard Storage | microSD, microSDHC or microSDXC up to 512GB; card sold separately |
| Network Storage | NAS using NFS or SMB/CIFS; Auto Network Replenishment supported |
| Network Connection | One RJ45 10/100Mbps Ethernet port |
| Integration | ONVIF Profiles S, T and G; ISAPI, SDK and ISUP |
| Supported Clients | Hik-Connect, iVMS-4200 and HikCentral |
| PoE Power | IEEE 802.3at PoE+, Class 4; maximum 18W |
| Alternative DC Power | 12V DC ±25%, 1.34A; maximum 16W; reverse-polarity protection |
| Auxiliary Power Output | 12V DC, maximum 100mA |
| Housing | Metal cover and body |
| Weather Protection | IP67 water and dust resistance |
| Corrosion Protection | NEMA 4X; manufacturer’s moderate protection classification |
| Position Adjustment | Pan 0–360°; tilt 0–75°; rotation 0–360° |
| Operating Conditions | −30°C to +60°C; humidity up to 95%, non-condensing |
| Dimensions | Ø138.3 × 115.4mm |
| Weight | Approximately 825g |
| Manufacturer-Listed Junction Box | DS-1280ZJ-PT6-Y; sold separately |
Official Datasheet
Download the Hikvision datasheet for detailed specifications and installation information. This listing supplies the 2.8mm lens version; other lens options shown in the manufacturer’s document are not supplied with this listing.
Download DS-2CD33C7G3-LISUY/SL Datasheet
What’s Included
- 1 × Hikvision DS-2CD33C7G3-LISUY/SL 12MP turret IP camera with a 2.8mm fixed lens.
- White or GunMetal / Black housing, as selected.
- Standard mounting accessories and documentation supplied with the camera.
Sold separately: NVR, surveillance hard drive, network cable, microSD card, PoE+ switch or injector, separate power supply, junction box, monitor and installation service.
Ideal For
- Homes and driveways: Monitor entrances, parked vehicles and access routes.
- Shops and offices: Review activity around doorways, reception areas and deliveries.
- Workshops and warehouses: Cover loading areas and important access points.
- Two-way communication: Speak to visitors or staff through compatible equipment.
- Event-based monitoring: Configure alerts and active warnings around supported human and vehicle detection.
Installation & Compatibility
Power: Use an IEEE 802.3at PoE+ port or a suitable 12V DC supply. Allow for the camera’s maximum 18W PoE demand and cable losses when planning the system. Check both the power available from each port and the equipment’s total PoE budget.
Recording: Choose an NVR that supports 12MP camera input. Recording resolution, incoming bandwidth and simultaneous live-view decoding are separate limits. Configure camera streams and recording settings within the chosen recorder’s capabilities; not every recorder can display all channels at full 12MP resolution simultaneously.
4-channel NVR option: The Hikvision DS-7604NXI-K1/4P supports 12MP recording, with 40Mbps incoming bandwidth and a 50W total PoE budget. Four of these cameras can demand up to 72W before cable losses, so a four-camera installation needs a suitable additional power arrangement to cover maximum demand. Additional PoE+ equipment or separate camera power is sold separately.
Lighting and audio: Position this Hikvision Smart Hybrid Light camera away from nearby reflective surfaces that could direct illumination back into the lens. Configure detection zones, lighting behaviour, speaker volume and warning schedules during installation.
Mounting: Hikvision lists the DS-1280ZJ-PT6-Y junction box for this model. Use a mounting accessory confirmed for the supplied camera and weatherproof outdoor cable entries and connections. Contact us if you need help selecting the correct back base.
Complete Your Installation
Choose a 4-channel DS-7604NXI-K1/4P, 8-channel DS-7608NI-M2/8P or 16-channel DS-7616NI-M2/16P recorder around the number of cameras and your recording requirements. Check the selected recorder’s power budget and bandwidth before ordering, and add a suitable surveillance hard drive for NVR recording.
Add network cable for the camera connection and the Uniview MW3222-V-DT Full HD monitor for local viewing through the recorder. The monitor displays footage at its supported screen resolution while the NVR can retain higher-resolution recordings. These products are optional and sold separately.
Back-base compatibility: The DM21 link below is for other compatible camera models. For this DS-2CD33C7G3-LISUY/SL, use the manufacturer-listed PT6-Y or contact us to verify an alternative before purchase.
