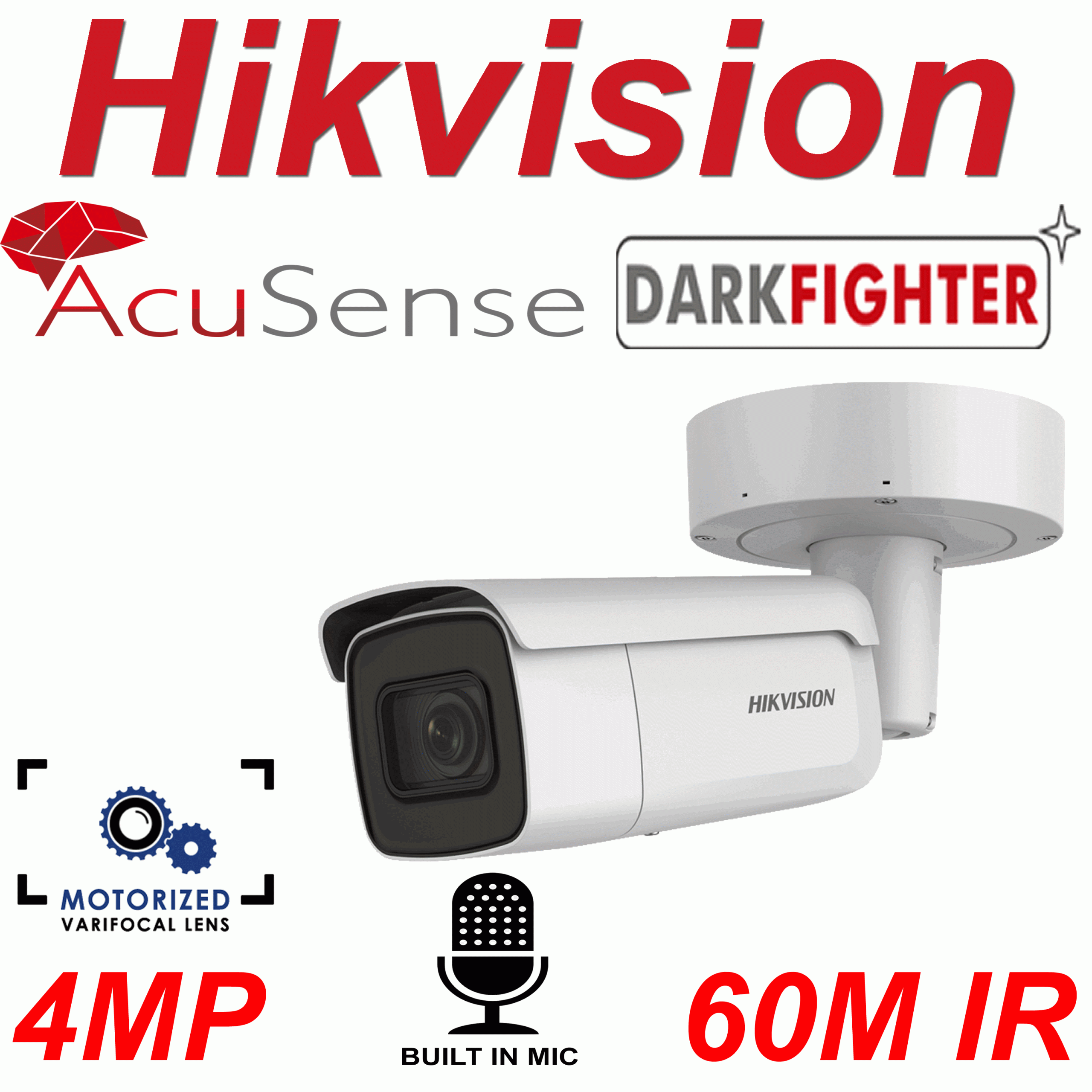

Hikvision DS-2CD2646G2H-IZS 4MP AcuSense Motorised Varifocal Bullet IP Camera
Hikvision DS-2CD2646G2H-IZS helps you monitor entrances, driveways, yards and business premises with detailed 4MP video and a remotely adjustable viewing angle. Its 2.8-12mm motorised varifocal lens lets you choose a wider view or focus more closely on a particular area after the camera has been mounted.
This Hikvision 4MP AcuSense camera combines Powered-by-DarkFighter low-light imaging, infrared illumination up to 60m and human and vehicle classification. Choose Black or White to suit your installation, with an IP67 / IK10 metal housing, PoE+ power and connections for external audio and alarm equipment.
Why Choose This Product?
The Hikvision DS-2CD2646G2H-IZS suits locations where the final viewing angle needs adjustment after installation. Its motorised lens helps you frame a doorway, loading bay or vehicle entrance without replacing the lens.
Choose this Hikvision DarkFighter bullet camera for its combination of low-light performance, adjustable coverage and protected outdoor housing. As a Hikvision 4MP AcuSense camera, it can also focus supported alerts on human and vehicle targets, helping you review relevant activity.
4MP Video and Recording Frame Rate
The camera captures 2688 × 1520 video at up to 25fps in 50Hz mode or 30fps in 60Hz mode. This provides detailed 4MP footage for monitoring people, vehicles and activity around your premises.
Choose recording settings to suit the scene, available storage and recorder bandwidth. H.265+ and H.265 compression help manage bandwidth and storage use when supported by the connected equipment.
2.8-12mm Motorised Varifocal Lens
This Hikvision motorised varifocal IP camera offers a horizontal field of view from approximately 105.4° at 2.8mm to 34.3° at 12mm. Adjust the lens remotely to balance broad coverage with a closer view of the area that matters most.
The camera’s physical direction is set using its mounting bracket. Motorised lens adjustment changes the viewing angle within that position.
Powered-by-DarkFighter Low-Light Imaging
This Hikvision DarkFighter bullet camera combines a 1/3-inch progressive scan CMOS sensor with an F1.0 aperture. Colour minimum illumination is specified at 0.001 lux with AGC enabled, helping retain useful colour detail as available light falls.
When the camera switches to infrared night mode, it records black-and-white images. The built-in IR cut filter supports switching between daytime and night-time operation.
Smart IR Night Vision up to 60 Metres
Integrated 850nm infrared illumination provides a specified range of up to 60m. Smart Supplement Light adjusts illumination to suit the scene and helps limit excessive brightness on nearby subjects.
Actual viewing detail depends on the lens setting, mounting position, target distance and surroundings. Set the camera angle to avoid nearby surfaces reflecting infrared light directly into the lens.
Human and Vehicle Classification
Deep-learning detection supports alarm triggering for human and vehicle targets. Suitable configuration helps reduce unnecessary alerts caused by less relevant movement.
Perimeter functions include line crossing, intrusion, region entrance and region exit detection. Face capture is also supported for capturing face images.
External Audio and Alarm Connections
The camera provides one line-level audio input and one line-level audio output for compatible external equipment. It also includes one alarm input and one alarm output for integration with suitable external devices.
There is no built-in microphone or speaker. External audio equipment is required for audio recording or playback.
120dB WDR and Flexible Recording
120dB Wide Dynamic Range helps balance bright backgrounds and shaded subjects in the same scene. Backlight compensation, highlight compensation and 3D noise reduction provide further image adjustments.
Record through a compatible NVR or use a microSD card up to 512GB for local storage. NAS storage and Automatic Network Replenishment are also supported. Recording equipment and storage media are sold separately.
IP67 and IK10 Outdoor Protection
The metal front cover, body and bracket provide a robust housing. IP67 water and dust resistance and IK10 impact resistance support suitable outdoor installations around entrances, car parks and commercial premises.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-2CD2646G2H-IZS |
| Camera Type | 4MP AcuSense motorised varifocal bullet IP camera |
| Available Colours | Black or White; select when ordering |
| Image Sensor | 1/3-inch progressive scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Frame Rate at Full Resolution | Up to 25fps at 50Hz or 30fps at 60Hz, at 2688 × 1520 |
| Lens | 2.8-12mm motorised varifocal |
| Aperture | F1.0 |
| Horizontal Field of View | 105.4° to 34.3° |
| Vertical Field of View | 56.1° to 19.3° |
| Diagonal Field of View | 125.8° to 39.4° |
| Minimum Illumination | Colour: 0.001 lux at F1.0 with AGC on; black-and-white: 0 lux with IR |
| Low-Light Technology | Powered-by-DarkFighter |
| Shutter Speed | 1/3 second to 1/100,000 second |
| Day and Night | IR cut filter; day, night, automatic and scheduled switching |
| Supplementary Lighting | Infrared, 850nm; Smart Supplement Light supported |
| IR Range | Up to 60m |
| Wide Dynamic Range | 120dB WDR |
| Image Enhancement | BLC, HLC and 3D DNR |
| Privacy Masking | 4 programmable polygon privacy masks |
| Target Classification | Human and vehicle classification based on deep learning |
| Perimeter Protection | Line crossing, intrusion, region entrance and region exit detection |
| Face Capture | Supported |
| Smart Event | Scene change detection |
| Audio Connections | 1 line input and 1 line output; external audio equipment required |
| Built-In Microphone and Speaker | No |
| Alarm Connections | 1 input and 1 output; output maximum 24V DC / 24V AC, 1A |
| Main-Stream Compression | H.265+, H.265, H.264+ and H.264 |
| Video Bit Rate | 32Kbps to 8Mbps |
| Local Storage | microSD, microSDHC or microSDXC up to 512GB; card sold separately |
| Network Storage | NAS using NFS or SMB/CIFS; Automatic Network Replenishment support |
| Ethernet | 1 × RJ45 10/100Mbps self-adaptive port |
| Interoperability | ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Client Software | Hik-Connect, iVMS-4200 and Hik-Central |
| PoE Power | IEEE 802.3at PoE+, Class 4; maximum 18W |
| DC Power | 12V DC ±25%, 1.21A; maximum 14.5W |
| Weather Protection | IP67 |
| Impact Resistance | IK10 |
| Corrosion Protection | No specific corrosion protection, as classified by Hikvision |
| Construction | Metal front cover, body and bracket |
| Manual Angle Adjustment | Pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° to 360° |
| Operating Conditions | -30°C to +60°C; humidity 95% or less, non-condensing |
| Dimensions | 140mm diameter × 333.8mm length |
| Weight | Approximately 1490g |
| Optional Corner Mount | Hikvision DS-1476ZJ-SUS; sold separately |
Official Datasheet
View the Hikvision DS-2CD2646G2H-IZS datasheet for the full manufacturer specification, dimensions and optional mounting accessories.
View DS-2CD2646G2H-IZS Datasheet
What’s Included
- 1 × Hikvision DS-2CD2646G2H-IZS 4MP bullet IP camera with 2.8-12mm motorised varifocal lens and integral mounting bracket.
Select Black or White when ordering. The optional corner mount, recorder, storage, network cable, monitor, power equipment and external audio or alarm devices are sold separately.
Ideal For
- Driveways, entrances and vehicle access points.
- Shops, offices and commercial premises.
- Warehouses, yards and loading areas.
- Car parks, forecourts and building perimeters.
- Installations needing an adjustable viewing angle and impact-resistant housing.
Installation & Compatibility
Connect this Hikvision motorised varifocal IP camera through its wired RJ45 Ethernet port. For power over Ethernet, use an IEEE 802.3at PoE+ source capable of supplying the camera’s maximum 18W requirement. Check both the power available per port and the total power budget when connecting several cameras.
Alternatively, use a suitable 12V DC supply; maximum DC consumption is 14.5W. Set the camera’s direction with its integral bracket, then adjust the lens remotely to refine the view. Hikvision lists the DS-1476ZJ-SUS corner mount as an optional accessory for this model.
Use suitable fixings and protect exposed cable connections against the weather. Choose a recorder that supports the camera’s resolution, recording settings and intended intelligent functions. Remote viewing through Hik-Connect requires an internet connection and appropriate configuration.
Complete Your Installation
These separately available products can help complete your CCTV system. Confirm recorder compatibility and PoE+ power capacity for the full installation before ordering.
- Hikvision DS-7604NXI-K1/4P 4-Channel PoE NVR: A recorder option for a smaller IP camera system; check support for the required functions and sufficient power for all connected cameras.
- 20m Outdoor CAT5 Solid Copper Network Cable: A ready-made RJ45 cable for connection to compatible network or PoE+ equipment.
- Uniview MW3222-V-DT CCTV Monitor: A display option for viewing a compatible recorder’s video output.
- Hikvision DS-1476ZJ-SUS Corner Mount: An optional stainless steel bracket listed by Hikvision for corner installation of this camera.
