Description
- ✓
4MP 2688 × 1520 ColorVu 3.0 bullet IP camera - ✓
2.8mm wide-angle fixed lens – 111.1° horizontal view - ✓
F1.0 super aperture for excellent low-light performance - ✓
Smart Hybrid Light – IR + white light up to 40 metres - ✓
Human & vehicle classification using deep learning - ✓
Built-in arrayed dual microphones for audio recording - ✓
130dB WDR & H.265+ video compression - ✓
microSD card support up to 512GB - ✓
IEEE 802.3af Class 3 PoE - ✓
IP67 & NEMA 4X protection – White housing

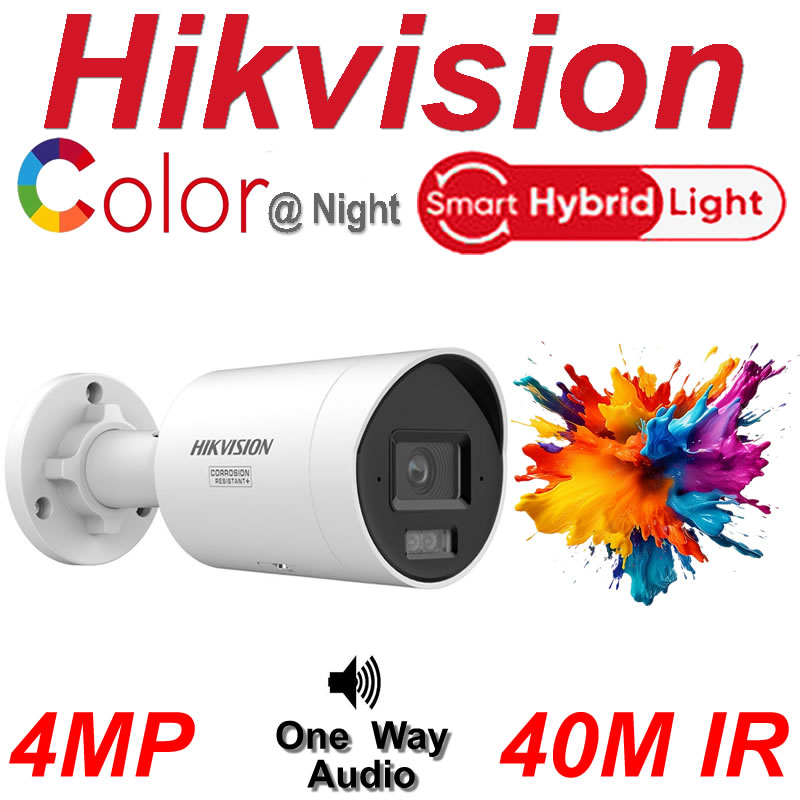

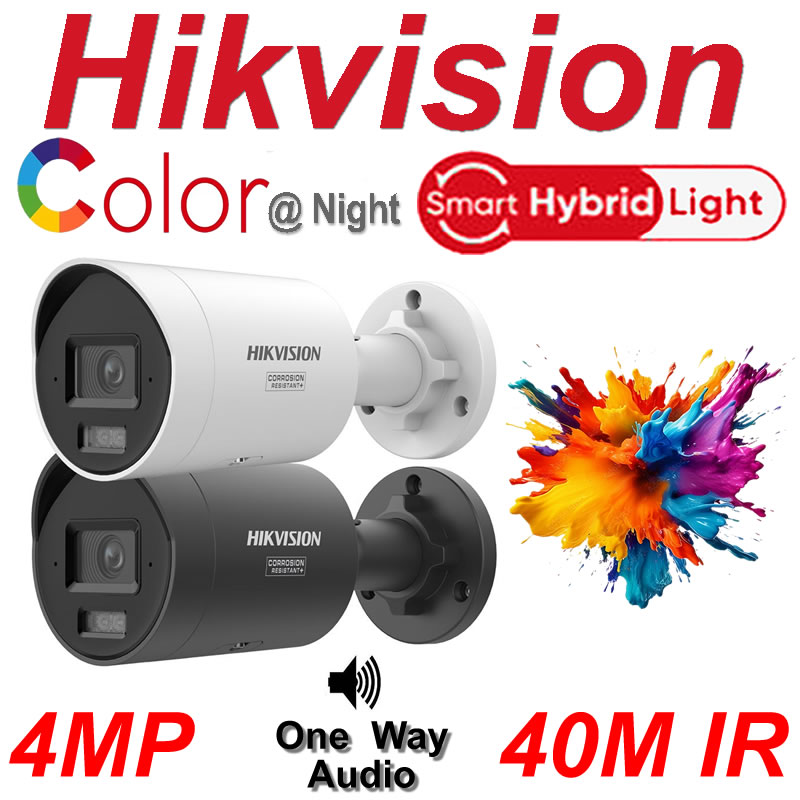

Hikvision DS-2CD2047G3-LI2UY 4MP ColorVu 3.0 Smart Hybrid Light 2.8mm Bullet IP Camera
The Hikvision DS-2CD2047G3-LI2UY is a professional
4MP ColorVu 3.0 bullet IP camera designed for residential,
commercial and perimeter CCTV installations where detailed colour imaging,
intelligent detection and reliable outdoor performance are required.
This stocked version uses a 2.8mm fixed wide-angle lens
providing approximately 111.1° horizontal field of view
and is supplied in a White housing.
For customers looking for a Hikvision 4MP ColorVu camera,
this model combines a large F1.0 aperture with Smart Hybrid Light,
human and vehicle classification and built-in arrayed dual microphones.
It is suitable for driveways, entrances, shops, offices, warehouses,
yards, car parks and other locations where clear day and night CCTV
coverage is important.
Key Features
- 4MP resolution up to 2688 × 1520
- 1/1.8″ Progressive Scan CMOS sensor
- ColorVu 3.0 technology
- HikAI-ISP advanced image processing
- 2.8mm fixed lens
- 111.1° horizontal field of view
- F1.0 super aperture
- Colour minimum illumination down to 0.0001 Lux
- Smart Hybrid Light with IR and white light
- Supplement lighting range up to 40 metres
- 3 supplemental lighting modes
- Human and vehicle classification based on deep learning
- Face capture support
- Line crossing and intrusion detection
- Region entrance and region exiting detection
- Built-in arrayed dual microphones
- 130dB WDR
- H.265+ video compression
- microSD card support up to 512GB
- IEEE 802.3af Class 3 PoE
- IP67 weather protection
- NEMA 4X anti-corrosion protection
- Metal camera body and bracket
- White housing
ColorVu 3.0 Low-Light Imaging
Hikvision ColorVu technology is designed to produce bright, detailed
colour images in difficult lighting conditions.
The DS-2CD2047G3-LI2UY uses a large F1.0 aperture
together with a high-performance 1/1.8″ image sensor to collect more
available light.
This helps preserve useful colour information such as clothing,
vehicles and other scene details as ambient lighting becomes lower.
Smart Hybrid Light – IR & White Light up to 40 Metres
This Hikvision Smart Hybrid Light camera integrates
both infrared and white supplementary lighting.
The camera supports three supplemental lighting modes
and provides a lighting range of up to approximately
40 metres.
Smart Hybrid Light gives installers greater flexibility when configuring
night-time surveillance compared with a conventional IR-only camera.
2.8mm Wide-Angle Lens
The stocked version uses a 2.8mm fixed lens providing
approximately 111.1° horizontal, 57.6° vertical and 138.5°
diagonal field of view.
This wide viewing angle makes the camera suitable for entrances,
driveways, building exteriors, shops, yards and general wide-area
CCTV monitoring.
Human & Vehicle Classification
Built-in deep-learning technology allows supported detection events
to classify specified targets as human or vehicle.
This can help reduce unnecessary alerts caused by less relevant movement
when the smart detection functions are correctly configured.
Supported perimeter protection functions include line crossing,
intrusion detection, region entrance and region exiting detection.
Built-In Arrayed Dual Microphones
The DS-2CD2047G3-LI2UY incorporates
built-in arrayed dual microphones for real-time audio
capture alongside recorded video.
This is useful where video with accompanying environmental audio is
required without fitting a separate external microphone.
Please note: this model has built-in microphones for
audio recording but does not include the built-in speaker and two-way
audio functions found on selected /SL versions.
130dB Wide Dynamic Range
Built-in 130dB WDR helps maintain useful detail in scenes
containing both bright and dark areas.
This can be particularly useful around entrances, doorways, shop fronts
and other areas affected by strong sunlight or backlighting.
Local microSD Recording up to 512GB
The built-in memory card slot supports
microSD, microSDHC and microSDXC cards up to 512GB.
This provides local edge-recording capability alongside recording to a
compatible Hikvision NVR or supported network storage system.
Compact Metal Bullet Camera
As a compact Hikvision bullet IP camera, the
DS-2CD2047G3-LI2UY uses a metal front cover, metal body and metal mounting
bracket.
Its IP67 weather resistance and NEMA 4X anti-corrosion rating make it
suitable for a wide range of indoor and outdoor CCTV installations.
Technical Specifications
| Manufacturer | Hikvision |
| Model | DS-2CD2047G3-LI2UY |
| Camera Type | 4MP ColorVu Smart Hybrid Light Bullet Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Lens | 2.8mm Fixed Lens |
| Horizontal Field of View | 111.1° |
| Vertical Field of View | 57.6° |
| Diagonal Field of View | 138.5° |
| Aperture | F1.0 |
| Minimum Illumination | Colour: 0.0001 Lux @ F1.0, AGC ON / 0 Lux with light |
| Supplement Light | Infrared + White Light |
| Supplement Light Distance | Up to 40 metres |
| IR Wavelength | 850nm |
| Intelligent Detection | Human and Vehicle Classification |
| Perimeter Protection | Line Crossing, Intrusion, Region Entrance & Region Exiting |
| Face Capture | Supported |
| Built-In Audio | Arrayed Dual Microphones |
| Two-Way Audio | No Built-In Speaker |
| Wide Dynamic Range | 130dB WDR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Local Storage | microSD / microSDHC / microSDXC up to 512GB |
| Network Connection | RJ45 10/100 Mbps Ethernet |
| PoE | IEEE 802.3af Class 3, maximum 6.5W |
| 12V DC Power | 12V DC ±25%, maximum 4.8W |
| Weather Protection | IP67 |
| Anti-Corrosion Rating | NEMA 4X |
| Material | Metal Front Cover, Body & Bracket |
| Dimensions | Ø74.4 × 176.3mm |
| Weight | Approx. 530g |
| Colour | White |
Official Hikvision Datasheet
View the official Hikvision DS-2CD2047G3-LI2UY datasheet for the complete
manufacturer specification.
What’s Included
- 1 × Hikvision DS-2CD2047G3-LI2UY 4MP ColorVu Bullet IP Camera
Ideal For
- Homes and residential CCTV
- Driveways and entrances
- Shops and retail premises
- Offices and commercial buildings
- Warehouses and industrial units
- Car parks and forecourts
- Building perimeters
- Yards and loading areas
- Installations requiring built-in audio recording
Installation & Compatibility
The Hikvision DS-2CD2047G3-LI2UY connects using a standard
RJ45 Ethernet connection and supports
IEEE 802.3af Class 3 PoE.
It can therefore be powered from a compatible Hikvision PoE NVR or
suitable PoE network switch.
For recording, remote viewing and supported intelligent functions,
use the camera with compatible Hikvision equipment and Hik-Connect.
The 2.8mm wide-angle lens is particularly suitable
for entrances, driveways, building fronts and other areas where broad
scene coverage is required.
Complete Your Installation
1. Hikvision 4-Channel PoE NVR
Hikvision DS-7604NXI-K1/4P Network Video Recorder
2. Compatible Hikvision Junction Box
Hikvision DS-1280ZJ-XS Junction Box
3. 20m Outdoor CAT5 Network Cable
20m Outdoor CAT5 Solid Copper Network Cable
4. CCTV Monitor
Uniview MW3222-V-DT CCTV Monitor
Need Help With the Hikvision DS-2CD2047G3-LI2UY?
If you need help checking NVR compatibility, selecting the correct
mounting accessory or planning your CCTV installation, contact our team
before ordering.
