Hikvision 4K 8MP CCTV Kit with Two-Way Audio & AcuSense DVR | Up to 16 Cameras

£110.00 ex. VAT - £132.00 inc. VAT

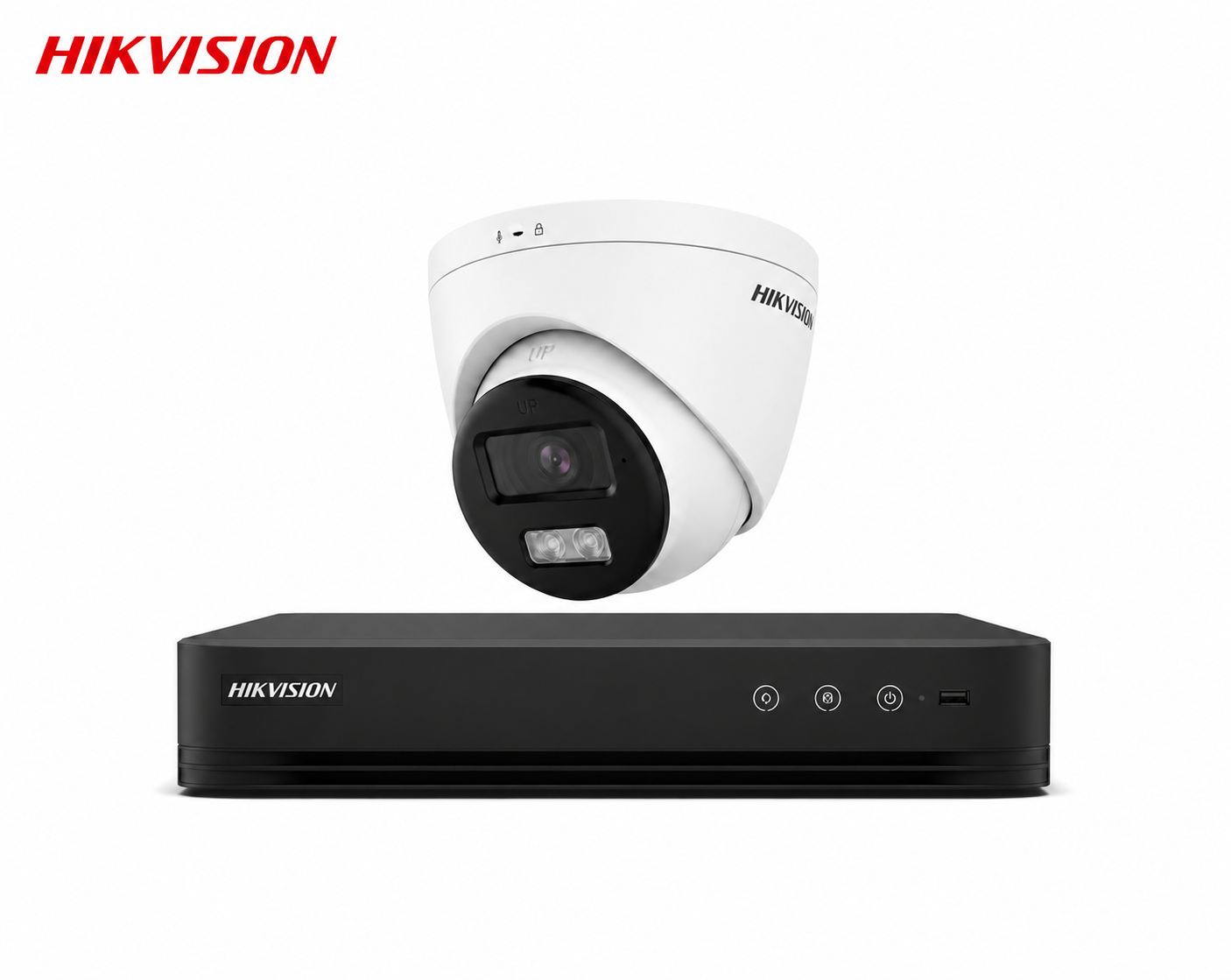

Hikvision 4K 8MP Turbo HD CCTV Kit with DS-2CE78U0T-LTS cameras, Two-Way Audio, Smart Hybrid Light, AcuSense DVR and optional storage. Available with up to 16 cameras.

Description

Hikvision 4K 8MP Turbo HD CCTV Kit Overview

The Hikvision 4K 8MP Turbo HD CCTV Kit is a professional surveillance system available with up to 16 cameras, Hikvision AcuSense DVR options and optional storage up to 8TB.

This configurable wired security system uses genuine
Hikvision DS-2CE78U0T-LTS 8MP fixed turret cameras.
Each camera features a wide-angle 2.8mm lens, Smart Hybrid Light technology, a built-in microphone and speaker, and compatible two-way audio over coax.

The included Hikvision AcuSense DVR uses intelligent human and vehicle classification to help reduce unnecessary alerts caused by non-target movement. Live viewing, recorded playback and supported notifications can also be accessed remotely through the Hik-Connect app when the recorder is connected to the internet.

Suitable for homes, shops, offices, warehouses and other commercial premises, this flexible system can be configured for anything from a small entrance-monitoring setup to a complete 16-camera installation.

Configure your CCTV system:

  • Choose the number of Hikvision 8MP turret cameras required
  • Select a 4, 8 or 16-channel Hikvision AcuSense DVR
  • Choose optional surveillance storage up to 8TB
  • All cameras are supplied with a 2.8mm fixed wide-angle lens

What’s Included?

Your CCTV kit is assembled according to the camera quantity, DVR and storage options selected when ordering.

  • Selected quantity of genuine
    Hikvision DS-2CE78U0T-LTS 8MP turret cameras
  • Selected Hikvision 4, 8 or 16-channel AcuSense DVR
  • One 18m combined BNC video and power cable for each selected camera
  • Matched camera power supply or power-distribution equipment
  • 1 × HDMI cable for connecting the DVR to a compatible monitor or television
  • USB mouse for local DVR operation
  • Optional surveillance hard drive, professionally installed when selected
Please note:
The exact DVR, cable quantity, power equipment and storage supplied depend on the options selected when ordering.
A monitor, internet router, junction boxes and professional installation are not included unless expressly stated.

Recommended Junction Box

For a cleaner and more professional camera installation, we recommend using the genuine


Hikvision DS-1280ZJ-TR13 Junction Box

.

The junction box provides space for cable connections behind the camera and helps create a neater installation on suitable walls and ceilings.
Compatibility and installation suitability should be checked before ordering.

Why Choose This Hikvision CCTV Kit?

Crystal-Clear 8MP 4K Video

The Hikvision DS-2CE78U0T-LTS produces video at up to
3840 × 2160 resolution.
The increased image detail can make it easier to review faces, vehicles, clothing and activity around your property.

Smart Hybrid Light Technology

Smart Hybrid Light gives you a choice of infrared, white-light or intelligent lighting modes.
Infrared provides discreet monochrome monitoring, while white light enables colour imaging in darkness and visibly illuminates the monitored area.

The camera provides infrared and white-light illumination at distances of up to approximately 40 metres under suitable installation conditions.
Actual performance depends on the environment, mounting position, weather, reflective surfaces and available ambient light.

Built-In Two-Way Audio

Each camera includes a built-in microphone and 2W speaker, supporting compatible two-way communication through the same coaxial connection used for video.

This allows you to listen and speak through the system when it is correctly connected to a compatible Hikvision DVR and configured for remote access.
It can be useful for greeting visitors, providing instructions or verbally challenging unwanted activity.

AcuSense Human and Vehicle Detection

Hikvision AcuSense technology uses deep-learning algorithms to classify people and vehicles.
This helps reduce unwanted event notifications caused by movement such as foliage, changing light and other non-target activity.

Motion Detection 2.0

Motion Detection 2.0 helps classify recorded events as human or vehicle activity on supported analogue channels.
This can make event searches more useful and reduce the time required to review recorded footage.

Remote Viewing with Hik-Connect

Connect the DVR to a suitable broadband router and use the Hik-Connect app for compatible live viewing, recorded playback and supported notifications on smartphones and tablets.

Remote access depends on a suitable internet connection, correct network configuration, app compatibility and sufficient upload and download speed.

Efficient H.265 Pro+ Recording

H.265 Pro+ video compression helps reduce storage and bandwidth requirements compared with older compression formats.
Recording duration will depend on the number of cameras, selected resolution, frame rate, bitrate, motion activity and recording schedule.

Suitable for Indoor and Outdoor Use

The cameras feature an IP67 weather-resistance rating, making them suitable for properly installed indoor and outdoor surveillance applications.

Expandable up to 16 Cameras

Choose the number of cameras required for your current installation and select a recorder with enough channels for the complete system.
A DVR with spare channels may also allow more cameras to be added later.

Ideal for Homes and Businesses

Residential Security

  • Houses and flats
  • Front doors and entrances
  • Driveways
  • Front and rear gardens
  • Garages and workshops
  • Side passages
  • Outbuildings

Commercial Security

  • Retail shops
  • Offices and reception areas
  • Warehouses
  • Industrial units
  • Restaurants and cafés
  • Farms and yards
  • Car parks and perimeter areas

The 2.8mm lens provides a broad field of view, making these cameras particularly suitable for entrances, driveways, rooms, shop floors and other locations where wide scene coverage is required.

Discover the Hikvision DS-2CE78U0T-LTS Camera

8MP CMOS Image Sensor

The camera uses a 4K CMOS image sensor and provides a maximum output resolution of 3840 × 2160.
The camera can output 8MP HDTVI video at up to 12.5fps in PAL mode.
The final recording frame rate is determined by the selected DVR, channel and recording configuration.

2.8mm Wide-Angle Fixed Lens

The 2.8mm fixed lens provides an approximate horizontal field of view of
113°, a vertical field of view of 62° and a diagonal field of view of 134°.

This wide field of view makes the camera well suited to general surveillance where broad coverage is more important than narrow long-distance identification.

Infrared and White-Light Illumination

The camera supports Smart, infrared and white-light illumination modes.
Both the infrared and white-light ranges are rated at up to approximately 40 metres under suitable conditions.

Built-In Microphone and Speaker

A built-in microphone records compatible audio through the coaxial connection, while the integrated 2W speaker enables supported two-way communication.

The specified microphone pickup and speaker range is up to approximately five metres under suitable conditions.
Echo cancellation, AI noise reduction and automatic gain control help improve communication quality.

Flexible Turret Adjustment

The turret camera design allows flexible positioning during installation, with 360° pan, up to 75° tilt and 360° rotation adjustment.

Image Enhancement

Digital WDR, backlight compensation, highlight compensation, Smart IR and digital noise reduction help improve image usability in challenging lighting conditions.

IP67 Weather Resistance

The IP67-rated housing protects the camera against dust and water when correctly installed, making it suitable for year-round indoor and outdoor use.

Powerful AcuSense Recording and AI Detection

4-Channel DVR – iDS-7204HUHI-M1/XT

The 4-channel DVR is suitable for systems containing up to four analogue cameras.
It includes one SATA hard-drive bay and supports compatible HDTVI two-way audio on all analogue channels.

  • 4 analogue BNC camera inputs
  • Suitable for systems with up to 4 analogue cameras
  • One SATA hard-drive bay
  • Motion Detection technology on analogue channels
  • Up to 4-channel perimeter protection
  • Up to 2-channel facial-recognition comparison
  • Up to 4-channel AcuSearch support
  • HDMI and VGA monitor outputs
  • H.265 Pro+ compression
  • Hik-Connect remote-access support

8-Channel DVR – iDS-7208HUHI-M1/XT

The 8-channel DVR is suited to medium-sized residential and commercial installations.
It supports up to eight analogue cameras and includes one SATA hard-drive bay.

  • 8 analogue BNC camera inputs
  • Suitable for systems with up to 8 analogue cameras
  • One SATA hard-drive bay
  • Motion Detection 2.0 on supported analogue channels
  • Up to 8-channel perimeter protection
  • Up to 4-channel facial-recognition comparison
  • Up to 8-channel AcuSearch support
  • 4K HDMI and VGA monitor outputs
  • H.265 Pro+ compression
  • Hik-Connect remote-access support

16-Channel DVR – iDS-7216HUHI-M2/XT

The 16-channel DVR is designed for larger residential, retail and commercial CCTV installations.
It supports up to 16 analogue cameras and includes two SATA hard-drive bays for increased storage flexibility.

  • 16 analogue BNC camera inputs
  • Suitable for systems with up to 16 analogue cameras
  • Two SATA hard-drive bays
  • Motion Detection 2.0 on supported analogue channels
  • Up to 8-channel perimeter protection
  • Up to 4-channel facial-recognition comparison
  • Up to 8-channel AcuSearch support
  • 4K HDMI and VGA monitor outputs
  • 16-channel synchronous playback
  • H.265 Pro+ compression
  • Hik-Connect remote-access support

Recorder selection guide:

  • 1–4 cameras: choose a 4, 8 or 16-channel DVR
  • 5–8 cameras: choose an 8 or 16-channel DVR
  • 9–16 cameras: choose the 16-channel DVR

AcuSearch Technology

AcuSearch can help operators locate footage involving a selected person or vehicle more quickly on supported channels.
Availability and channel limits depend on the DVR model, connected cameras, active smart features and system configuration.

Perimeter Protection

Supported perimeter rules can be configured for applications such as line-crossing and intrusion detection.
The number of available channels varies according to the selected recorder and active AI functions.

Smart-feature note:
Advanced analytics may share recorder processing resources.
The number of simultaneously available AI channels can vary according to the DVR, firmware, recording settings and selected smart functions.

Video, Audio and Remote Viewing

Video over Coaxial Cable

The cameras connect to the DVR using BNC coaxial video cabling.
A separate 12V DC power connection is also required for each camera.
Combined video-and-power cables are included according to the camera quantity selected.

Two-Way Audio over Coax

The DS-2CE78U0T-LTS transmits compatible video and audio through its coaxial connection.
Its built-in microphone and speaker can provide two-way communication without a separate camera audio cable when used with compatible Hikvision equipment.

Local Monitor Connection

The DVR can be connected to a compatible monitor or television using HDMI or VGA.
The 8 and 16-channel DVRs support a 4K HDMI display output, while the 4-channel model supports HDMI output up to 2560 × 1440.

Hik-Connect Mobile Access

After the DVR has been connected to a suitable internet router and correctly configured, Hik-Connect can provide remote live viewing, recorded playback and supported event notifications.

Mobile data charges may apply when viewing the CCTV system away from a Wi-Fi connection.

Complete Your CCTV Installation

Depending on your property and cable routes, you may also require additional installation accessories.



  • Hikvision DS-1280ZJ-TR13 Junction Box


    for compatible Hikvision turret-camera installations
  • Additional BNC video and power cables
  • Weather-resistant cable-entry accessories
  • CCTV warning signs
  • A compatible monitor or television
  • Network cable for connecting the DVR to your router
  • Camera wall, pole or corner-mounting accessories
  • Uninterruptible power-supply equipment

Check all cable routes and required cable lengths before ordering.
Extensions, junction boxes and mounting accessories should be selected according to the camera position and installation surface.

Technical Specifications

Hikvision DS-2CE78U0T-LTS Camera

Camera modelDS-2CE78U0T-LTS
Camera typeFixed turret HDTVI camera
Image sensor4K CMOS
Maximum resolution3840 × 2160
Lens2.8mm fixed lens
Field of viewHorizontal 113°, vertical 62°, diagonal 134°
Minimum illumination0.01 lux at F1.6 with AGC on; 0 lux with white light
Supplementary lightingSmart, infrared and white light
Lighting distanceUp to 40m infrared and up to 40m white light
AudioBuilt-in microphone, built-in 2W speaker and two-way audio
Audio processingEcho cancellation, AI noise reduction and automatic gain control
Microphone and speaker rangeUp to approximately 5m under suitable conditions
Image enhancementDigital WDR, BLC, HLC, Smart IR and 2D DNR
Power12V DC ±25%, maximum 6.8W
ConstructionMetal main body with plastic enclosure
Weather ratingIP67
Operating temperature−40°C to 60°C
DimensionsØ110 × 102.7mm
WeightApproximately 375g

DVR Comparison

Specification4-Channel DVR8-Channel DVR16-Channel DVR
ModeliDS-7204HUHI-M1/XTiDS-7208HUHI-M1/XTiDS-7216HUHI-M2/XT
Analogue channels4816
Maximum recording resolutionUp to 8MPUp to 8MPUp to 8MP
8MP encoding rateUp to 8fps on channel 1Up to 8fpsUp to 8fps
HDD bays1 SATA1 SATA2 SATA
Storage offered with this kitUp to 8TBUp to 8TBUp to 8TB
CompressionH.265 Pro+H.265 Pro+H.265 Pro+
HDTVI two-way audioAll analogue channelsAll analogue channelsAll analogue channels
Remote viewingHik-ConnectHik-ConnectHik-Connect

Product Downloads and Documentation

Frequently Asked Questions

Is this a genuine Hikvision CCTV system?

Yes. The kit uses genuine Hikvision DS-2CE78U0T-LTS cameras and a matching Hikvision iDS-72xxHUHI/XT AcuSense DVR.

Does the camera support two-way audio?

Yes. The camera includes a built-in microphone and speaker and supports compatible two-way audio over coax when used with the DVRs offered in this kit.

Is this a ColorVu camera?

No. The DS-2CE78U0T-LTS is a Smart Hybrid Light camera.
It supports infrared and white-light illumination and can provide colour images using its white-light mode, but it should not be described as a ColorVu model.

Can I view the cameras remotely?

Yes. Connect the DVR to a suitable internet router and configure Hik-Connect to access compatible live viewing, playback and supported notifications remotely.

Which DVR should I choose?

Choose a 4-channel DVR for up to four cameras, an 8-channel DVR for up to eight cameras, or a 16-channel DVR for up to sixteen cameras.
You may choose a larger DVR if you want spare channels for future expansion.

Can I add more cameras later?

Yes, provided the selected DVR has unused analogue camera inputs and the additional cameras are compatible with the recorder.

Does the kit include a hard drive?

A hard drive is included only when a storage option is selected.
The kit can be ordered without storage or with an available surveillance hard drive up to 8TB.

How long will the hard drive record?

Recording time depends on camera quantity, resolution, frame rate, bitrate, compression settings, motion activity and whether the system records continuously or only during events.

Are the cameras suitable for outdoor use?

Yes. The cameras have an IP67 weather-resistance rating and are suitable for correctly installed indoor and outdoor applications.

Does the kit record full-frame-rate 4K video?

No. The cameras output 8MP HDTVI video at up to 12.5fps in PAL mode, while the DVRs encode 8MP recordings at up to 8fps.
A lower recording resolution may provide a higher frame rate where supported.

Can I use network cable instead of BNC cable?

This is a Turbo HD analogue system designed for BNC coaxial video connections rather than direct PoE network-camera connections.
Combined BNC video and power cables are supplied according to the selected camera quantity.

Does the kit include the junction boxes?

Junction boxes are not included unless expressly stated.
For compatible installations, you can order them separately.

Hikvision DS-1280ZJ-TR13 Junction Box

Why Buy From AAA CCTV?

  • Genuine Hikvision equipment
  • Flexible CCTV systems configured for your property
  • Matched cameras, DVR, cables and power equipment
  • Optional surveillance storage installed when selected
  • UK-based sales and technical support
  • Specialist CCTV product knowledge
  • Pre-sales compatibility advice
  • Support before and after purchase

Warranty and Support

This system is supplied with the warranty stated on the product page and order documentation.
Warranty cover is subject to the retailer’s terms, correct installation, suitable power and normal operating conditions.

AAA CCTV can provide assistance with:

  • Choosing the correct camera quantity
  • Selecting a suitable DVR
  • Estimating storage requirements
  • Checking camera and recorder compatibility
  • Planning residential and commercial systems
  • Basic setup and configuration guidance

Need Help Choosing Your CCTV Kit?

Speak to Our CCTV Specialists

Contact us for help selecting the correct camera quantity, DVR capacity, storage size, cable lengths, junction boxes and installation accessories for your home or business.

Sales and Technical Support:
0161 944 1922

Mobile and WhatsApp:
07305 398061


Please have details of your property, intended camera positions and approximate cable distances available so we can recommend the most suitable system.

Additional information

Brand

Megapixel

8MP

Compression

Lens

2.8mm

IR Distance

IP Rating

Max. Resolution

3840 × 2160

Delivery & Returns

At Discount CCTV Supplier, we specialise in delivering high-quality, cost-effective Security systems tailored to meet the unique security needs of our clients. With a proven track record and a commitment to innovation, we believe our offerings align seamlessly with the mission and values of Discount CCTV Supplier.
Diverse Product Range
Our extensive product portfolio ensures that Discount CCTV Supplier can cater to a broad spectrum of customer requirements, from basic surveillance needs to more advanced security solutions.
Please note that you have the option to return new, unused items within 30 days of delivery for a refund. However, please be aware that a postage cost of £8.50 plus VAT for Maniland shipment and £15 Plus VAT from shipments to Northern Ireland. Will be deducted from the refunded amount.

TrustPilot

Excellent

Trustpilot rating
Rated 4.8 out of 5 based on 80 reviews
Trustpilot Trustpilot
Rating 5 stars
By SAI-COM LTD Manish

about 3 months ago

Prompt service

Very helpful

Rating 5 stars
By Darran Stevenson

about 3 months ago

Quick and reliable

Quick and reliable

Rating 5 stars
By Vitalii Boiciuc

about 3 months ago

very happy with the purchase

very good services

Rating 5 stars
By Chris Honeysett

about 9 months ago

Helpful 5 star service

Helpful 5 star service

Rating 5 stars
By Little Feet

about 12 months ago

⭐️⭐️⭐️⭐️⭐️

⭐️⭐️⭐️⭐️⭐️ Excellent service from start to finish! The CCTV system was installed quickly and works perfectly. Director Thulash was professional, approachable, and made sure everything was tailored to our needs. Highly recommend this company for reliable security solutions. Have used the services for all our homes as we are a care home company.

Rating 5 stars
By ceyhan durmush

about 1 year ago

Always a pleasure

Always a pleasure
