Description

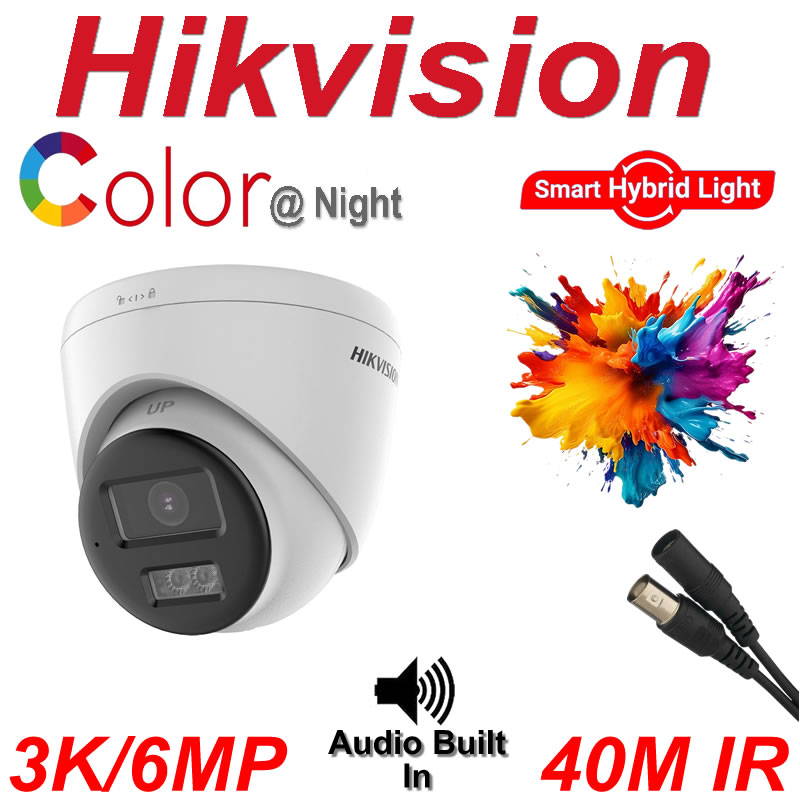

Hikvision DS-2CE72KF0T-LFS 3K ColorVu Smart Hybrid Light Turret Camera
The Hikvision DS-2CE72KF0T-LFS is a
3K ColorVu turret CCTV camera combining high-resolution
imaging, Smart Hybrid Light technology and a built-in microphone for
audio recording through compatible Hikvision DVRs.
Featuring a bright F1.0 aperture, 2.8mm fixed lens,
up to 40m infrared and 40m white-light
illumination, the camera is designed to provide clear CCTV
footage both during the day and at night.
Key Features
- 3K high-resolution imaging – 2960 × 1665
- ColorVu technology with F1.0 aperture
- 24/7 colour imaging
- 2.8mm fixed focal lens
- 105° horizontal viewing angle
- Smart Hybrid Light technology
- Up to 40m infrared illumination
- Up to 40m white-light illumination
- Built-in microphone with audio over coax
- TVI / AHD / CVI / CVBS switchable output
- Digital WDR and 2D noise reduction
- IP67 weather-resistant housing
3K High-Resolution CCTV Imaging
The DS-2CE72KF0T-LFS provides up to
2960 × 1665 resolution at 20fps through its TVI output,
providing significantly more detail than conventional 1080p analogue
CCTV cameras.
The camera also supports 4MP and 1080p output at 25/30fps. The final
recording resolution and frame rate depend on the connected DVR.
ColorVu 24/7 Colour Imaging
Hikvision ColorVu technology uses a large
F1.0 aperture to capture more available light, helping
the camera maintain colour images in very low-light conditions.
Minimum illumination is rated at 0.001 Lux with AGC
enabled and 0 Lux when using the integrated white light.
Smart Hybrid Light
Smart Hybrid Light provides flexible night-time
illumination using infrared and white light. This allows the camera
to provide discreet black-and-white infrared monitoring or use its
white light when colour night-time footage is required.
Both infrared and white-light illumination have a range of up to
40 metres. Actual night-time performance depends on
the installation, available ambient light and surrounding surfaces.
Built-In Microphone & Audio Over Coax
The camera includes a built-in microphone with a
pickup radius of up to approximately 5 metres. Audio can be transmitted
along the same coaxial cable as the video when connected to a compatible
audio-over-coax DVR.
This model provides audio recording only. It does not
have a built-in speaker and therefore does not provide two-way audio.
2.8mm Wide-Angle Lens
The 2.8mm fixed lens provides a wide
105° horizontal field of view, making it suitable for
entrances, driveways, shops, offices and general-purpose CCTV coverage.
Four Switchable Video Formats
The DS-2CE72KF0T-LFS supports
TVI, AHD, CVI and CVBS video output, providing useful
compatibility when upgrading existing analogue CCTV installations.
The maximum available resolution varies according to the selected
video format and the capabilities of the connected DVR.
IP67 Weather-Resistant Housing
The camera has an IP67 protection rating and a metal
main body, making it suitable for indoor and outdoor installations.
External cable joints and connectors should still be properly protected
against moisture.
DVR Compatibility & Installation
This is an HD analogue CCTV camera. It requires a
compatible DVR and cannot be connected directly to an IP NVR.
The camera requires a 12V DC power supply.
For microphone audio recording, the connected DVR must support
audio over coax. Check the DVR’s supported camera
resolution, recording resolution and audio capabilities when upgrading
an existing CCTV system.
Hikvision recommends using one suitable power adapter per camera.
If a shared power supply is used, check the combined power requirement,
cable length and voltage drop before installation.
Technical Specifications
| Brand | Hikvision |
| Model / MPN | DS-2CE72KF0T-LFS |
| Camera Type | 3K ColorVu Fixed Turret Camera |
| Image Sensor | 3K CMOS |
| Maximum Resolution | 2960 × 1665 |
| TVI Frame Rate | 3K @ 20fps; 4MP / 1080p @ 25/30fps |
| AHD Output | 5MP @ 20fps; 4MP @ 25/30fps |
| CVI Output | 4MP @ 25/30fps |
| Lens | 2.8mm Fixed Focal Lens |
| Viewing Angle | 105° Horizontal / 60° Vertical / 143° Diagonal |
| Aperture | F1.0 |
| Minimum Illumination | 0.001 Lux @ F1.0, AGC On / 0 Lux with White Light |
| Night Technology | ColorVu / Smart Hybrid Light |
| Infrared Range | Up to 40m |
| White Light Range | Up to 40m |
| Audio | Built-In Microphone – Audio Over Coax |
| Microphone Pickup Distance | Up to Approximately 5m Radius |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| Wide Dynamic Range | Digital WDR |
| Noise Reduction | 2D DNR |
| Power Supply | 12V DC ±25% |
| Maximum Power Consumption | 5.2W |
| Protection Rating | IP67 |
| Material | Metal Main Body / Plastic Enclosure |
| Operating Temperature | −40°C to +60°C |
| Dimensions | Ø109.98 × 98.27mm |
| Weight | Approximately 320g |
Official Hikvision Datasheet
Download Hikvision DS-2CE72KF0T-LFS Datasheet
What’s Included?
- 1 × Hikvision DS-2CE72KF0T-LFS 3K ColorVu Turret Camera with 2.8mm Lens
DVR, recording hard drive, power supply, cables, junction box and
monitor are sold separately.
Complete Your CCTV Installation
Hikvision iDS-7204HQHI-M1/XT DVR
Hikvision DS-1280ZJ-TR13 Junction Box
20m BNC CCTV Video and Power Cable
Viper Pro 12V 5A Power Supply with 4-Way Splitter
CCTV Monitors
Need Help?
If you are unsure whether the Hikvision DS-2CE72KF0T-LFS is suitable
for your CCTV system, contact our CCTV team for advice on DVR
compatibility, ColorVu, Smart Hybrid Light, audio recording and
installation accessories.
