Description

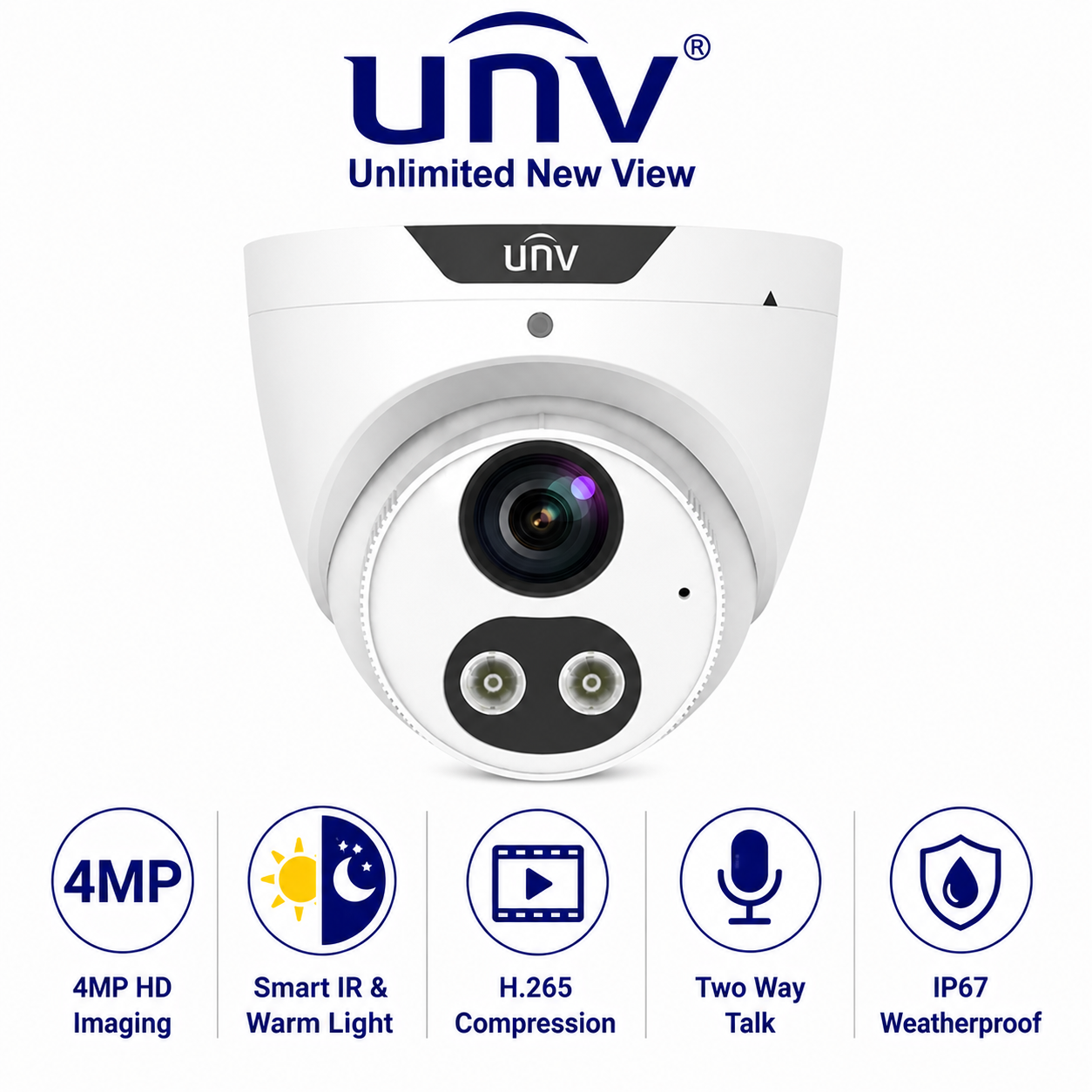

Uniview UV-IPC3614LE-ADF28KC-WL-W Powerful 4MP EasyColor Turret
The Uniview UV-IPC3614LE-ADF28KC-WL-W is a powerful 4MP ColorHunter fixed dual-light turret network camera designed for professional CCTV installations. It combines high-quality 4MP imaging, 120dB True WDR, Smart IR and white-light illumination, built-in microphone and speaker, two-way audio, PoE and IP67 protection for reliable day-and-night surveillance.
ColorHunter Dual-Light Technology
The UV-IPC3614LE-ADF28KC-WL-W uses ColorHunter technology together with dual-light illumination to deliver dependable surveillance in low-light environments. Smart IR and white-light illumination can provide coverage up to 30 metres, helping maintain clear monitoring after dark.
Key Features
4MP High-Resolution Imaging
The Uniview UV-IPC3614LE-ADF28KC-WL-W delivers up to 4MP resolution at 2688 × 1520, providing detailed video for monitoring entrances, retail premises, offices, warehouses, commercial buildings and residential properties.
120dB True WDR
With 120dB True WDR, the camera is designed to retain useful image detail when bright and dark areas appear in the same scene. This makes it particularly useful for entrances, windows and outdoor locations exposed to changing lighting conditions.
Smart IR & White-Light Illumination
The camera provides both Smart IR and white-light illumination up to 30m. This dual-light design provides flexible nighttime surveillance and helps maintain visibility across outdoor areas and other low-light environments.
2.8mm Wide-Angle Lens
The 2.8mm fixed-focal lens provides a wide viewing angle of approximately 112.9° horizontally. This makes the UV-IPC3614LE-ADF28KC-WL-W suitable for covering entrances, corridors, retail spaces and wider monitoring areas.
Two-Way Audio
A built-in microphone and speaker provide two-way audio functionality. Compatible surveillance systems can be used to listen to the monitored area and communicate remotely through the camera.
Efficient Video Compression
The UV-IPC3614LE-ADF28KC-WL-W supports Ultra 265, H.265, H.264 and MJPEG video compression. Ultra 265 technology helps reduce bandwidth and storage requirements while maintaining efficient video transmission.
Video & Storage Specifications
| Feature | Specification |
|---|---|
| Maximum Resolution | 4MP, 2688 × 1520 |
| Frame Rate | Up to 25fps at 4MP; up to 30fps at 3MP/1080P |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Streams | Dual streams |
| Video Bit Rate | 128 Kbps – 16 Mbps |
| MicroSD Storage | Up to 512GB |
| Corridor Mode | 9:16 supported |
Technical Specifications
| Specification | Details |
|---|---|
| Model | UV-IPC3614LE-ADF28KC-WL-W |
| Series | EasyStar / ColorHunter |
| Camera Type | 4MP Fixed Dual-Light Turret Network Camera |
| Image Sensor | 1/3.0″ 4MP Progressive Scan CMOS |
| Lens | 2.8mm Fixed-Focal Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 112.9° |
| Vertical Field of View | 59.1° |
| Diagonal Field of View | 121.2° |
| Minimum Illumination | 0.003 Lux Colour; 0 Lux with light |
| WDR | 120dB |
| IR Range | Up to 30m |
| White-Light Range | Up to 30m |
| Audio | Built-in Microphone & Speaker, Two-Way Audio |
| Storage | MicroSD up to 512GB |
| Network | 10/100 Mbps Ethernet |
| Power | PoE |
| Corridor Mode | 9:16 Supported |
| Protection | IP67 |
| Adjustment | Pan 0°–360°, Tilt 0°–80°, Rotate 0°–360° |
9:16 Corridor Mode
The camera supports 9:16 Corridor Mode, making it suitable for monitoring vertically oriented spaces such as corridors, aisles, walkways and narrow entrances.
PoE & Network Integration
The UV-IPC3614LE-ADF28KC-WL-W supports PoE power, allowing power and network connectivity to be delivered through a single Ethernet cable. It also supports professional IP surveillance integration through compatible network platforms and ONVIF-compatible systems.
IP67 Outdoor Protection
With IP67 protection, the camera is designed to withstand dust and water exposure in demanding environments. Its fixed turret design makes it suitable for both indoor and outdoor CCTV installations.
Ideal Applications
Why Choose the Uniview UV-IPC3614LE-ADF28KC-WL-W?
The Uniview UV-IPC3614LE-ADF28KC-WL-W combines 4MP high-resolution imaging, ColorHunter technology, 120dB True WDR, 30m Smart IR and white-light illumination, two-way audio, 512GB MicroSD storage, PoE and IP67 protection. It is a powerful and versatile choice for professional CCTV installations requiring reliable day-and-night surveillance.
Download the Official Full Specs Sheet
For complete technical information and installation details, download the official datasheet.
