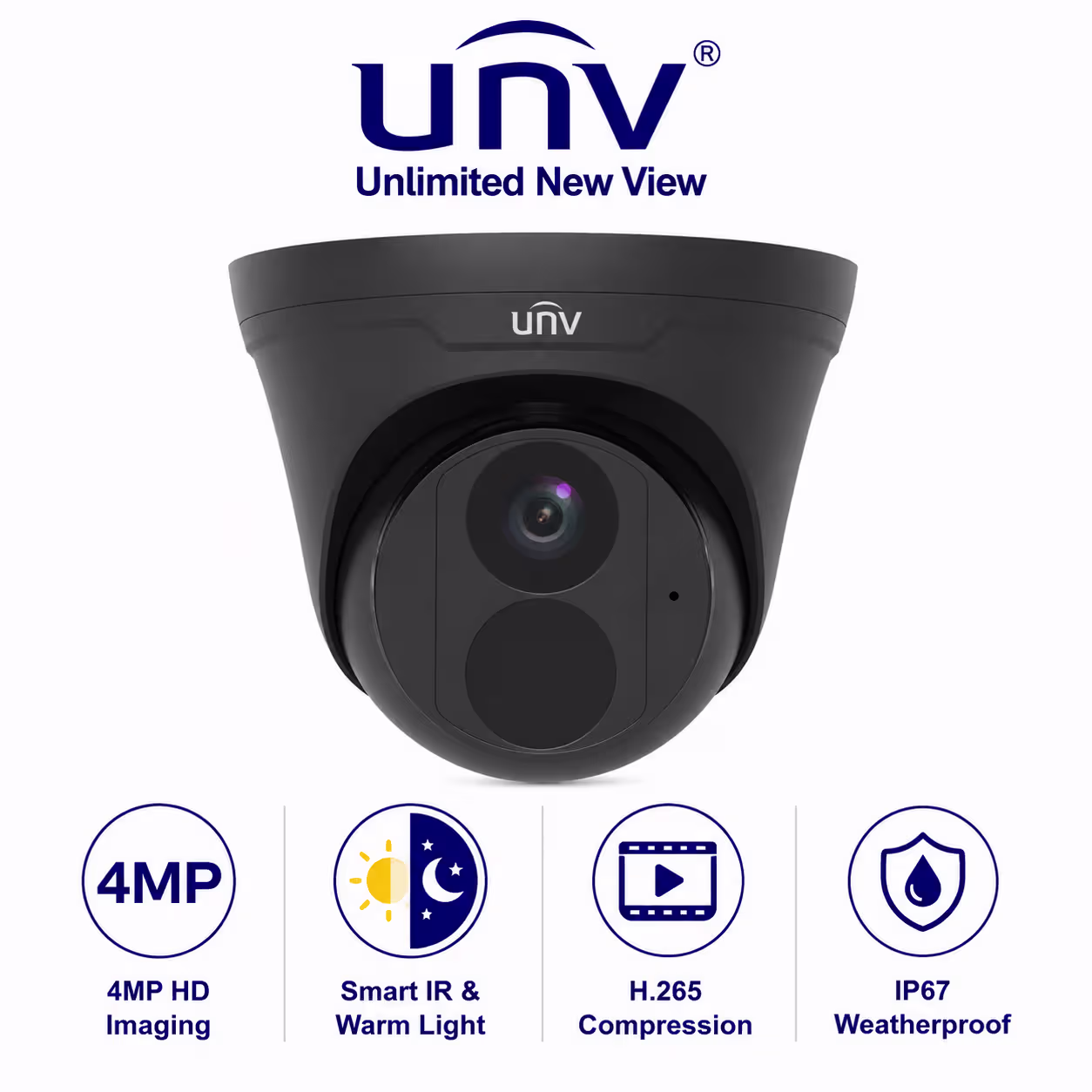

Uniview UV-IPC3614LE-ADF28K-G-B Powerful 4MP EasyStar Turret
The Uniview UV-IPC3614LE-ADF28K-G-B is a powerful 4MP EasyStar fixed IR turret network camera designed for professional CCTV installations. It delivers reliable high-resolution imaging in low-light conditions with EasyStar technology, 120dB True WDR, Smart IR illumination and efficient Ultra 265 video compression. With a built-in microphone, PoE support and IP67 protection, it is well suited for both indoor and outdoor surveillance.
EasyStar Series
EasyStar technology is designed to provide clear and detailed images in low-illumination environments. The UV-IPC3614LE-ADF28K-G-B combines EasyStar low-light performance with Smart IR illumination and advanced image enhancement technologies for dependable day-and-night monitoring.
Key Features
4MP High-Resolution Imaging
The UV-IPC3614LE-ADF28K-G-B provides 4MP resolution up to 2688 × 1520, delivering detailed surveillance footage for commercial properties, offices, retail stores, warehouses, entrances and residential locations.
EasyStar Low-Light Technology
EasyStar technology helps the camera maintain high-quality imaging in low-illumination environments. With a colour minimum illumination of approximately 0.003 lux at F1.6 with AGC ON, the camera is designed to provide useful images when available light is limited.
Smart IR Night Vision
The camera features Smart IR illumination up to 30 metres. The intelligent IR system helps provide clear nighttime monitoring while reducing the risk of excessive infrared exposure on nearby objects.
120dB True WDR
With 120dB True WDR, the camera is designed to handle scenes containing both bright and dark areas. This helps retain important details in challenging lighting conditions such as entrances, windows and outdoor areas.
2.8mm Wide-Angle Lens
The 2.8mm fixed lens provides a wide field of view, making the UV-IPC3614LE-ADF28K-G-B suitable for monitoring larger areas with a single camera. The horizontal viewing angle is approximately 101.1°.
Built-In Microphone
A built-in microphone allows compatible surveillance systems to capture audio alongside video, providing additional information for security monitoring and incident review.
Efficient Video Compression
The camera supports Ultra 265, H.265, H.264 and MJPEG video compression. Ultra 265 technology helps reduce bandwidth and storage requirements while maintaining efficient high-quality video transmission.
Video & Storage Specifications
| Feature | Specification |
|---|---|
| Maximum Resolution | 4MP, 2688 × 1520 |
| Frame Rate | Up to 25fps at 4MP; up to 30fps at 3MP/1080P |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 4MP (2688 × 1520), 4MP (2560 × 1440), 3MP, 1080P |
| Sub Stream | Up to 720P |
| MicroSD | Up to 256GB |
| ROI | Up to 8 areas |
Technical Specifications
| Specification | Details |
|---|---|
| Model | UV-IPC3614LE-ADF28K-G-B |
| Series | EasyStar |
| Camera Type | 4MP Fixed IR Turret Network Camera |
| Image Sensor | 1/3″ 4MP Progressive Scan CMOS |
| Lens | 2.8mm Fixed-Focal Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 101.1° |
| Vertical Field of View | 55.3° |
| Diagonal Field of View | 111.1° |
| Minimum Illumination | 0.003 Lux Colour; 0 Lux with IR |
| WDR | 120dB True WDR |
| IR Range | Up to 30m |
| Day/Night | IR-Cut Filter with Auto Switch |
| Audio | Built-in Microphone |
| Storage | MicroSD up to 256GB |
| Network | 10/100 Mbps Ethernet |
| Power | PoE |
| Corridor Mode | 9:16 Supported |
| Protection | IP67 |
| Adjustment | Pan 0°–360°, Tilt 0°–80°, Rotate 0°–360° |
PoE & Network Integration
The UV-IPC3614LE-ADF28K-G-B supports PoE power, allowing power and network connectivity to be delivered through a single Ethernet cable. It also supports ONVIF integration for compatibility with suitable network video recorders and surveillance platforms.
9:16 Corridor Mode
The camera supports 9:16 Corridor Mode, making it easier to monitor vertically oriented areas such as corridors, aisles, walkways and narrow entrances while making efficient use of the available image area.
IP67 Outdoor Protection
With IP67 protection, the Uniview UV-IPC3614LE-ADF28K-G-B is designed for reliable operation in demanding indoor and outdoor environments. Its robust turret construction makes it suitable for commercial, industrial and residential CCTV installations.
Ideal Applications
Why Choose the Uniview UV-IPC3614LE-ADF28K-G-B?
The Uniview UV-IPC3614LE-ADF28K-G-B offers a practical combination of 4MP high-resolution imaging, EasyStar low-light technology, 120dB True WDR, 30m Smart IR, built-in microphone, PoE connectivity and IP67 protection. It is a reliable choice for professional CCTV installations requiring clear imaging and dependable day-and-night surveillance.
Download the Official Full Specs Sheet
For complete technical information and installation details, download the official datasheet.
