Description

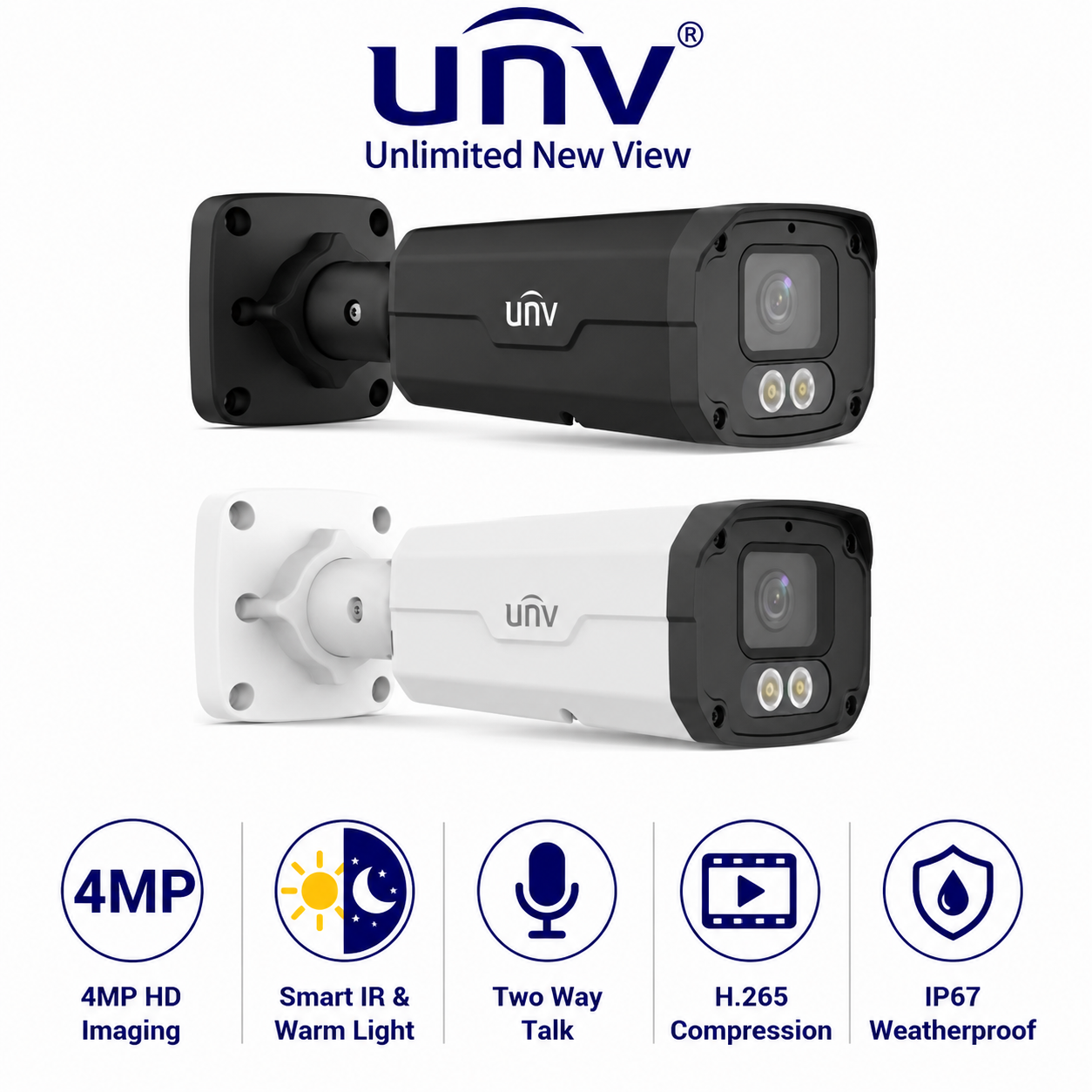

Uniview UV-IPC2224SE-DF40K-WL-I0-B & UV-IPC2224SE-DF40K-WL-I0-W 4MP ColorHunter Bullet
The Uniview UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W are powerful 4MP Prime 3 ColorHunter fixed warm-light bullet network cameras, available in Black and White. Designed for professional CCTV installations, these cameras combine 4MP high-resolution imaging, a large 1/1.8″ CMOS sensor, F1.0 aperture, 120dB True WDR, intelligent detection, full-colour night imaging and 30m warm-light illumination.
Prime 3 ColorHunter Series
The UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W use Uniview ColorHunter technology to provide 24-hour full-colour images. Their large 1/1.8″ sensor and F1.0 lens help capture more light, delivering clear and detailed surveillance footage in challenging low-light conditions.
Available Models
Key Features
4MP High-Resolution Imaging
The UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W deliver 4MP video at up to 2688 × 1520 resolution and 30fps. This provides detailed footage for monitoring entrances, commercial buildings, retail stores, warehouses, offices and outdoor areas.
ColorHunter 24-Hour Full-Colour Imaging
Uniview ColorHunter technology is designed to maintain full-colour surveillance throughout the day and night. The large 1/1.8″ CMOS sensor and F1.0 aperture improve light collection, helping produce bright and detailed images when ambient light is limited.
F1.0 4mm Fixed Lens
Both the UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W feature a 4mm fixed lens with an F1.0 aperture. The lens provides a horizontal field of view of approximately 97.7°, making the cameras suitable for a wide range of surveillance applications.
120dB True WDR
With 120dB True WDR, these cameras are designed to maintain useful image detail in scenes containing both bright and dark areas. This makes them particularly suitable for entrances, windows, building exteriors and other challenging lighting environments.
30m Warm-Light Illumination
The cameras feature integrated warm-light illumination up to 30 metres. This supports full-colour nighttime surveillance and provides additional visibility when ambient lighting is insufficient.
Smart Intrusion Prevention
The UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W support intelligent intrusion prevention, including cross-line, intrusion, enter-area and leave-area detection.
Target classification helps reduce false alarms caused by irrelevant objects such as leaves, birds and changing lights, allowing the system to focus more accurately on humans, motor vehicles and non-motor vehicles.
People Flow & Crowd Density Monitoring
Intelligent people flow counting and crowd density monitoring provide additional analytics for retail stores, commercial buildings and other locations where monitoring movement and occupancy is important.
Audio & Alarm Interfaces
Both models provide 1 audio input and 1 audio output together with 1 alarm input and 1 alarm output. This allows compatible external audio and alarm equipment to be integrated into the CCTV system.
Video Compression & Storage
| Feature | Specification |
|---|---|
| Maximum Resolution | 4MP, 2688 × 1520 |
| Frame Rate | Up to 30fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Streams | Triple streams |
| Video Bit Rate | 128 Kbps – 16 Mbps |
| MicroSD Storage | Up to 512GB |
| ROI | Up to 8 areas |
| Corridor Mode | 9:16 supported |
Technical Specifications
| Specification | Details |
|---|---|
| Models | UV-IPC2224SE-DF40K-WL-I0-B / UV-IPC2224SE-DF40K-WL-I0-W |
| Series | Prime 3 |
| Camera Type | 4MP ColorHunter Fixed Warm-Light Bullet Network Camera |
| Image Sensor | 1/1.8″ 4MP CMOS |
| Lens | 4.0mm Fixed |
| Aperture | F1.0 |
| Horizontal Field of View | 97.7° |
| Vertical Field of View | 53.7° |
| Diagonal Field of View | 113.5° |
| Minimum Illumination | 0.0005 Lux, F1.0, AGC ON |
| WDR | 120dB True WDR |
| Warm-Light Range | Up to 30m |
| Smart Features | Smart Intrusion Prevention, People Flow Counting, Crowd Density Monitoring |
| Audio I/O | 1 Input / 1 Output |
| Alarm I/O | 1 Input / 1 Output |
| Storage | MicroSD up to 512GB |
| Network | 10/100 Mbps Ethernet |
| Power | PoE |
| Protection | IP67 & IK10 |
Efficient Video Compression
The cameras support Ultra 265, H.265, H.264 and MJPEG compression. Ultra 265 helps reduce bandwidth and storage requirements while maintaining efficient high-resolution video transmission.
PoE & Network Integration
With PoE support, the UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W can receive power and network connectivity through a single Ethernet cable, simplifying installation. The cameras also support ONVIF-compatible integration with suitable professional surveillance systems.
9:16 Corridor Mode
Support for 9:16 Corridor Mode makes these cameras suitable for vertically oriented areas such as corridors, walkways, aisles and narrow entrances.
IK10 & IP67 Protection
Both models feature IK10 vandal resistance and IP67 protection, providing robust protection for demanding indoor and outdoor CCTV installations.
Ideal Applications
Why Choose the Uniview UV-IPC2224SE-DF40K-WL-I0 Series?
The UV-IPC2224SE-DF40K-WL-I0-B and UV-IPC2224SE-DF40K-WL-I0-W combine 4MP high-resolution imaging, ColorHunter 24-hour full-colour technology, F1.0 optics, 120dB True WDR, 30m warm-light illumination and intelligent security analytics. With PoE, up to 512GB MicroSD storage, audio and alarm interfaces, IK10 and IP67 protection, they provide a powerful and versatile solution for professional CCTV installations.
Download the Official Full Specs Sheet
For complete technical information and installation details, download the official datasheet.
