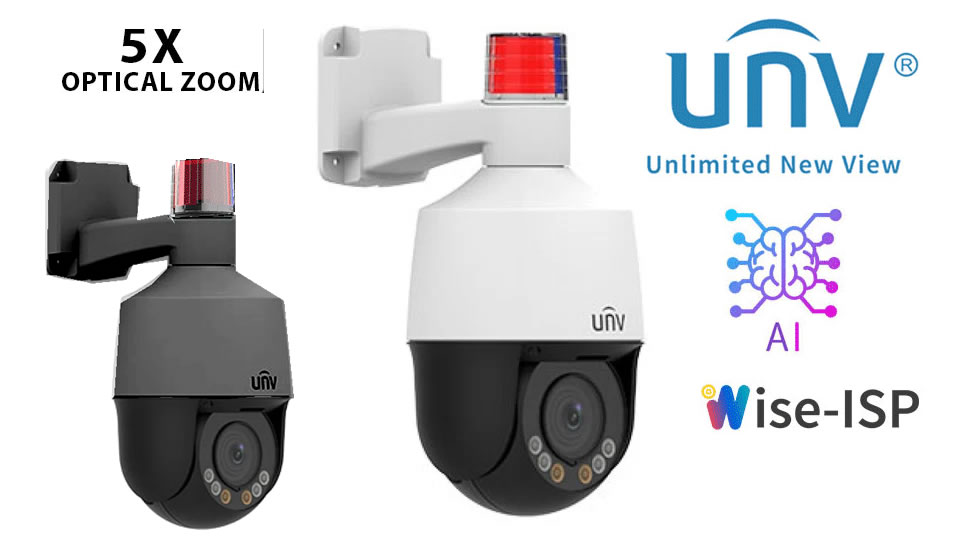

UNIVIEW 4MP PTZ CAMERA WISE-ISP Tri-Guard 5X ZOOM, AUTO-TRACKING, AI, 2-WAY AUDIO BLACK IPC6324LWH-AX5C-VG2
UNIVIEW 4MP PTZ CAMERA WISE-ISP Tri-Guard 5X ZOOM, AUTO-TRACKING, AI, 2-WAY AUDIO BLACK IPC6324LWH-AX5C-VG2 - Image 2
UNIVIEW IPC675LFW-AX4DUPKC-VG

UNIVIEW 4MP PTZ CAMERA WISE-ISP Tri-Guard 5X ZOOM, AUTO-TRACKING, AI, 2-WAY AUDIO BLACK IPC6324LWH-AX5C-VG2

Login or Register to view pricing.

Uniview IPC6324LWH-AX5C-VG2 4MP Wise-ISP Auto-Tracking Camera Two Way Audio PTZ Night Colour Light IP66 For Home or Business.

Add to wishlist
SKU: Uniview IPC6324LWH-AX5C-VG2 Categories: , , ,

Description

What is included:
  • 1x ‌‌Uniview IPC6324LWH-AX5C-VG2 NEW Wise-ISP
Uniview IPC6324LWH-AX5C-VG2 Features:
  • High quality image with 4 MP, 1/1.8″ CMOS sensor
  • Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
  • Ultra 265, H.265, H.264, MJPEG
  • 2688 × 1520@30 fps in the main stream, 16:9 aspect ratio
  • Smart intrusion prevention, supports false alarm filtering, cross line detection, intrusion detection
  • Up to 120 dB WDR (wide dynamic range)
  • Built-in mic and speaker
  • 40 m (131.2 ft) warm light distance
  • MicroSD, up to 512 GB
  • IP66 protection
  • DC 12 V, PoE (IEEE 802.3at) power supply
Uniview IPC6324LWH-AX5C-VG2 Specifications:
Camera
Sensor1/1.8″ CMOS
Min. IlluminationColor: 0.0005 Lux (F1.2, AGC ON)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
S/N>56 dB
Lens
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Field of View (H)113.69° to 50.29°
Field of View (V)59.46° to 28.45°
Field of View (D)156.23° to 59.34°
DORI
DORI Distance (Lens)2.7 to 13.5 mm
DORI Distance (Detect)98.6 m to 209.9 m (323.3 ft. to 688.7 ft)
DORI Distance (Observe)39.4 m to 84.0 m (129.3 ft. to 275.5 ft)
DORI Distance (Recognize)19.7 m to 42.0 m (64.7 ft. to 137.7 ft)
DORI Distance (Identify)9.9 m to 21.0 m (32.3 ft. to 68.9 ft)
Video
Privacy MaskUp to 4 areas
Frame Rate-Main Stream4 MP (2560 × 1440)@25 fps (Default)
4 MP (2688 × 1520), max. 30 fps;
4 MP (2560 × 1440), max. 30 fps
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
ROISupport
Video StreamTriple streams
OSDUp to 8 OSDs
Intelligent
Auto TrackingSupport, target filtering: human only
Smart Intrusion PreventionSupport false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection)
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°
HLCSupport
BLCSupport
DefogDigital defog
Illuminator
Light On/Off ControlAuto/Manual
Illumination Distance (Warm Light)40 m
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
Motion DetectionSupport
Tampering DetectionSupport
Audio DetectionSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
UMD (Ultra Motion Detection)Support
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz, 16 kHz
Storage
Edge StorageMicroSD, up to 512 GB
Network
ProtocolsTLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S,Profile G,Profile T), API
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation, EZLive, EZView
Web BrowserPlug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
PTZ
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Patrol Stay Time120 s to 1800 s
Home PositionSupport
Number of Presets (IPC)1024
Pan Range0° to 345°
Tilt Range-10° to 100°
Pan Speed1°/s to 50°/s
Tilt Speed1°/s to 40°/s
Number of Patrol16
Interface
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O1/1
Built-in MicSupport
Built-in SpeakerSupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130)
FCC SDoC (47 CFR Part 15; Subpart B)
SafetyUL (UL 62368-1)
CUL (CAN/CSA C22.2 No. 62368-1)
CE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
ProtectionIP66 (IEC 60529)
General
PowerDC 12 V±25%, PoE (IEEE 802.3at)
Power Consumption≤ 25.4 W
Weight1.33 kg (2.93 lb)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection2 KV
Reset ButtonSupport
MaterialMetal
HeaterSupport
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Live View
Maximum Bitstream35
OSD ColorSupport
OSD Character Number40



Additional information

Brand

Megapixel

5MP

Max. Resolution

2880×1620

Lens

2.8mm

IR Distance

IP Rating
