Description
What is included:

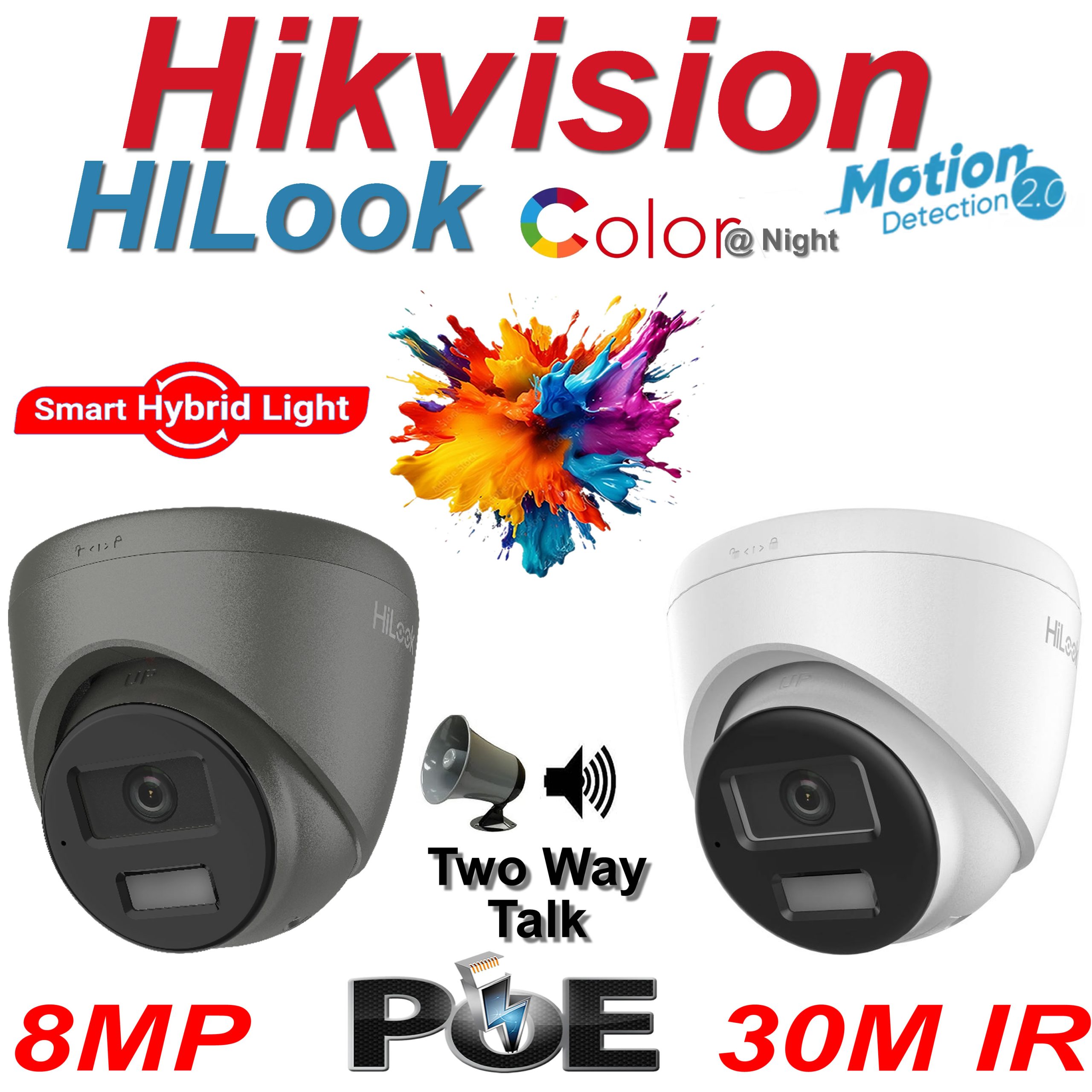

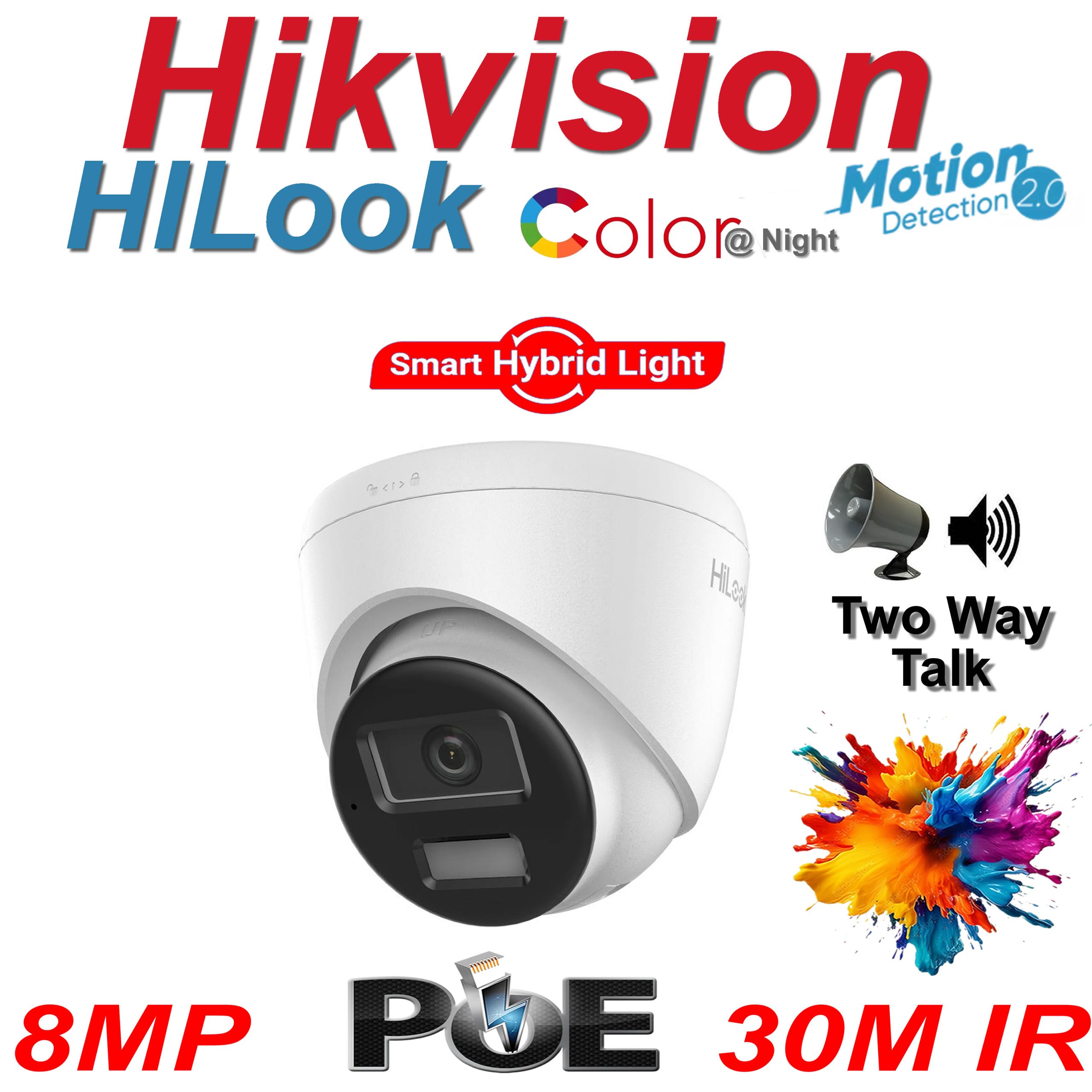

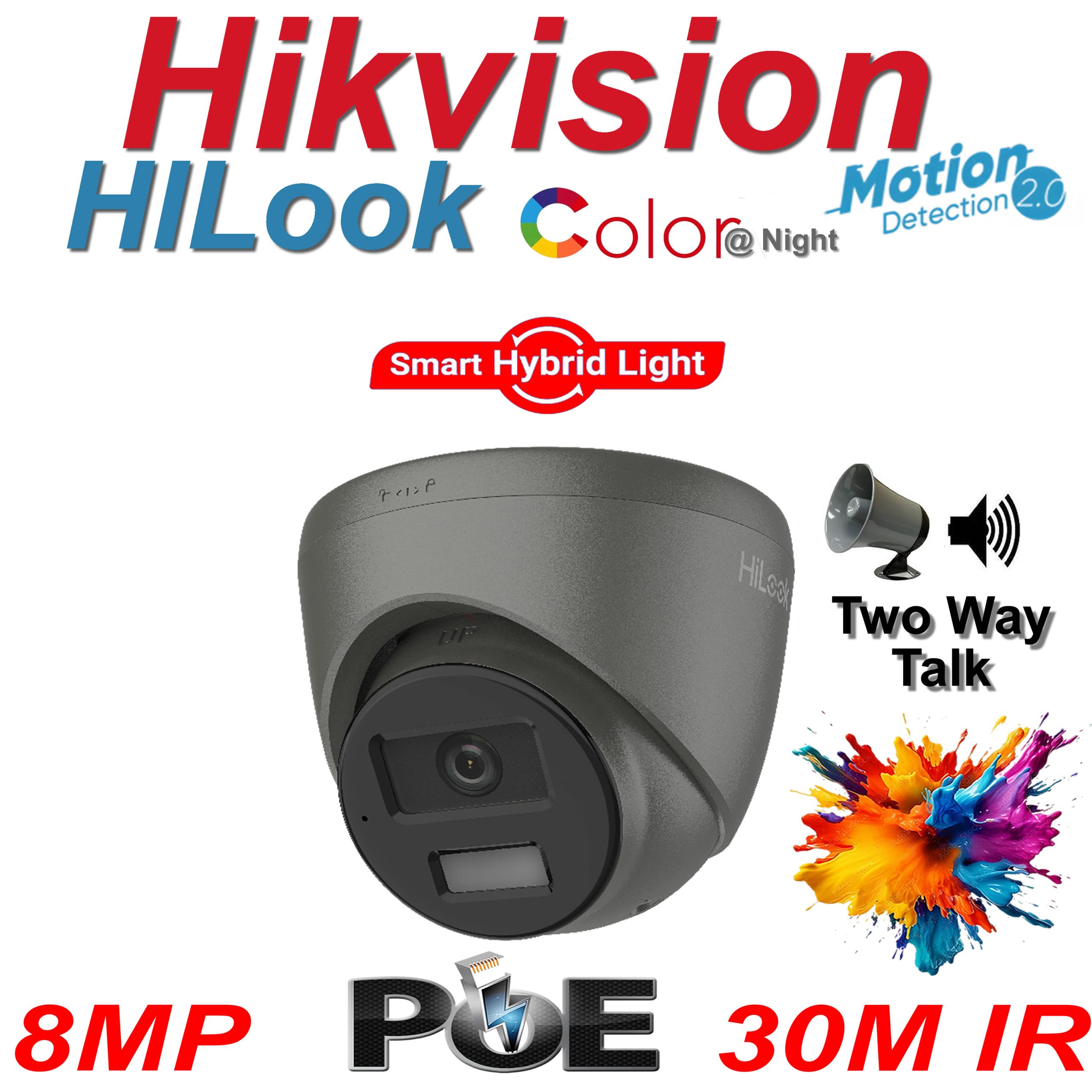

- 1x 8MP Hikvision Hilook IPC-T280HA-LUF/SL
Hilook IPC-T280HA-LUF/SL Features:
- High quality imaging with 8 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Hilook IPC-T280HA-LUF/SL Specifications:
Camera
- Image Sensor 1/2.7″ Progressive Scan CMOS
- Max. Resolution 3840 × 2160
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
- Lens Type Fixed focal lens 2.8
- Focal Length & FOV
2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
- Lens Mount M12
- Iris Type Fixed
- Aperture F2.0
DORI
- DORI
2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
- Supplement Light Type IR, White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength850 nm
Video
- Main Stream
50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile, Main Profile, High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
Audio
- Audio Type Mono sound
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise Filtering Yes
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client iVMS-4200, HiLookVision
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Wide Dynamic Range (WDR) 120 dB
- SNR≥ 52 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask 4 programmable polygon privacy masks
Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSD HC/microSD XC card, up to 512 GB
- Built-in Microphone Yes,1 built-in microphone
- Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reset Key Yes
Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
General
- Power
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.5 W
- Material Metal & Plastic
- Dimension Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
- Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- Weight Approx. 360 g (0.8 lb.)
- With Package Weight Approx. 551 g (1.2 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Start up and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
- Flashing Light Yes
Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
