Description
What is included:

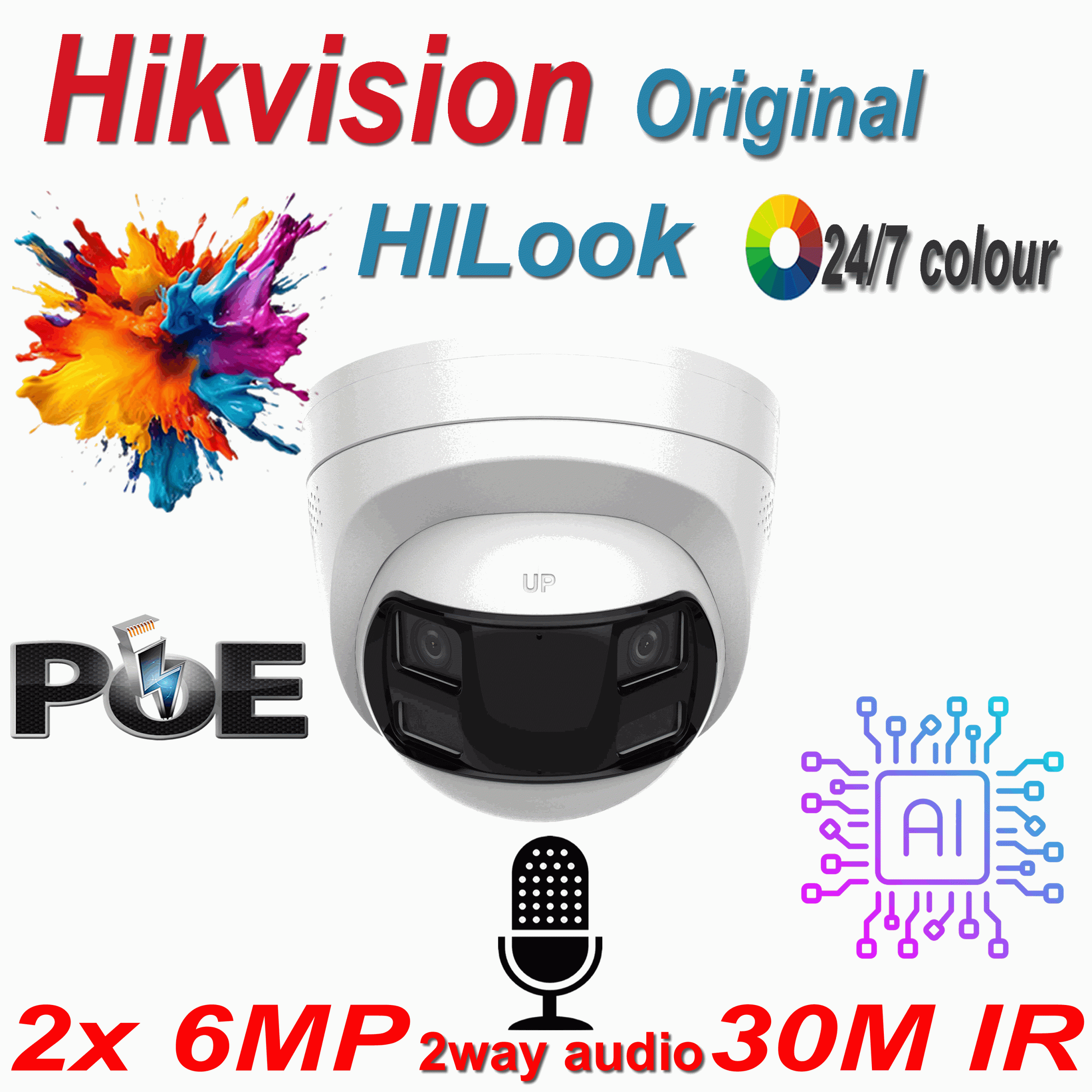

- 1x HiLook IPC-T260HAD-LUF/SL 6MP
Hilook IPC-T260HAD-LUF/SL Features:
- High quality imaging with 6 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- 180° Field of view
- Active strobe light and audio alarm to warn intruders off
Hilook IPC-T260HAD-LUF/SL Specifications:
Camera
- Image Sensor 1/2.5″ Progressive Scan CMOS
- Max. Resolution 3632 × 1632
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
- Lens Type Fixed focal lens, 2.8 mm
- Focal Length & FOV 2.8 mm, horizontal FOV 180°, vertical FOV 77°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
DORI
- DORI 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
Illuminator
- Supplement Light Type IR, White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
Video
- Main Stream
50 Hz: 20 fps (3632 × 1632)
60 Hz: 20 fps (3632 × 1632)
- Sub-Stream
50 Hz: 20 fps (1200× 536, 960 × 432)
60 Hz: 20 fps (1200× 536, 960 × 432)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile, Main Profile, High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Region of Interest (ROI) 1 fixed region for main stream
- Scalable Video Coding (SVC) H.264 and H.265 encoding
Audio
- Audio Type Mono sound
- Audio Sampling Rate 8 kHz/16 kHz
- Environment Noise Filtering Yes
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client iVMS-4200,HiLookVision
- Web Browser
Plug-in required live view: IE 11,
Local service: Chrome 80+, Firefox 80+, Edge 89+
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask 4 programmable polygon privacy masks
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSD HC/microSD XC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Built-in Speaker Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Reset Key Yes
Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
- Linkage Upload to FTP, upload to memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing
General
- Power
12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 11.5 W
- Material Base: Metal , cover: Plastic
- Dimension Ø130.1 mm × 109.1 mm (Ø5.1″ × 4.3″)
- Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- Weight Approx. 580 g (1.3 lb.)
- With Package Weight Approx. 760 g (1.7 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Start up and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- General Function Heartbeat, anti-banding, password protection, password reset via email
- Flashing Light
/SRB model: Red and Blue Light
/SL model: White Light
Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety CB: IEC 62368-1: 2014+A11
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
