Description
What is OEM Hikvision:
An OEM Hikvision camera is a genuine Hikvision product, but it might be sold under different branding or packaging or without retail packaging.

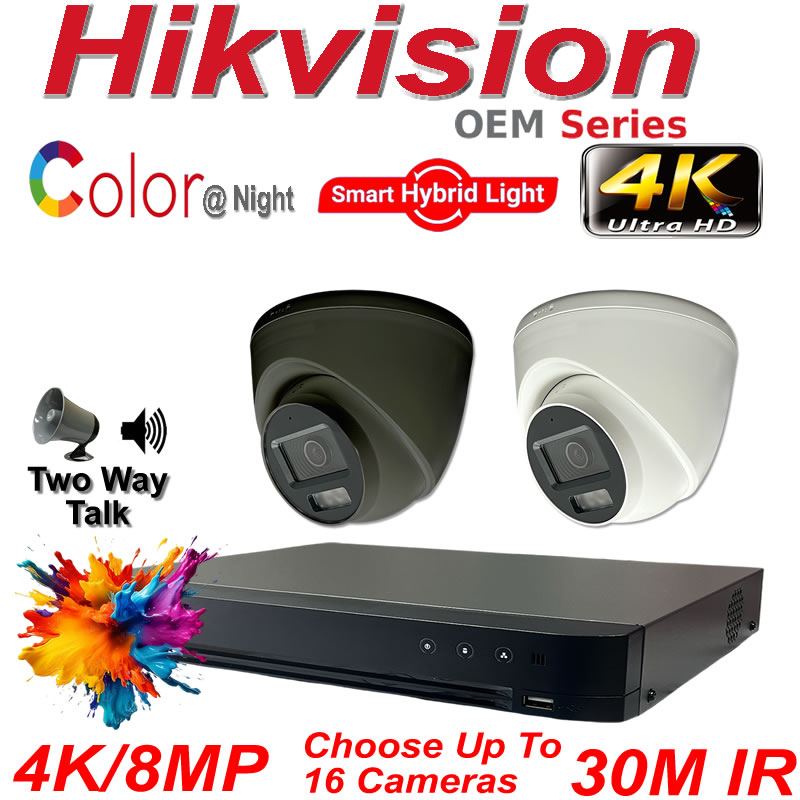

What is included?
- 1x Hikvision OEM 4 or 8 Channel AI Intelligent DVR
- 1x USB Mouse for the DVR Recorder
- Up To 8x Hikvision OEM T289WH-T Two Way Audio Smart Hybrid Light
- 1x HDMI Cable (1.8m)
- 18M BNC Cable for each camera selected.
- Power Supply and Splitter
- Optional Pre-Fitted Hard Drive (Please select one at the top)
Hikvision OEM DVR-4CH-4K/XT Features:
- 4 channels and 1 HDD 1U AcuSense DVR
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 4-ch AcuSearch Technology
- Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
- Up to 8 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Hikvision OEM DVR-8CH-4K/XT Features:
- 8 channels and 1 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
- Up to 16 channels IP camera inputs, each channel up to 8MP
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology

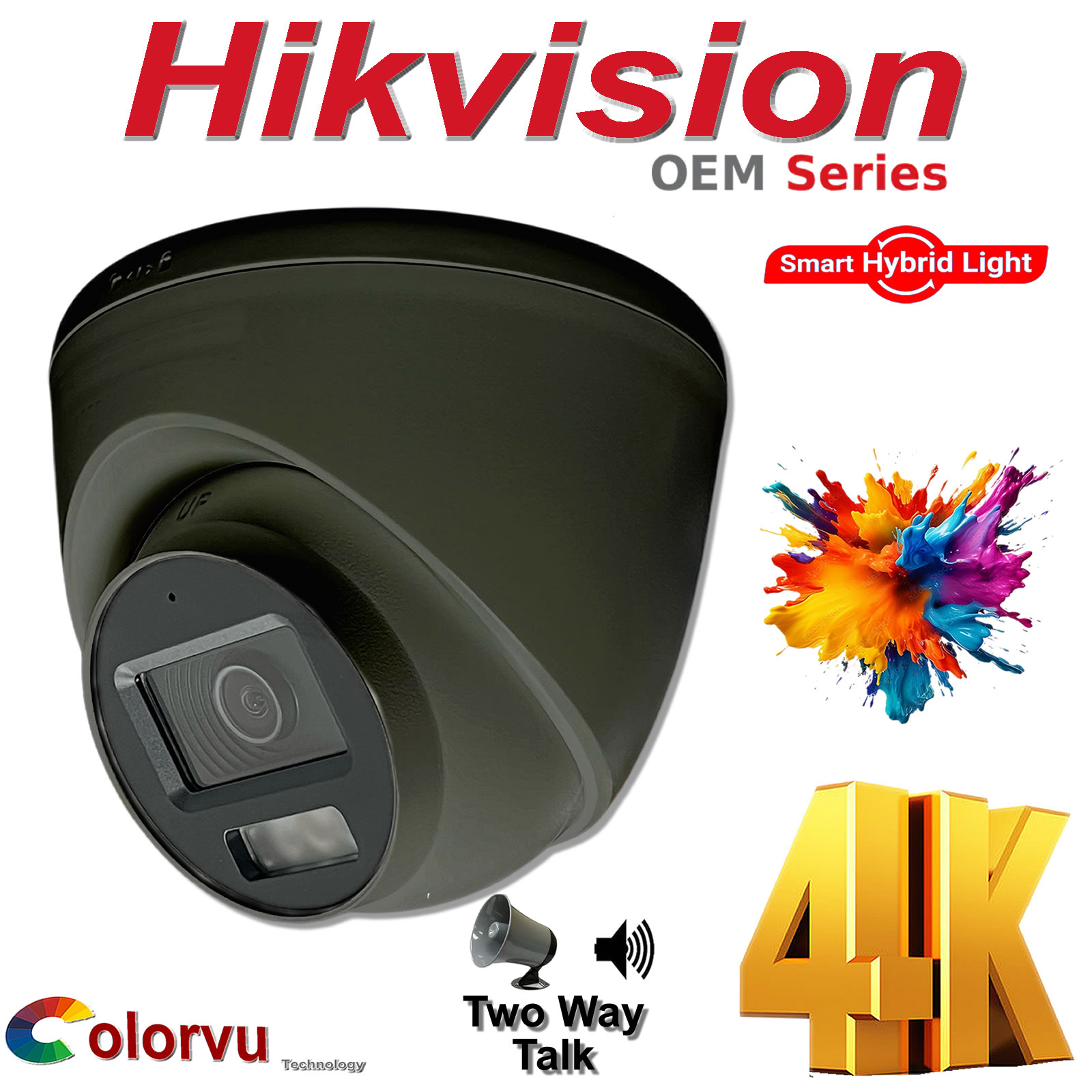

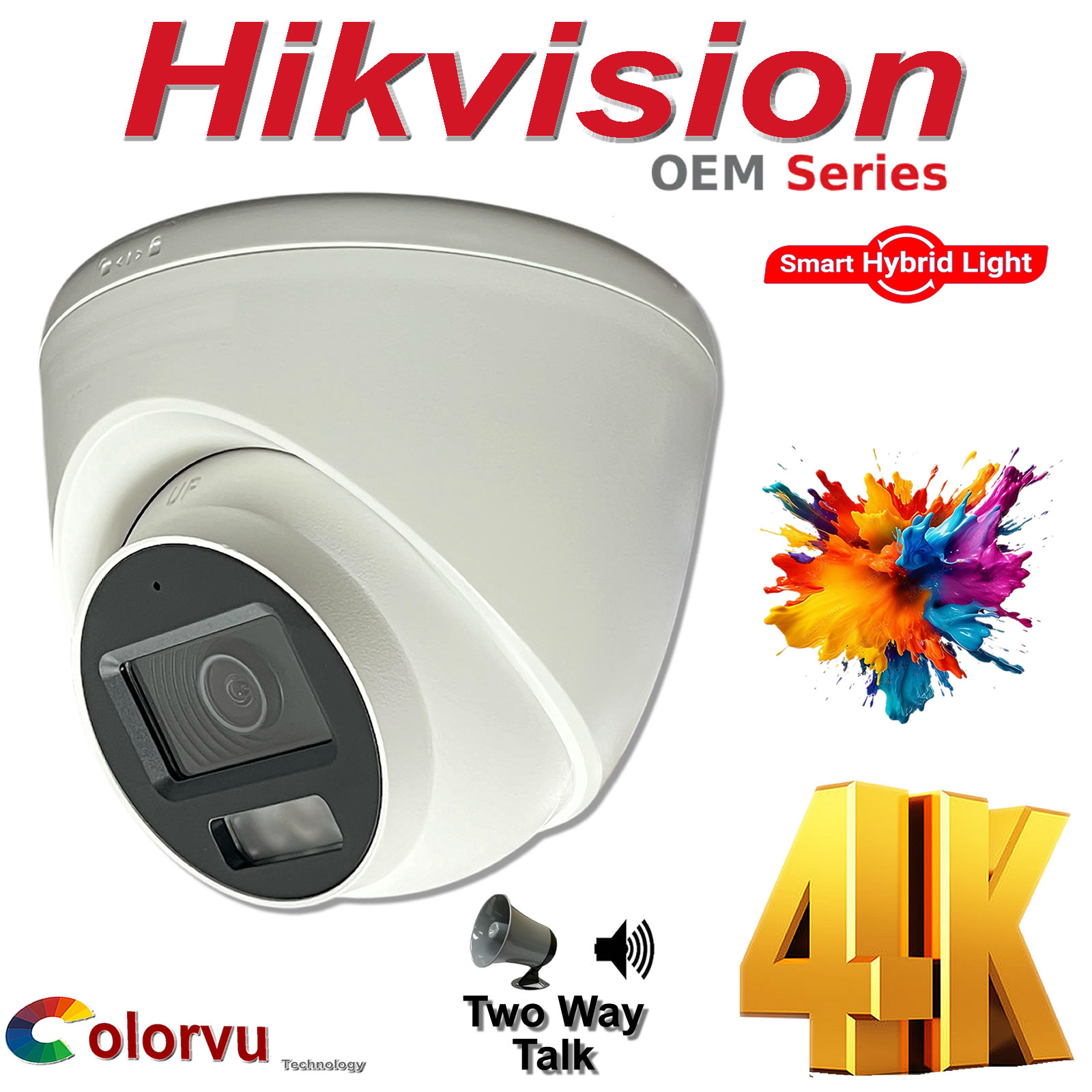

Hikvision OEM T289WH-T Features:
- High quality imaging with 4K, 3840 × 2160 resolution
- 2.8 mm, fixed focal lens
- Up to 40 m white light and 40 m IR distance for bright night imaging
- Smart-Hybrid Light, optimize your security with flexible lighting options
- High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
- Provide real-time communication via built-in two-way audio
- Water and dust resistant (IP67)
Hikvision OEM DVR-4CH-4K/XT Specifications:
Facial Recognition
Face Picture Library Up to 16 face picture libraries Face Picture Comparison Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analog camera)
Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch
Video and Audio
IP Video Input 4-ch (up to 8-ch), each up to 8 MP Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDMI Output 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output CVBS Input PAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback 4-ch HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps Audio Output 1-ch, RCA (Linear, 1 KΩ) Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 10 Mbps Dual-stream Support main stream or sub stream Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps
Network
Total Bandwidth 96 Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection 32 Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface Capacity up to 10 TB capacity for each disk Serial Interface RS-485 (half-duplex) USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply 12 VDC, 1.5 A Consumption ≤ 10 W Working Temperature ’-10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch) Weight ≤ 1.16 kg (2.6 lb)
Hikvision OEM DVR-8CH-4K/XT Specifications:
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has
been backed up by HDD and flash.Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera)
Facial Detection
Facial Detection and Capture Face picture detection, face picture search； 4-ch face picture capture
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Video and Audio
IP Video Input 8-ch (up to 16-ch), each up to 8 MP Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output CVBS Input PAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback 8-ch HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps Audio Output 1-ch, RCA (Linear, 1 KΩ) Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 10 Mbps Dual-stream Support main stream or sub stream Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps
Decoding
Decoding Capability up to 8-ch 1080P@30fps
Network
Total Bandwidth 256 Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP Remote Connection 64 Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface Capacity up to 12 TB capacity for each disk Serial Interface RS-485 (half-duplex) USB Interface Front panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0
General
Power Supply 12 VDC, 2 A Consumption ≤ 24 W Working Temperature ’-10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 320 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch) Weight ≤ 2 kg (4.4 lb)
Hikvision OEM T289WH-T Specifications:
Camera
Image Sensor 4K CMOS Max. Resolution 3840 (H) × 2160 (V) Shutter Time PAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s Min. Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light Day & Night ICR Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, fixed lens Focal Length & FOV 2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 134°; Lens Mount M12
Microphone
Lens Type 2.8 mm, fixed lens Focal Length & FOV 2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 134°; Lens Mount M12
Speaker
Rated Power 2 W Speaker Range In a radius of up to 5 m
Illuminator
Supplement Light Type Smart, IR, White Light Supplement Light Range IR: Up to 40 m, White Light: Up to 40 m
Image Settings Anti-banding, Brightness, Sharpness, Smart IR Frame Rate TVI: 8 MP @12.5 fps/15 fps, 3K@20 fps/25 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps Day/Night Mode Auto/Color Wide Dynamic Range (WDR) Digital WDR Image Enhancement DWDR, BLC, HLC, Global Noise Reduction 2D DNR White Balance Auto, Manual
Audio
Audio Function Echo Cancellation, AI Noise Reduction, Automatic Gain Control
Interface
Video Output 1 HD analog output
General
Power 12 VDC ± 25%, max. 6.8 W Material Main body: Metal; Enclosure: Plastic Dimension Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″) Weight Approx. 375 g (0.81 lb.) Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) Protection IP67
