Description
What is OEM Hikvision:
An OEM Hikvision camera is a genuine Hikvision product, but it might be sold under different branding or packaging or without retail packaging.
What is included?
- 1x Hikvision OEM 4 or 8 Channel AI Intelligent DVR
- 1x USB Mouse for the DVR Recorder
- Up To 8x Hikvision OEM T259W-HS Audio Smart Hybrid Light
- 1x HDMI Cable (1.8m)
- 18M BNC Cable for each camera selected.
- Power Supply and Splitter
- Optional Pre-Fitted Hard Drive (Please select one at the top)
Hikvision OEM DVR-4CH-3K/XT Features:
- 4 channels and 1 HDD 1U DVR
- Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5MP Lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6-ch network cameras can be connected
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Hikvision OEM DVR-508XT Features:
- 8 channels and 1 HDD 1U
- Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/5M Lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 -ch network cameras can be connected
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology

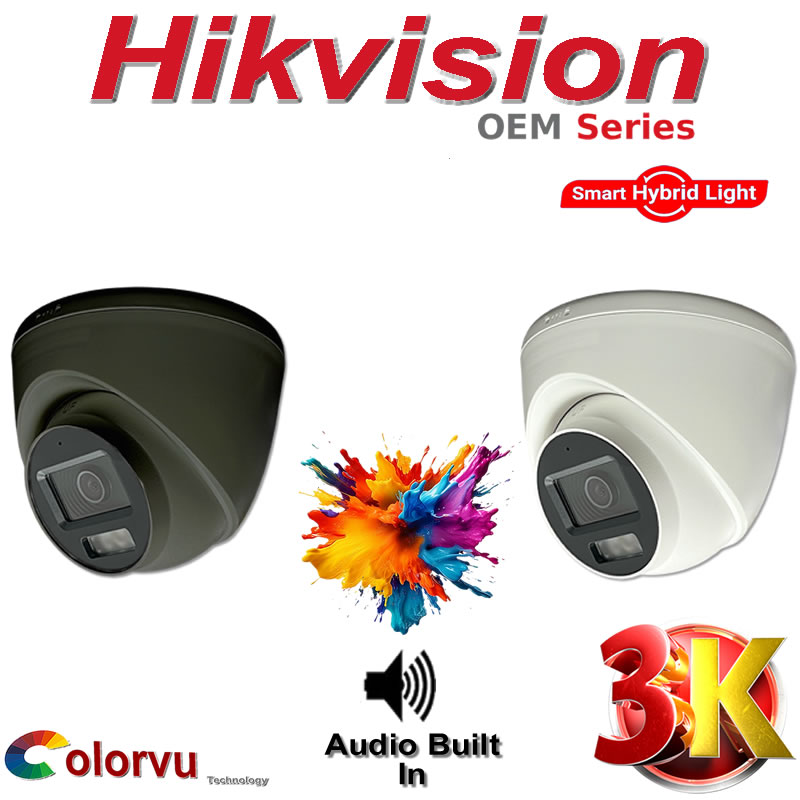

Hikvision OEM T259W-HS Features:
- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8 mm fixed focal lens
- Up to 20 m white light and 40 m IR distance for bright night imaging
- Smart-Hybrid Light, optimize your security with flexible lighting options
- High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
- Provide real-time communication via built-in two-way audio distance up to 5M
- Water and dust resistant (IP67)
Hikvision OEM DVR-504XT Specifications:
Facial Recognition
- Face Picture Comparison Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
- Face Picture Library Up to 16 face picture libraries
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle Analysis Up to 2-ch
Video and Audio
- IP Video Input 2-ch (up to 6-ch), Up to 6 MP resolution
- Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- CVBS Input PAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- Audio Input
1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback 4-ch
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-stream Support main stream or sub stream
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Network
- Remote Connection 32
- Total Bandwidth 72 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
- SATA 1 SATA interface, up to 10 TB capacity for each disk
- Serial Interface RS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
- Alarm In/Out N/A (optional to support)
General
- Power Supply 12 VDC, 1.5 A
- Consumption ≤ 18 W
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
- Weight ≤ 1.16 kg (2.6 lb)
Hikvision OEM DVR-8CH-3K/XT Specifications:
Facial Recognition
- Face Picture Library Up to 16 face picture libraries
- Face Picture Comparison (Captured from Camera)Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle Analysis
Up to 4-ch
Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.
Video and Audio
- IP Video Input 4-ch (up to 12-ch), Up to 6 MP resolution
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- CVBS Input PAL/NTSC
- HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Input
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback 8-ch
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-stream Support main stream or sub stream
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Network
- Remote Connection 64
- Total Bandwidth 96 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
- Serial Interface RS-485 (half-duplex)
- SATA 1 SATA interface, up to 10 TB capacity for each disk
- Alarm In/Out N/A (optional to support)
- USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0
General
- Power Supply 12 VDC, 1.5 A
- Consumption ≤ 18 W (without HDD)
- Working Temperature -10 °C to + 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
- Weight ≤ 1.78 kg (3.9 lb) (without HDD)
Hikvision OEM T259W-HS Specifications:
Camera
- Image Sensor 3K CMOS
- Max. Resolution 2960 (H) × 1665 (V)
- Min. Illumination 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time PAL: 1/12.5 s to 1/50,000 s, NTSC: 1/15 s to 1/50,000 s
- Day & Night ICR
- Angle Adjustment Pan: 0° to 360°,Tilt: 0° to 75°,Rotate: 0° to 360°
- Signal System PAL/NTSC
Lens
- Lens Type 2.8 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 131°;
- Lens Mount M12
- Microphone
- Pickup Distance In a radius of up to 5 m
- Amount 1
- Speaker
- Rated Power2 W
- Speaker Range In a radius of up to 5 m
Illuminator
- Supplement Light Type Smart, IR, White Light
- Supplement Light Range IR: Up to 40 m, White Light: Up to 20 m
- Image Settings
Anti-banding,
Brightness,
Sharpness,
Smart IR
- Frame Rate TVI: 3K @10 fps/12.5 fps/20 fps/25 fps, 4 MP @25 fps/30 fps, 1080P @25 fps/30 fps
- Day/Night Mode Auto/Color
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement
DWDR,
BLC,
HLC,
Global,
HLS
- Noise Reduction 2D DNR
- White Balance
Auto,
Manual
Audio
- Audio Function Echo Cancellation, AI Noise Reduction, Automatic Gain Control
Interface
- Video Output1 HD analog output
General
- Power
12 VDC ± 25%, max. 6.4 W,
*You are recommended to use one power adapter to supply the power for one camera.
- Material Main body: Metal; Enclosure: Plastic
- Dimension Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
- Weight Approx. 370 g (0.81 lb.)
- Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
- Communication Viper Pro
- Language English
Approval
- Protection IP67
