Description
What is included:

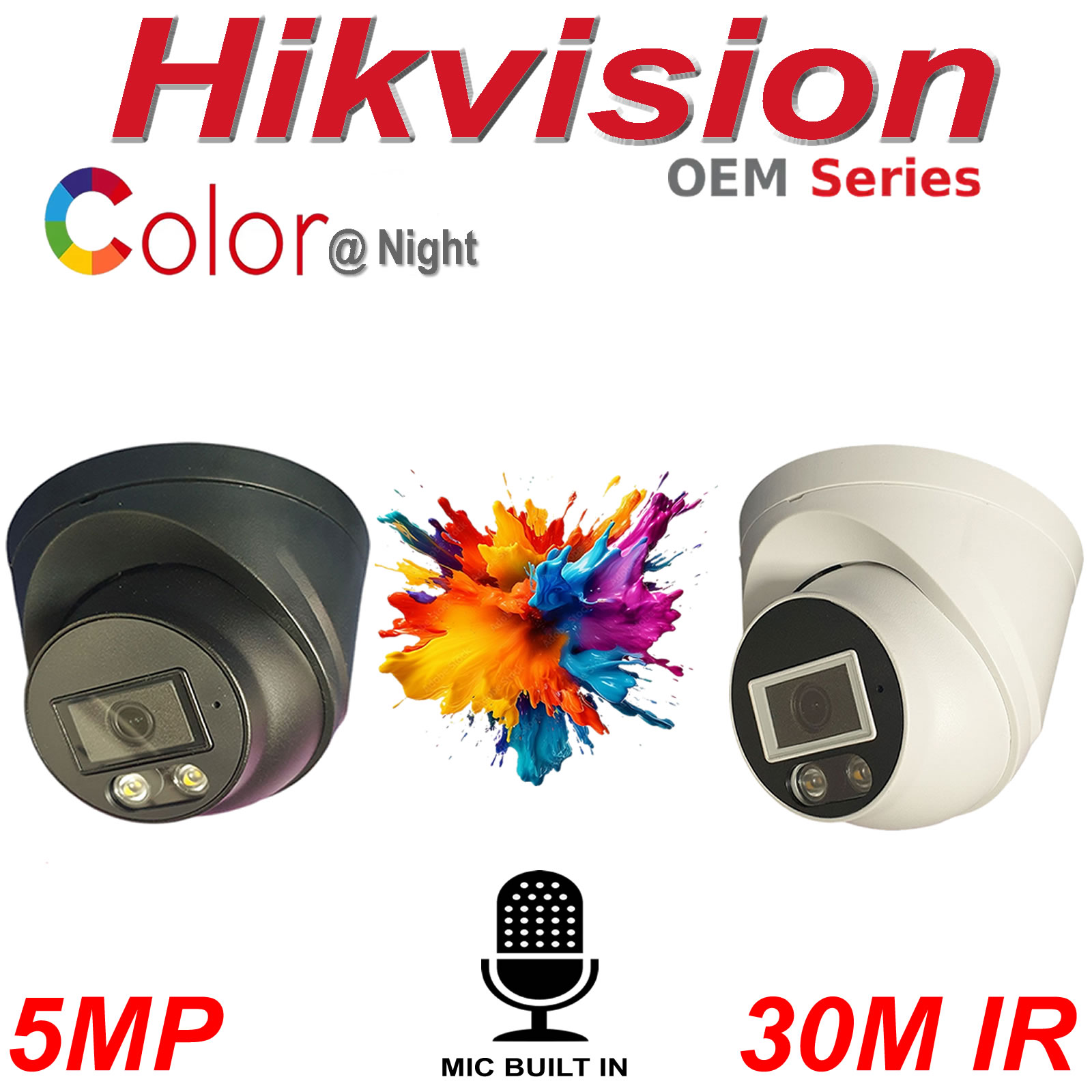

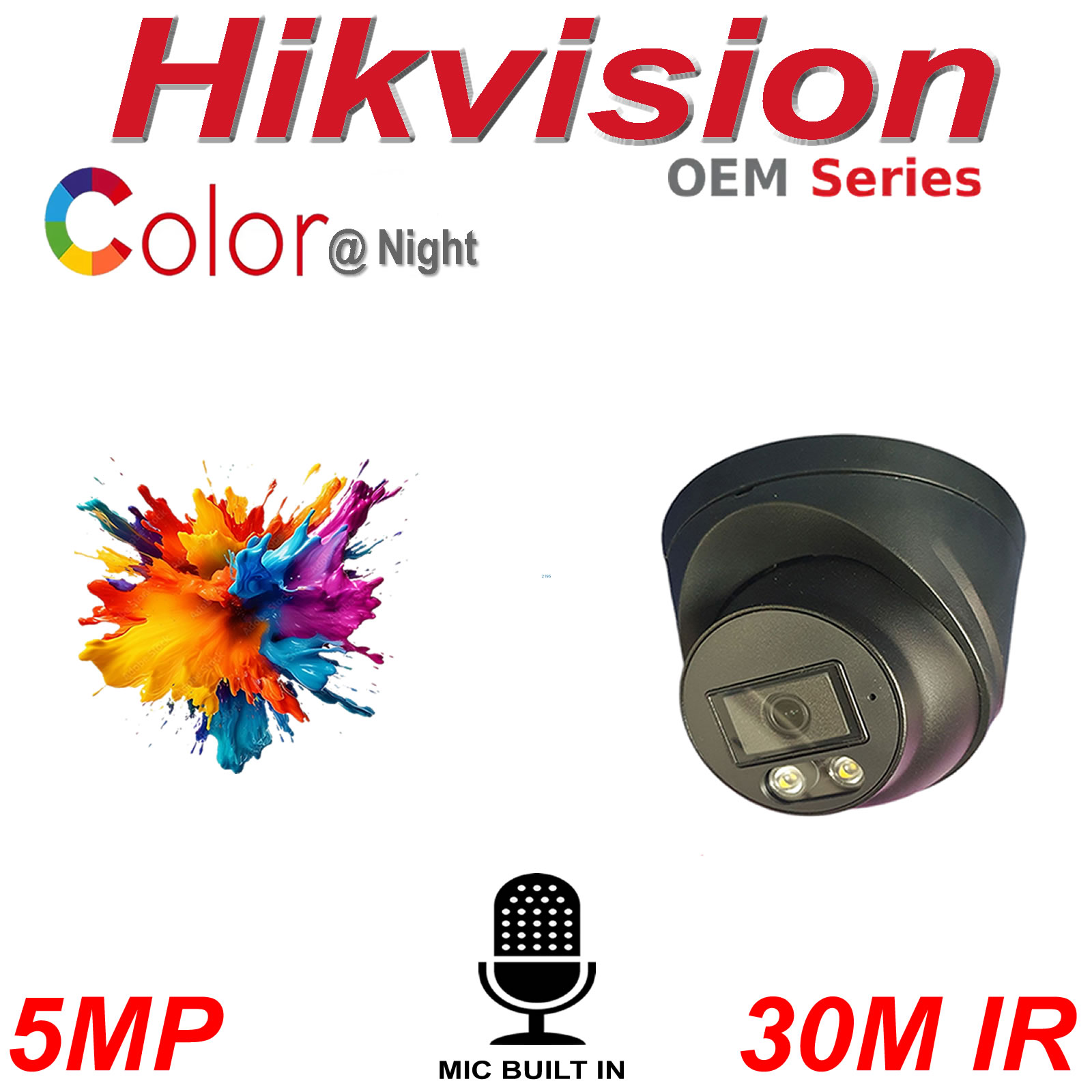

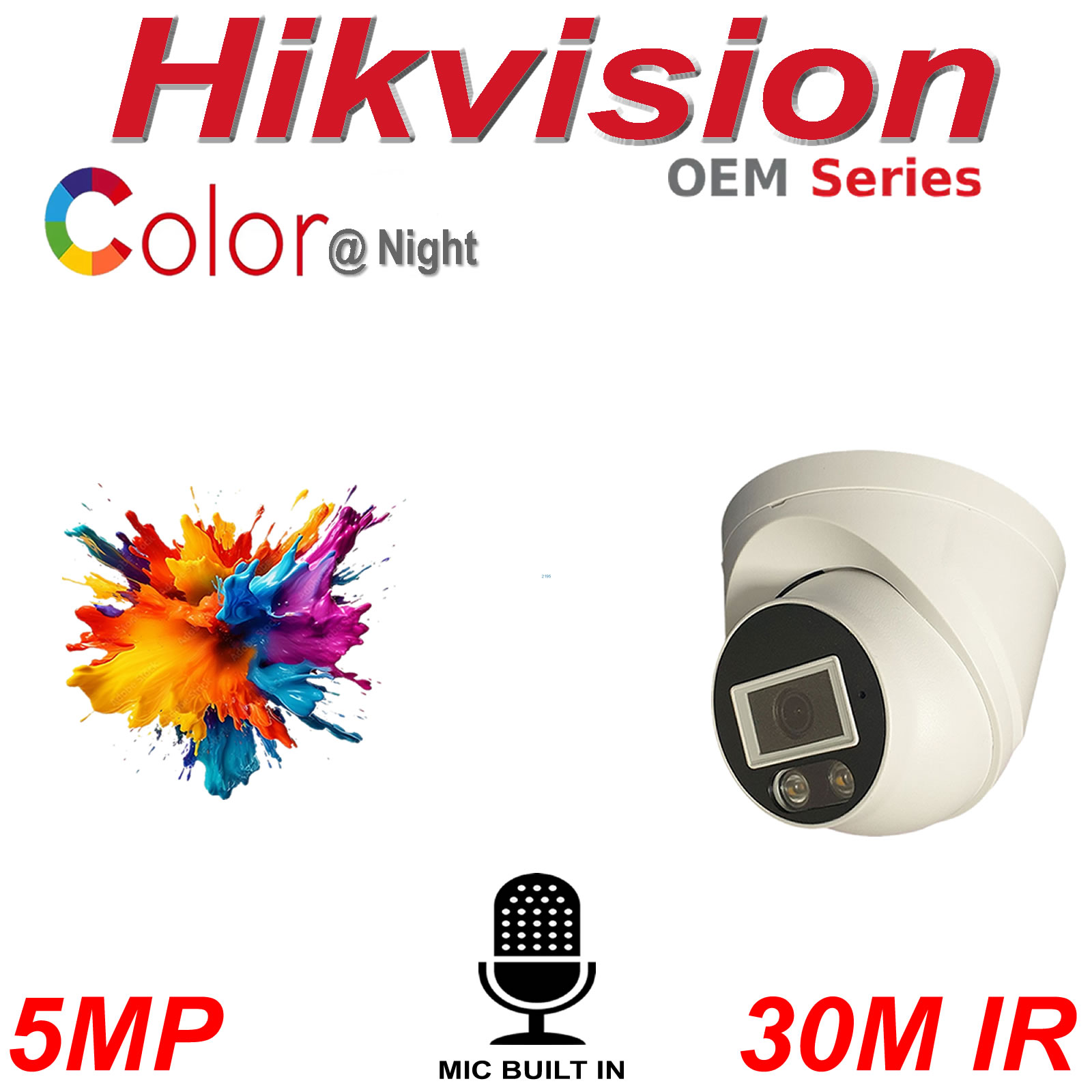

- 1x Hikvision OEM N509TW
Hikvision OEM N509TW Features:
- 5 MP full time colour turret camera
- 24/7 full coloru imaging
- Wide angle fixed focal lens
- Warm supplemental light with 30 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
- On Board Audio microphone
Hikvision OEM N509TW Specifications:
Camera
- Image Sensor: 1/2.5* Colour At Night CMOS sensor
- Signal System: PAL/NTSC
- Resolution: 5MP 2K
Frame Rate
- TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
- Min. illumination: 0.01 Lux/F1.2 White Light
- Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Slow Shutter: Max. 16 times
Lens
- Wide angle fixed lens: Horizontal Field of View
- Wide angle view
- Lens Mount: M16
- Strobe Light Alarm: Yes
- Day & Night: Colour
- WDR (Wide Dynamic Range): ≥50 dB
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
- White Light: Auto/Off
- Image Mode: STD/HIGH-SAT
- AGC: Yes
- Day/Night Mode: Colour
- White Balance: Auto/Manual
- AE (Auto Exposure) Mode: WDR/BLC/HLC/Global/HLS/Anti-banding
- Privacy Mask: 4 programmable privacy masks
- Motion Detection: 4 programmable motion areas
- Noise Reduction: 3D DNR
- Language: English
- Function: Brightness, Sharpness, Mirror, Smart Light
Interface
- Video Output
- Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
- Power Supply: 12 VDC ± 10%
- Approx. 556 g (1.25 lb.)
