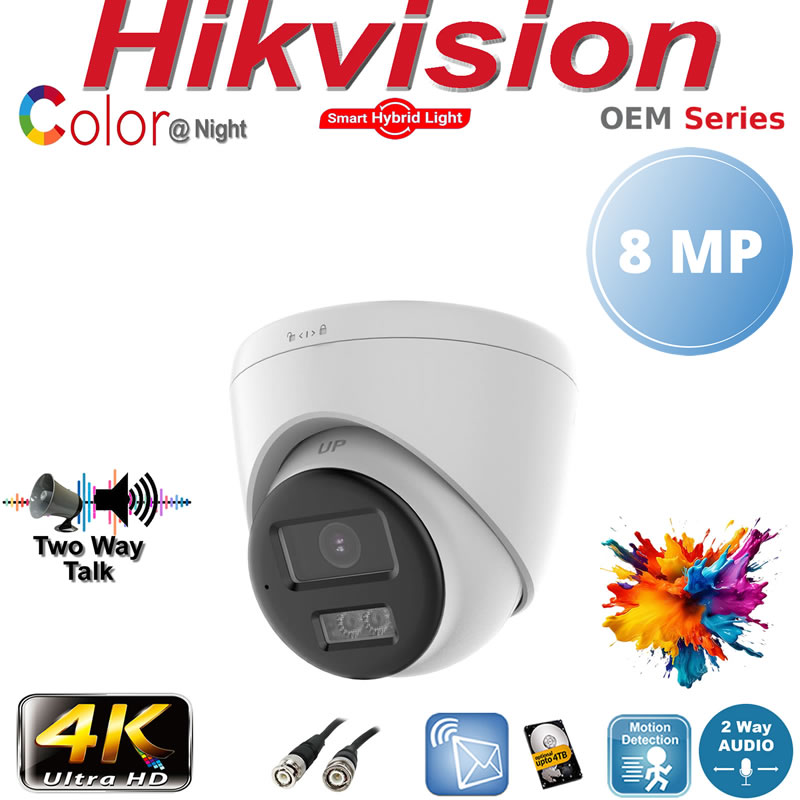

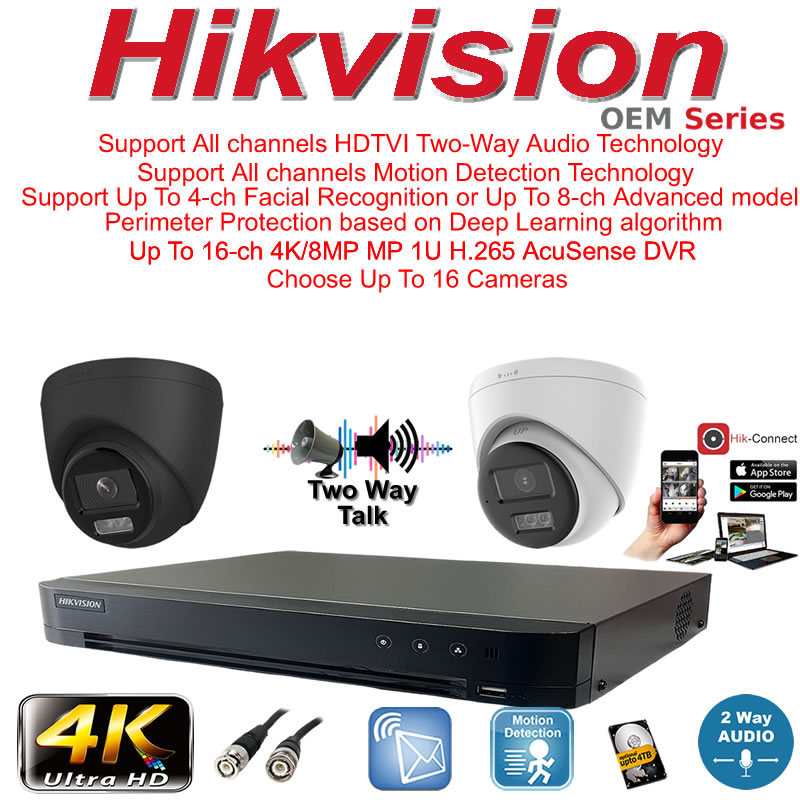

Hikvision OEM DS-2CE78U0T-LTS 8MP 4K Two Way Audio hybrid ColorVu Camera AI Human/Car Detection Intelligent DVR CCTV Security System

Facial Recognition

• Face Picture Library Up to 16 face picture libraries
• Face Picture Comparison

  Face picture comparison, face picture search;

  2-ch face picture comparison alarm (HD analog camera)

Perimeter Protection

• Human/Vehicle Analysis Up to 4-ch

Video and Audio

• IP Video Input 4-ch (up to 8-ch), each up to 8 MP
• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output

  1-ch, 2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS Input PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback 4-ch
• HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,2K(2304×1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate 32 Kbps to 10 Mbps
• Dual-stream Support main stream or sub stream
• Stream Type Video, Video & Audio
• Audio Compression G.711u
• Audio Bitrate 64 Kbps

Network

• Total Bandwidth 96 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection 32
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• Capacity up to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 2.0

• Alarm In/Out N/A (optional to support);4/1

General

• Power Supply 12 VDC, 1.5 A
• Consumption ≤ 10 W
• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
• ≤ 1.16 kg (2.6 lb

Facial Recognition

• Face Picture Library

  Up to 16 face picture libraries;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

• Face Picture Comparison (Captured from Camera) 4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

  it can classify human and vehicle, and extremely reduce false alarms caused by objects

  like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis Up to 8-ch (advanced model)

• Facial Detection
• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture

Video and Audio

• IP Video Input

  16-ch (up to 32-ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output

  1-ch, 4K (3840 × 2160)/30Hz,

  2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS Input PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous playback 16-ch
• HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Audio Input 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate 32 Kbps to 10 Mbps
• Dual-stream Support main stream or sub stream
• Stream Type Video, Video & Audio
• Audio Compression G.711u
• Audio Bitrate 64 Kbps

Decoding

• Decoding Capability up to 24-ch 1080P@30fps

Network

• Total Bandwidth 256 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection 128
• Network Interface

  1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA2 SATA interfaces
• Capacity Up to 12 TB capacity for each disk
• Serial Interface RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 2 × USB 3.0

• Alarm In/Out N/A (optional to support)

General

• Power Supply 12 VDC, 5 A
• Consumption ≤ 15 W (without HDD)
• Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H) 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
• Weight ≤ 2.1 kg (4.6 lb)

Camera

• Image Sensor 4K CMOS
• Max. Resolution 3840 (H) × 2160 (V)
• Min. Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light
• Shutter Time PAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s
• Day & Night ICR
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 105°, vertical FOV: 62°, diagonal FOV: 134°;

• Lens Mount M12

Microphone

• Pickup Distance In a radius of up to 5 m
• Amount 1

Speaker

• Rated Power 2 W
• Speaker Range In a radius of up to 5 m

Illuminator

• Supplement Light Type Smart, IR, White Light
• Supplement Light Range IR: Up to 40 m, White Light: Up to 40 m


• Image Settings

  Anti-banding,

  Brightness,

  Sharpness,

  Smart IR

• Frame Rate TVI: 8 MP @12.5 fps/15 fps, 3K@20 fps/25 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
• Day/Night Mode Auto/Color
• Wide Dynamic Range (WDR) Digital WDR
• Image Enhancement

  DWDR,

  BLC,

  HLC,

  Global

• Noise Reduction 2D DNR
• White Balance

  Auto,

  Manual

• Audio
• Audio Function Echo Cancellation, AI Noise Reduction, Automatic Gain Control

Inter

Hikvision DS-2CE78U0T-LTS

face

• Video Output 1 HD analog output

General

• Power 12 VDC ± 25%, max.6.8 W,*You are recommended to use one power adapter to supply the power for one camera.
• Material Main body: Metal; Enclosure: Plastic
• Dimension Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
• Approx. 375 g (0.81 lb.)
• Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• Communication HIKVISION-C
• Language English

Approval

• Protection IP67
