Details

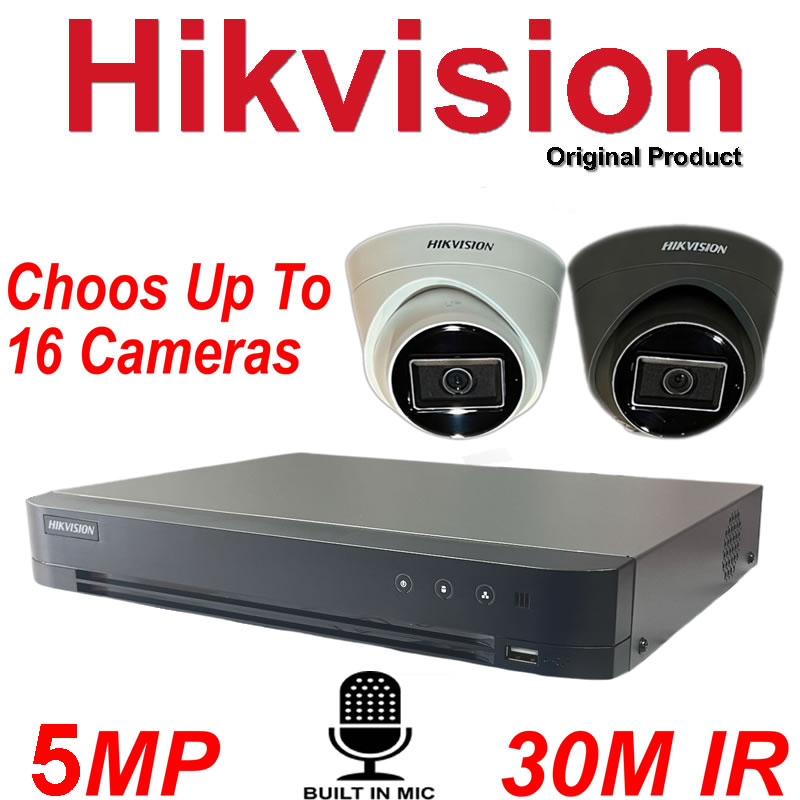

What is included?
- 1x 8MP Hikvision 4 or 8 or 16 Channel A.I Intelligent DVR
- 1x USB Mouse for the DVR Recorder
- Up To 16x Hikvsion 5MP DS-2CE78H0T-IT3FS
- 1x HDMI Cable (1.8m)
- 18M BNC Cable for each camera selected.
- Optional Pre-Fitted Hard Drive (Please select one at the top)
Hikvision iDS-7204HUHI-M1/P Features:
- Transmits both HDTVI video and power over the same coaxial cable
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8MP @8fps，5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 8 network cameras can be connected
Hikvision iDS-7208HUHI-M1 Features:
- 8 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected.
Hikvision iDS-7216HUHI-M2 Features:
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
- Up to 2 channels video stream (analogue channel) Perimeter Protection
- Up to 16 channels video stream (analogue channel) SMD Plus
- Up to 2 channels video stream (analogue channel) human face recognition
- IoT & POS functionalities
Hikvision DS-2CE78H0T-IT3FS Features:
- 8 MP full time colour turret camera
- 24/7 full coloru imaging
- 3.6 mm fixed focal lens
- Warm supplemental light with 25 m range
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Hikvision iDS-7204HUHI-M1/P Specifications:
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Line Crossing Detection/Intrusion Detection Up to 4-ch
Facial Detection
- Facial Detection and Capture Face picture detection, face picture search
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 10 Mbps
- Dual-stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Video and Audio
- IP Video Input
2-ch (up to 6-ch)
Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
4-ch;
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- PoC Camera Input
Support Hikvision PoC camera
- HDMI Output 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS Input PAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback 4-ch
- HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Video Output Mode HDMI/VGA simultaneous output
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Audio Input
4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network
- Total Bandwidth 96 Mbps
- Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection 32
- Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial Interface RS-485 (half-duplex)
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out 4/1
General
- Power Supply 48 VDC, 1.35 A
- Consumption ≤ 10 W
- Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight ≤ 2.2 kg (without HDD, 4.9 lb)
Hikvision iDS-7208HUHI-M1 Specifications:
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch
Facial Detection
- Facial Detection and Capture Face picture detection, face picture search
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 10 Mbps
- Dual-stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Video and Audio
- IP Video Input
4-ch (up to 12-ch)
Up to 8 MP resolution
Enhanced IP mode on:
8-ch (up to 16-ch), each up to 4 Mbps
;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback 8-ch
- HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- VGA Output
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
- HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
- Total Bandwidth 128Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection64
- Network Interface
1,RJ45 10M/100M/1000M self-adaptive
Ethernet interface
Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each disk
- Serial Interface RS-485 (half-duplex)
- USB Interface
1 × USB 2.0；
1 × USB 3.0
- Alarm In/Out N/A
General
- Power Supply 12 VDC
- Consumption ≤ 10 W
- Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weight≤ 2 kg (4.4 lb)
Hikvision iDS-7216HUHI-M2 Specifications:
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch
Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
Main stream:
8 MP@8 fps/5 MP@12 fps/3K@12 fps/4MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 10 Mbps
- Dual-Stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
Video And Audio
- IP Video Input
8-ch (up to 24-ch)
Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 16-ch
- HDTVI Input
8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,
1080p@30 fps, 1080p@25 fps, 720p@60 fps,
720p@50 fps, 720p@30 fps, 720p@25 fps
- AHD Input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Audio Input
1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)
16-ch via coaxial cable
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection 128
- Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Wi-Fi Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
- SATA 2 SATA interfaces
- Capacity Up to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
- Alarm In/Out N/A (optional to support)
General
- Power Supply 12 VDC, 5 A
- Consumption ≤ 19 W
- Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- ≤ 2.1 kg (4.6 lb)
Hikvision DS-2CE78H0T-IT3FS Specifications:
Camera
- Image Sensor 5 MP CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
- Signal System PAL/NTSC
Lens
- Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
- Lens Mount M12
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
Frame Rate
- TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 4MP@30fps, 4MP@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
- CVBS: PAL/NTSC
- Day/Night Mode Auto/ Color/ BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- White Balance ATW/MANUAL
AGC Support
Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
General
Material
- Enclosure: Plastic
- Main Body: Metal
- DimensionΦ 109.82 mm × 91.03 mm (Φ 4.32″ × 3.6″)
- Approx. 300 g (0.66 lb.)
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication HIKVISION-C
- Language English
- Power Supply: 12 VDC ± 25%
- *You are recommended to use one power adapter to supply the power for one camera.
Consumption
- Max. 3.7 W
- IR Range Up to 40 m
- Approval
- Protection IP67
