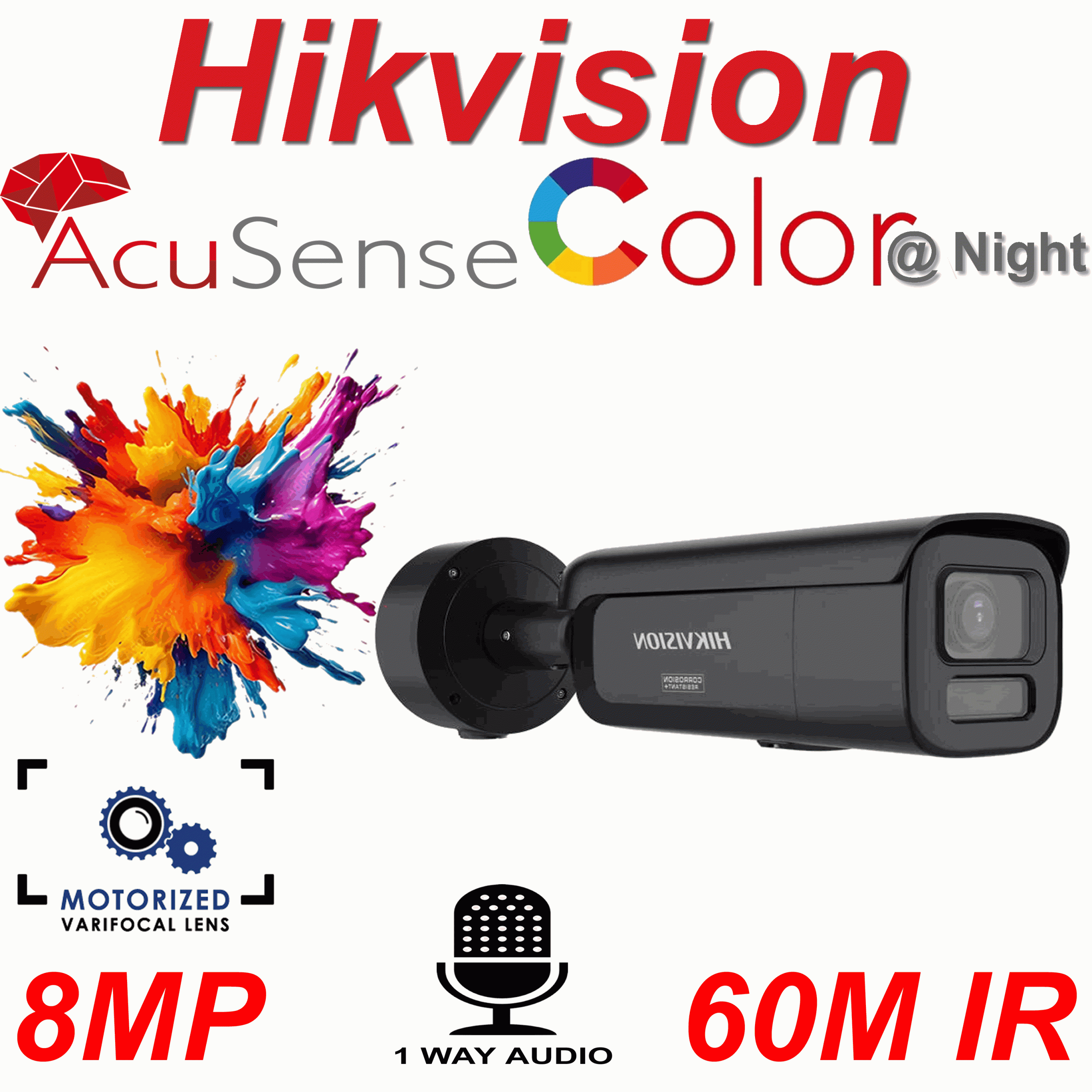

Hikvision DS-2CD2687G3-LIZSY 8MP Smart ColorVu Motorized Varifocal Dual Mic Alarm 4K IP CCTV Security Bullet Camera

Camera

• Image Sensor 1/1.8″ Progressive Scan CMOS
• Max. Resolution 3840 × 2160
• Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time 1 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
• Lens Mount Integrated
• Iris Type Fixed
• Aperture F1.2
• Depth of Field 1 m to ∞

DORI

• DORI

  Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

  Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m

Illuminator

• Supplement Light Type White Light, IR
• Supplement Light Range Up to 60 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

Video

• Main Stream

  50 Hz:

  25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR,VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region of Interest (ROI) 1 fixed region for main stream

Audio

• Audio Type Mono sound
• Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering Yes

Network

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Web Socket, Web Sockets, SRTP, SFTP
• Simultaneous Live View Up to 6 channels
• API ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client iVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+


• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
• SNR ≥ 52 dB
• Wide Dynamic Range (WDR)130 dB
• Image Stabilization EIS
• Privacy Mask 4 programmable polygon privacy masks

Interface

• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support micro SD/micro SDHC/micro SDXC card, up to 512 GB

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key Yes

Event

• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Smart Event Scene change detection
• Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function

• Face Capture Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General

• Power

  12 VDC ± 25%, 1.21 A, max. 14.5 W,two-core terminal block,reverse polarity protection,

  PoE: IEEE 802.3at, Class 4, max. 18 W

• Material Front cover: Metal, body: Metal, bracket: Metal
• Dimension Ø140 mm × 333.8 mm (Ø5.5″ × 13.1″)
• Package Dimension 386 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Approx. 1520 g (3.4 lb.)
• With Package Weigh tApprox. 2326 g (5.1 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment CE-RoHS: 2011/65/EU
• Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)
