Description

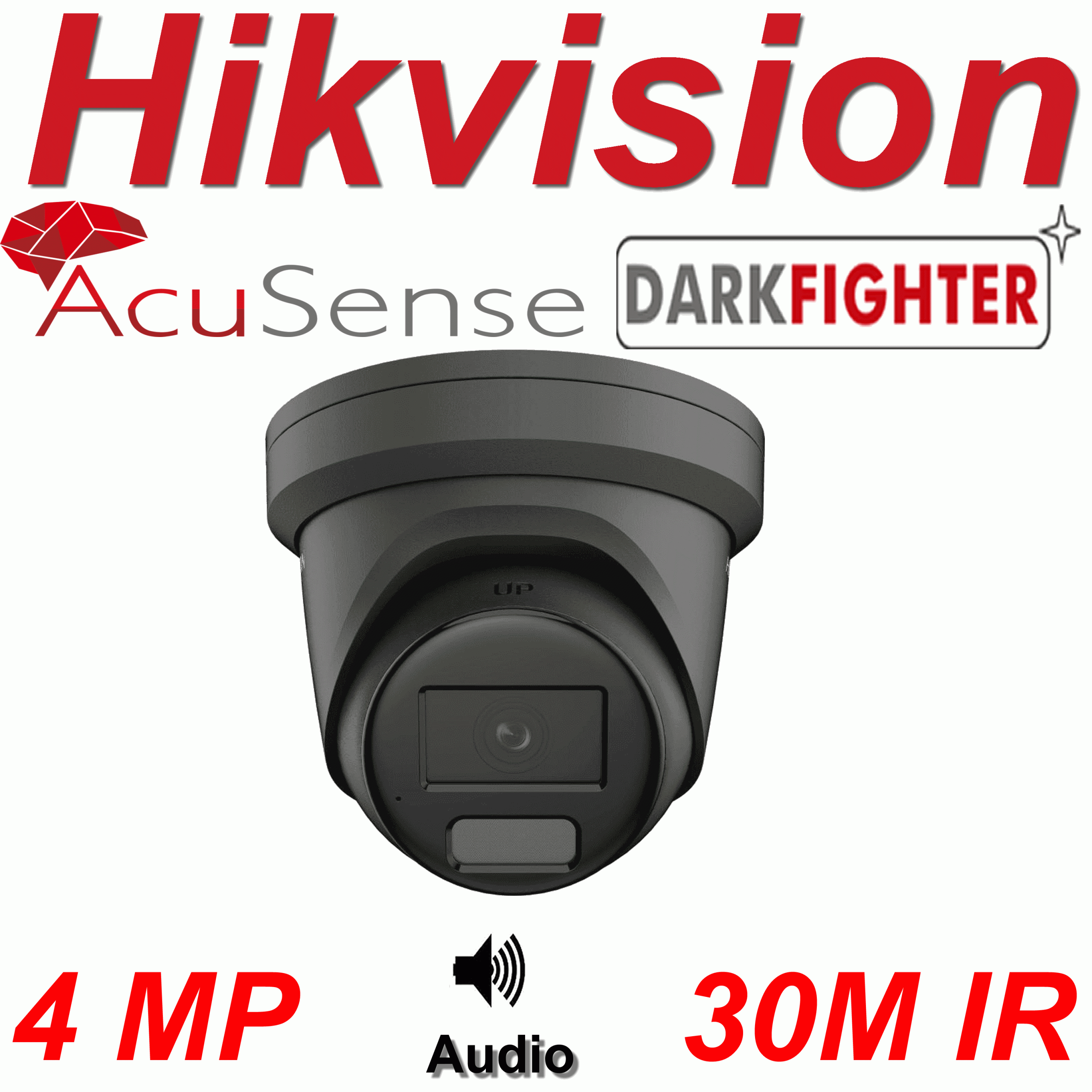

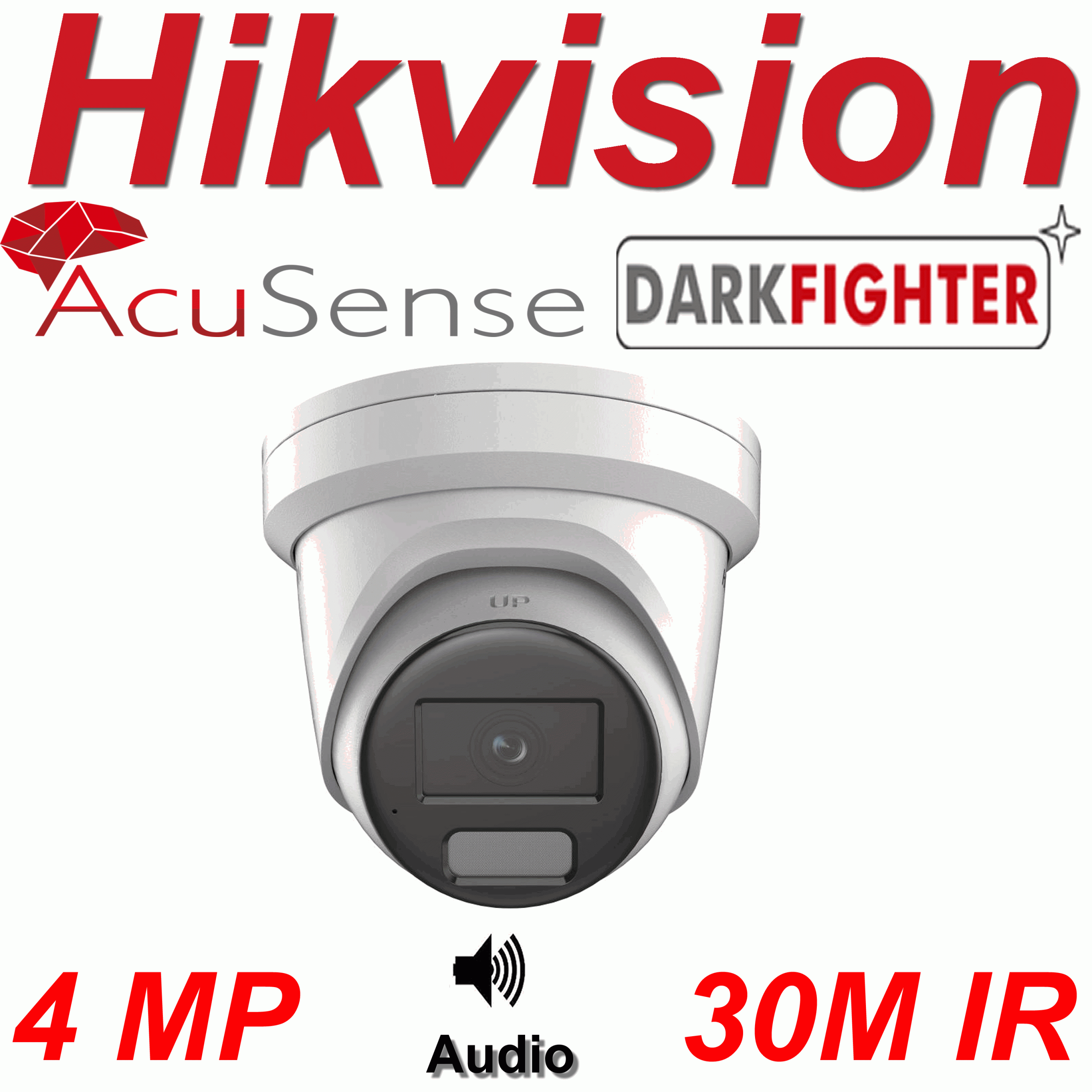

Hikvision DS-2CD2346G2H-IU 4MP DarkFighter AcuSense Turret Camera
The Hikvision DS-2CD2346G2H-IU combines detailed 4MP video, low-light imaging and built-in audio for home and business security. Its 1/3-inch sensor and F1.0 aperture help capture useful detail as light levels fall, while the IP67 metal housing supports suitable indoor and outdoor installations.
As a Hikvision AcuSense turret camera, it uses human and vehicle classification to help focus supported event alerts on relevant activity. Up to 30m infrared illumination provides coverage in darkness, and 120dB WDR helps balance bright and shaded areas. This Hikvision DarkFighter PoE camera also carries power and data over one network cable when connected to compatible PoE equipment, making it practical for new systems and camera upgrades.
Key Features
- ✓ 4MP resolution: This Hikvision 4MP turret IP camera captures detailed footage at up to 2688 × 1520.
- ✓ Powered-by-DarkFighter imaging: A 1/3-inch sensor and F1.0 aperture support monitoring in low light.
- ✓ AcuSense human and vehicle detection: Filter supported motion and perimeter events by target type.
- ✓ Built-in microphone: Capture sound alongside live video and recordings when audio is enabled.
- ✓ Up to 30m infrared night vision: Monitor in darkness with black-and-white IR imaging.
- ✓ Wide 2.8mm lens: A 100.2° horizontal view helps cover entrances and access areas.
- ✓ 120dB WDR: Improve visibility in scenes containing strong backlighting and shadows.
- ✓ Flexible recording: Connect to a compatible NVR or use a separately purchased microSD card up to 512GB.
- ✓ H.265+ compression: Help manage storage and bandwidth requirements with compatible recording settings.
- ✓ PoE or 12V DC power: Choose the power connection that suits your installation.
- ✓ IP67 metal housing: Water and dust resistance for suitable outdoor mounting positions.
Why Choose This Product?
The Hikvision DS-2CD2346G2H-IU brings together high-resolution video, recorded audio and useful event filtering in a compact turret design. It suits entrances, driveways, shops and workplaces where you want to review activity clearly and reduce irrelevant movement alerts.
Choosing a Hikvision turret camera with microphone adds sound to supported recordings, providing more context when reviewing an event. PoE connectivity and a choice of network or onboard recording also make it straightforward to plan around your existing security equipment.
4MP Detail and DarkFighter Low-Light Imaging
This Hikvision 4MP turret IP camera captures up to 2688 × 1520 resolution, with full-resolution video at up to 25fps in 50Hz mode or 30fps in 60Hz mode. Its 2.8mm fixed lens provides a 100.2° horizontal field of view, helping cover entrances, driveways and shop floors.
Powered-by-DarkFighter technology combines a 1/3-inch progressive scan CMOS sensor with an F1.0 aperture to make use of available light. This helps retain scene detail in dim conditions around entrances, external access routes and other areas where lighting changes throughout the day.
AcuSense Human and Vehicle Detection
This Hikvision AcuSense turret camera uses deep-learning classification to distinguish human and vehicle targets in supported events. Configure motion detection or perimeter rules around the parts of your property that need attention, helping reduce alerts from less relevant movement.
Supported perimeter functions include line crossing, intrusion, region entrance and region exiting. Available event handling and recording functions depend on the connected equipment, firmware and configuration.
Built-in Microphone for Audio Recording
A Hikvision turret camera with microphone can capture sound alongside video during supported live viewing and playback. Enable the audio stream and audio recording settings on the camera and compatible recorder to use this function.
The built-in microphone provides one-way audio capture, with environmental noise filtering to help manage background sound. Recorded audio quality depends on camera placement and the surrounding environment.
Infrared Night Vision and 120dB WDR
850nm infrared illumination supports black-and-white monitoring at distances up to 30m. The detail available depends on the scene, installation height and distance to the subject; the illumination range is not a guaranteed identification distance.
During daylight or in strongly backlit areas, 120dB wide dynamic range helps balance bright backgrounds and shaded foregrounds. This is useful around doorways, windows and entrances where lighting can vary within the same image.
PoE Connections and Flexible Recording
This Hikvision DarkFighter PoE camera supports IEEE 802.3af PoE, allowing a compatible NVR, switch or injector to supply power through the network cable. A suitable 12V DC supply can also be used where separate power is preferred.
Record centrally through a compatible NVR or use the onboard memory-card slot with a microSD, microSDHC or microSDXC card up to 512GB. Storage devices are sold separately. H.265+ compression helps manage recording space and bandwidth when supported by the chosen configuration.
Hik-Connect supports remote viewing when the camera or connected recording system is correctly configured for network access. Off-site viewing requires an internet connection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | DS-2CD2346G2H-IU |
| Camera Type | Fixed turret network camera with built-in microphone |
| Maximum Resolution | 4MP: 2688 × 1520 |
| Frame Rate at 4MP | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| Image Sensor | 1/3-inch progressive scan CMOS |
| Low-Light Technology | Powered-by-DarkFighter |
| Lens | 2.8mm fixed focal lens |
| Field of View | Horizontal 100.2°; vertical 54.7°; diagonal 119.7° |
| Aperture | F1.0 |
| Minimum Illumination | Colour: 0.001 lux at F1.0, AGC on; black and white: 0 lux with IR |
| Shutter Speed | 1/3 second to 1/100,000 second |
| Day and Night | IR-cut filter with day, night, automatic and scheduled switching |
| Infrared Illumination | Up to 30m; 850nm wavelength |
| Wide Dynamic Range | 120dB WDR |
| Image Enhancement | BLC, HLC and 3D DNR |
| Audio | Built-in microphone for one-way audio capture; environmental noise filtering |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC-LC |
| Video Compression | Main stream: H.265+, H.265, H.264+, H.264; sub-stream: H.265, H.264, MJPEG |
| Video Bit Rate | 32Kbps to 8Mbps |
| Motion Detection | Human and vehicle target classification for supported alarm triggers |
| Perimeter Protection | Line crossing, intrusion, region entrance and region exiting with human and vehicle filtering |
| Face Capture | Supported; separate from face recognition or identity matching |
| Additional Events | Video tampering, exception and scene change detection |
| Privacy Masks | Four programmable polygon areas |
| Supported Clients | Hik-Connect, iVMS-4200 and Hik-Central |
| Onboard Storage | microSD, microSDHC or microSDXC card up to 512GB; card sold separately |
| Network Interface | 1 × RJ45 10/100Mbps Ethernet port |
| Integration | ONVIF Profiles S, G and T; ISAPI; SDK |
| PoE Power | IEEE 802.3af, Class 3; maximum 9W |
| 12V DC Power | 12V DC ±25%, 0.6A; maximum 7.2W |
| Weather Protection | IP67 |
| Housing | Metal cover and main body |
| Position Adjustment | Pan 0°–360°; tilt 0°–75°; rotation 0°–360° |
| Operating Conditions | -30°C to +60°C; humidity up to 95%, non-condensing |
| Dimensions | 138.3mm diameter × 115.4mm height |
| Weight | Approximately 550g |
Official Datasheet
Download the official Hikvision DS-2CD2346G2H-IU datasheet for detailed specifications, supported functions, dimensions and mounting information.
Download Official Datasheet (PDF)
What’s Included
- 1 × Hikvision DS-2CD2346G2H-IU turret IP camera.
Recorder, recording storage, network cable, power supply, monitor and mounting junction box are sold separately. Choose compatible PoE equipment or a suitable 12V DC supply to power the camera.
Ideal For
- Homes and driveways: Monitor entrances, parked vehicles and access routes.
- Shops and offices: Record detailed activity around doorways and customer or staff areas.
- Commercial premises: Monitor suitable indoor and outdoor areas with video, audio and event filtering.
- Existing IP CCTV systems: Add or replace a camera where the recorder supports the required resolution, bandwidth and functions.
Installation & Compatibility
Power and cabling: Connect to compatible IEEE 802.3af PoE equipment using suitable network cable, or use a 12V DC supply. Allow for the camera’s maximum 9W PoE requirement when planning the total power budget.
Recording and smart events: Use an NVR that supports 4MP IP cameras and the selected compression format. Check incoming bandwidth, playback capacity and support for the camera’s event functions. AcuSense integration depends on recorder model, firmware and settings.
Audio setup: Enable audio on the camera and recording equipment if you want sound included in footage. The camera’s microphone provides one-way audio recording.
Camera mounting: The optional Hikvision DS-1280ZJ-DM21 junction box provides space for cable connections. Confirm fit with the exact camera housing before ordering and choose a suitable finish.
Outdoor installation: Mount the camera securely and protect cable joints, power connections and network connections from moisture. The IP67 camera rating does not replace suitable weatherproofing of exposed connections.
Complete Your Installation
Build your system with the Hikvision DS-7604NXI-K1/4P PoE NVR, a 20m outdoor solid-copper CAT5 network cable and the Uniview MW3222-V-DT Full HD monitor for local viewing from the recorder. The monitor displays footage at its supported resolution while the recording system can retain 4MP video. The optional DM21 junction box helps house cable connections; confirm its fit with your camera before purchase. These accessories are sold separately.
Hikvision DS-7604NXI-K1/4P NVR20m Outdoor CAT5 Network CableUniview MW3222-V-DT MonitorHikvision DS-1280ZJ-DM21 Base
