Description
- ✓ 8MP 3840 × 2160 IP turret camera
- ✓ Wide-angle 2.8mm fixed lens with 113° horizontal view
- ✓ Smart Hybrid Light with IR and white light up to 30m
- ✓ Human and vehicle detection
- ✓ Built-in microphone and speaker for two-way audio
- ✓ microSD card support up to 512GB
- ✓ PoE and IP67 weather protection

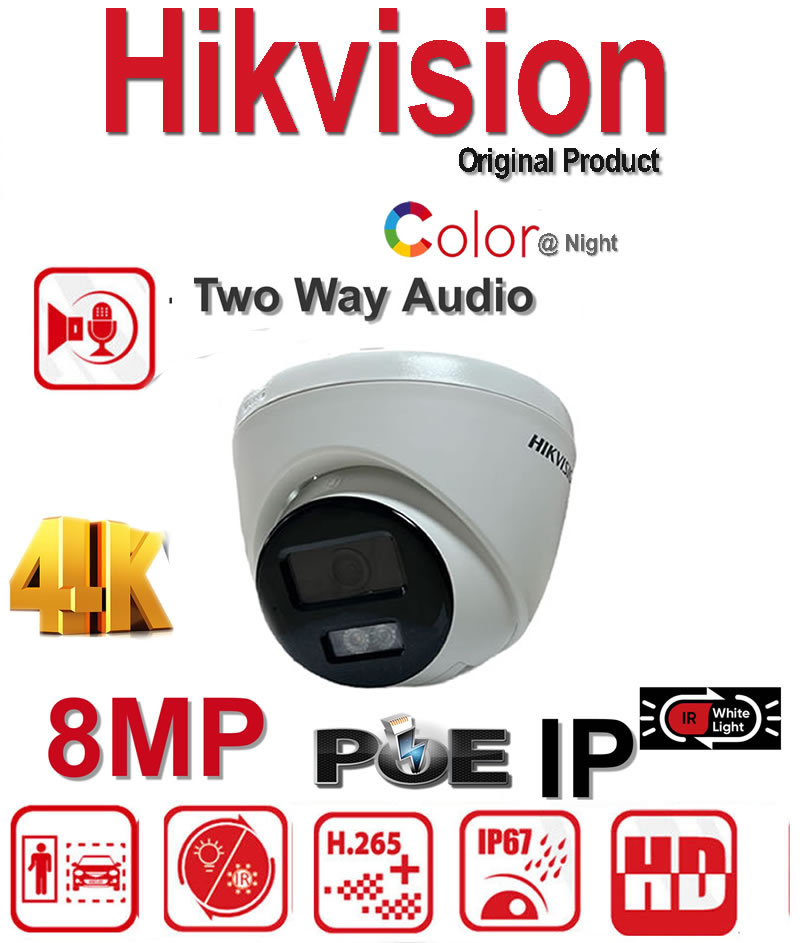

Hikvision DS-2CD1383G2-LIUF/SL 8MP Smart Hybrid Light Turret IP Camera
The Hikvision DS-2CD1383G2-LIUF/SL is an 8MP fixed turret network camera designed for high-resolution home and commercial CCTV installations.
It delivers video at up to 3840 × 2160 resolution and this version is supplied with a wide-angle 2.8mm fixed lens, providing a 113° horizontal field of view.
Hikvision Smart Hybrid Light technology combines infrared and white supplementary lighting, while intelligent human and vehicle detection helps reduce unwanted alerts.
The built-in microphone and speaker provide genuine two-way audio, and local recording is supported through a microSD card slot with capacity up to 512GB.
Key Features
- 8MP resolution up to 3840 × 2160
- 1/2.7″ Progressive Scan CMOS sensor
- 2.8mm fixed lens
- 113° horizontal field of view
- F2.0 aperture
- Smart Hybrid Light technology
- Infrared and white supplementary light up to 30 metres
- Human and vehicle detection
- Built-in microphone and speaker
- Two-way audio
- Flashing light and audible warning capability
- 120dB WDR
- H.265+ efficient video compression
- microSD card support up to 512GB
- IEEE 802.3af PoE
- IP67 weather protection
8MP 4K Image Quality
The DS-2CD1383G2-LIUF/SL provides a maximum resolution of
3840 × 2160, giving substantially more image detail than lower-resolution CCTV cameras.
This can be especially useful when reviewing people, vehicles, clothing and activity within the monitored scene.
2.8mm Wide-Angle Fixed Lens
This camera is supplied with the 2.8mm fixed lens version.
It provides an approximate 113° horizontal, 62° vertical and 134° diagonal field of view.
The wide field of view makes it particularly suitable for entrances, driveways, shop floors, offices, gardens and other locations where broad scene coverage is required.
Smart Hybrid Light – IR & White Light
Hikvision Smart Hybrid Light technology gives the camera access to both
infrared and white supplementary lighting, with an illumination range of up to 30 metres.
Infrared can provide discreet black-and-white night monitoring, while white supplementary light can provide visible illumination when required.
Smart Supplement Light helps the camera manage its illumination according to the configured operating mode and scene.
Human & Vehicle Detection
The camera supports motion detection with classification of specified targets as
human or vehicle.
This can help reduce unnecessary alerts caused by movement that is not relevant to the user when detection is correctly configured.
Built-In Two-Way Audio
Unlike microphone-only cameras, the Hikvision DS-2CD1383G2-LIUF/SL includes both a
built-in microphone and built-in speaker.
This allows compatible two-way audio communication through supported Hikvision equipment and software.
The speaker can also be used for audible warning functions when suitable event rules are configured.
Flashing Light & Audible Warning
The camera supports a built-in flashing light together with audible warning through the integrated speaker.
These functions can be linked to supported camera events to provide a visible and audible deterrent when required.
120dB Wide Dynamic Range
Built-in 120dB WDR helps improve image detail where a scene contains both bright and dark areas, such as entrances, windows, doorways and other strongly backlit locations.
Local microSD Recording
The built-in memory card slot supports
microSD, microSDHC and microSDXC cards up to 512GB.
This allows local edge recording in addition to recording to a compatible Hikvision NVR or network storage system.
Technical Specifications
| Model | DS-2CD1383G2-LIUF/SL |
| Camera Type | 8MP Smart Hybrid Light Fixed Turret Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Lens | 2.8mm Fixed Lens |
| Field of View | Horizontal 113° / Vertical 62° / Diagonal 134° |
| Aperture | F2.0 |
| Minimum Illumination | Colour: 0.01 Lux @ F2.0, AGC ON / B&W: 0 Lux with IR |
| Supplement Light | IR + White Light / Smart Hybrid Light |
| Light Distance | Up to 30 metres |
| Wide Dynamic Range | 120dB WDR |
| Main Stream | Up to 12.5fps at 3840 × 2160 (50Hz) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Detection | Human and vehicle detection |
| Audio | Built-in microphone and built-in speaker / two-way audio |
| Warning Functions | Flashing light and audible warning |
| Storage | microSD / microSDHC / microSDXC up to 512GB |
| Network | RJ45 10/100 Mbps Ethernet |
| PoE | IEEE 802.3af, Class 3, maximum 9.5W |
| 12V DC Power | 12V DC ±25%, maximum 8W |
| Weather Protection | IP67 |
| Construction | Metal & Plastic |
| Dimensions | Ø110 × 102.7mm |
| Weight | Approx. 385g |
| Operating Temperature | -30°C to +60°C |
Official Hikvision Datasheet
View the official Hikvision DS-2CD1383G2-LIUF/SL datasheet for the complete manufacturer specification.
What’s Included
- 1 × Hikvision DS-2CD1383G2-LIUF/SL 8MP turret IP camera – 2.8mm lens
Ideal For
- Homes and residential CCTV systems
- Shops and retail premises
- Offices and reception areas
- Warehouses and industrial units
- Entrances and doorways
- Driveways and gardens
- Commercial premises
Installation & Compatibility
The Hikvision DS-2CD1383G2-LIUF/SL connects using a standard RJ45 Ethernet connection and supports
IEEE 802.3af PoE, allowing compatible PoE NVRs or switches to provide both network data and camera power through one Ethernet cable.
The 2.8mm lens is a fixed wide-angle lens, so the required viewing area should be considered when choosing the camera position.
For remote viewing and playback, the camera can be used with compatible Hikvision equipment and Hik-Connect.
Complete Your Installation
1. Hikvision 4-Channel PoE NVR
Hikvision DS-7604NXI-K1/4P Network Video Recorder
2. Compatible Hikvision Junction Box
Hikvision DS-1280ZJ-TR13 Junction Box
3. 20m Outdoor CAT5 Network Cable
20m Outdoor CAT5 Solid Copper Network Cable
4. CCTV Monitor
Uniview MW3222-V-DT CCTV Monitor
Need Help With the Hikvision DS-2CD1383G2-LIUF/SL?
If you need help checking NVR compatibility, selecting the correct mounting accessory or planning your CCTV installation, contact our team before ordering.
