Description
What is included:
- 1x Hikvision 4 or 8 or 16 Channel AI NVR
- 1x USB Mouse for the NVR Recorder
- Up To 16x Hikvison 8MP DS-2CD1383G2-LIUF-SL
- 1x HDMI Cable (1.8m)
- 20M Cat5 Cable for each camera selected. ( let us know if you don’t need cable we will refund you for them )
- Optional Pre-Fitted Hard Drive
Hikvision DS-7604NxI-K1/4P Features:
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Hikvision DS-7608NXI-K1/8P Features:
- Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
- Adopt Hikvision Acusense Technology to minimize manual effort and security costs
Hikvision DS-7616NXI-K2/16P Features:
- Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Hikvision DS-7604NXI-K1/4P Specifications:
Intelligent Analytics
- AI By Device Facial recognition, perimeter protection, motion detection 2.0
- AI By Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
- Face Attributes N/A
- Facial Detection And Analytics Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB);Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection And Analytics Performance1-ch, 4 MP;1-ch, 8 MP
- Face Picture Comparison (Captured From Camera)2-ch
Motion Detection 2.0
- By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By Camera All channels
Perimeter Protection
- By Device 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera All channels
Video And Audio
- IP Video Input 4-ch
- Incoming Bandwidth 40 Mbps
- Outgoing Bandwidth 80 Mbps
- HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI1/VGA simultaneous output
- CVBS Output N/A
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding Format H.265/H.265+/H.264+/H.264
- Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 4-ch
- Decoding Capability
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream Type Video, Video & Audio
- Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
- Remote Connection 128
- API ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power ≤ 50 W
- Standard IEEE 802.3af/at
Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 10 TB capacity for each HDD
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out 4/1;N/A ;N/A (4/1 is optional)
General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply 48 VDC, 1.35 A
- Consumption ≤ 10 W (without HDD and PoE off)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
- Weight ≤ 1 kg (without HDD, 2.2 lb.)
Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS;CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA
Hikvision DS-7608NXI-K1/8P Specifications:
Intelligent Analytics
- AI By Device Facial recognition, perimeter protection, motion detection 2.0
- AI By Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
- Facial Detection And Analytics Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection And Analytics Performance 1-ch, 8 MP
- Face Picture Comparison 4-ch
Motion Detection 2.0
- By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By Camera All channels
Perimeter Protection
- By Device 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera All channels
Video And Audio
- IP Video Input 8-ch
- Incoming Bandwidth 80 Mbps
- Outgoing Bandwidth 160 Mbps
- HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI/VGA independent output
- CVBS Output N/A
- Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)
Decoding
- Decoding Format H.265/H.265+/H.264+/H.264
- Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 8-ch
- Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- Stream Type Video, Video & Audio
- Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
- Remote Connection 128
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power ≤ 80 W
- Standard IEEE 802.3af/at
Auxiliary Interface
- SATA 1 SATA interfaces
- Capacity Up to 10 TB capacity for each HDD
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out 4/1
General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply48 VDC, 2.5 A
- Consumption≤ 15 W (without HDD, and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
- Weight≤ 3 kg (without HDD, 6.6 lb.)
Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
Hikvision DS-7616NXI-K2/16P Specifications:
Intelligent Analytics
- AI By Device Facial recognition, perimeter protection, motion detection 2.0
- AI By Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
- Facial Detection And Analytics Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection And Analytics Performance 1-ch, 8 MP
- Face Picture Comparison 4-ch
Motion Detection 2.0
- By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By Camera All channels
Perimeter Protection
- By Device 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By Camera All channels
Video And Audio
- IP Video Input 16-ch
- Incoming Bandwidth 160 Mbps
- Outgoing Bandwidth 160 Mbps
- HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI/VGA independent output
- CVBS Output N/A
- Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)
Decoding
- Decoding Format H.265/H.265+/H.264+/H.264
- Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback 16-ch
- Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
Network
- Remote Connection 128
- API ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- Standard IEEE 802.3af/at
Auxiliary Interface
- SATA 2 SATA interfaces
- Capacity Up to 10 TB capacity for each HDD
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out 4/1
General
- GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
- Weight≤ 3 kg (without HDD, 6.6 lb.)
Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

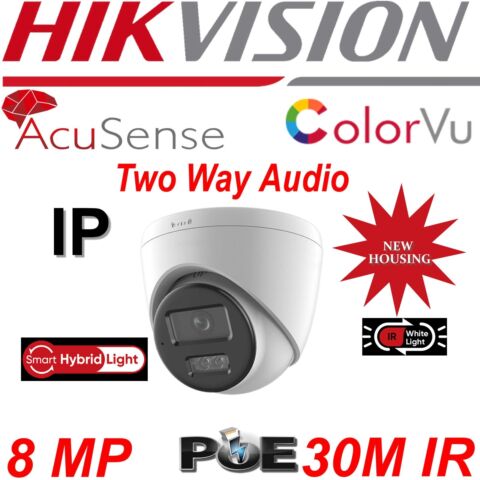

Hikvision DS-2CD1383G2-LIUF-SL Features:
Camera
- Image Sensor 1/2.7″ Progressive Scan CMOS
- Max. Resolution 3840 × 2160
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
- Lens Mount M12
- Iris Type Fixed
- Aperture F2.0
DORI
- DORI
2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
Illuminator
- Supplement Light Type IR, White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
Video
- Main Stream
50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile, Main Profile, High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Region of Interest (ROI) 1 fixed region for main stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
Audio
- Audio Type Mono sound
- Audio Sampling Rate 8 kHz/16 kHz
- Environment Noise Filtering Yes
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client iVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Wide Dynamic Range (WDR) 120 dB
- SNR≥ 52 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask 4 programmable polygon privacy masks
Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/microSD HC/microSD XC card, up to 512 GB
- Built-in Microphone Yes,1 built-in microphone
- Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reset Key Yes
Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
General
- Power
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.5 W
- Material Metal & Plastic
- Dimension Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
- Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- Weight Approx. 385 g (0.85 lb.)
- With Package Weight Approx. 586 g (1.3 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Heartbeat, anti-banding, mirror, password protection, password reset via email
- Flashing Light Yes
Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
Reviews
There are no reviews yet.
