Hikvision 3K ColorVu CCTV kit with DS-2CE72K0T-LFS Audio Cameras Smart Hybrid Light 40M IR and AcuSense DVR with AI Facial Recognition

Add to wishlist
SKU: Hikvision iDS-7204HQHI-M1/XT, iDS-7208HQHI-M1/XT, iDS-7216HQHI-M1/XT, DS-2CE78K0T-LFS Categories: , , , ,

Description

What is included?

  • 1x 3K Hikvision 4 or 8 or 16 Channel A.I Intelligent DVR
  • 1x USB Mouse for the DVR Recorder
  • Up To 16x 3K Hikvsion DS-2CE72K0T-LFS Smart Hybrid Light
  • 1x HDMI Cable (1.8m)
  • 18M BNC Cable for each camera selected.
  • Power Supply and Splitter
  • Optional Pre-Fitted Hard Drive (Please select one at the top)

Hikvision iDS-7204HQHI-M1/XT Features:

  • 4 channels and 1 HDD 1U AcuSense DVR
  • Support 1-ch Facial Recognition or 2-ch Advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 2-ch AcuSearch Technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K/5MP Lite @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6-ch network cameras can be connected
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology

Hikvision iDS-7208HQHI-M1/XT Features:

  • 8 channels and 1 HDD 1U AcuSense DVR
  • Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 4-ch AcuSearch Technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K/5M Lite @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 -ch network cameras can be connected
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology

Hikvision iDS-7216HQHI-M1/XT Features:

  • 16 channels and 1 HDD 1U AcuSense DVR
  • Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 8-ch AcuSearch Technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K/5MP Lite@12fps
  • Up to 24-ch IP camera inputs, each channel up to 6MP
  • Up to 24*1080P@30fps decoding ability
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology

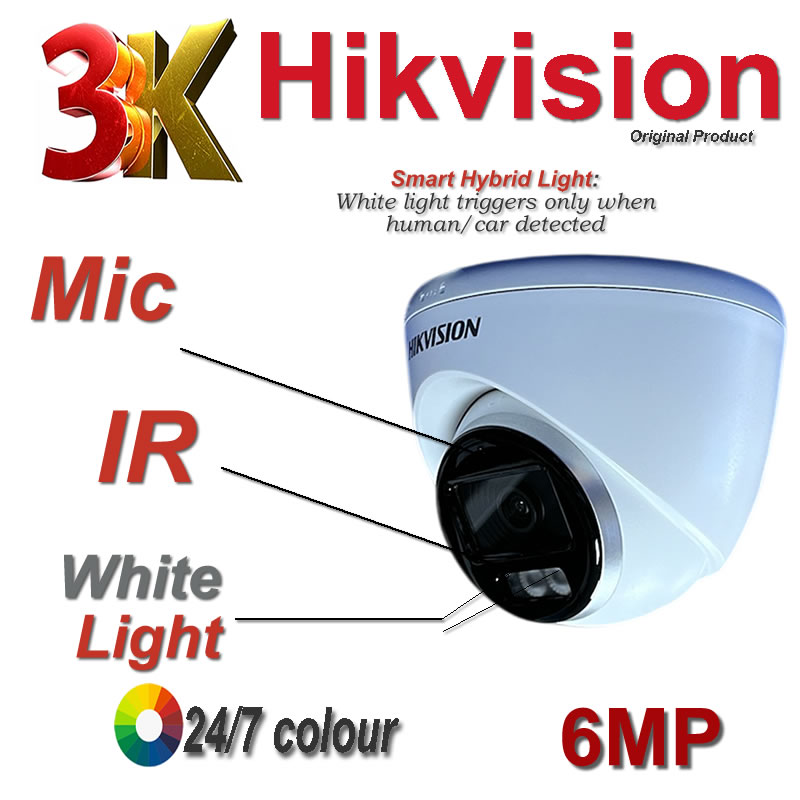

Hikvision DS-2CE72K0T-LFS Features:

  • High quality imaging with 3K, 2960 × 1665 resolution
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 40 m IR distance for bright night imaging
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS）
  • Water and dust resistant (IP67)
  • High quality audio with audio over coaxial cable, built-in mic
  • Smart-Hybrid light, optimize your security with flexible lighting options

Hikvision iDS-7204HQHI-M1/XT Specifications:

  • Facial Recognition
  • Face Picture ComparisonFace picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
  • Face Picture LibraryUp to 16 face picture libraries
  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 2-ch
  • Video and Audio
  • IP Video Input2-ch (up to 6-ch), Up to 6 MP resolution
  • Analog Video Input

    4-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,2K(2304×1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • CVBS InputPAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 × 576, NTSC: 704 × 480

  • HDMI Output

    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

    HDMI/VGA simultaneous output

  • VGA Output

    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

    HDMI/VGA simultaneous output

  • Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ),4-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous playback4-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    When 1080p Lite mode is not enabled:

    3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

    When 1080p Lite mode is enabled:

    3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame Rate

    Main stream:

    When 1080p Lite mode not enabled:

    For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    When 1080p Lite mode enabled:

    3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    Sub-stream:

    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport main stream or sub stream
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Remote Connection32
  • Total Bandwidth72 Mbps
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Auxiliary Interface
  • SATA1 SATA interface, up to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 × USB 2.0;

    Rear panel: 1 × USB 2.0

  • Alarm In/OutN/A (optional to support);4/1
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 18 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
  • ≤ 1.16 kg (2.6 lb)

Hikvision iDS-7208HQHI-M1/XT Specifications:

Motion Detection 2.0

  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

Perimeter Protection

  • Human/Vehicle Analysis Up to 4-ch

Facial Detection

  • Facial Detection and Capture Face picture detection, face picture search

Recording

  • Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate

    Main stream:

    8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate 32 Kbps to 10 Mbps
  • Dual-stream Support
  • Stream Type Video, Video & Audio
  • Audio Compression G.711u
  • Audio Bitrate 64 Kbps

Video and Audio

  • IP Video Input

    4-ch (up to 12-ch)

    Up to 8 MP resolution

    Enhanced IP mode on:

    8-ch (up to 16-ch), each up to 4 Mbps

    ;Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDMI Output

    1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

    1920 × 1080/60Hz,

    1280 × 1024/60Hz,

    1280 × 720/60Hz

    HDMI/VGA simultaneous output

  • CVBS Input PAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 × 576, NTSC: 704 × 480

  • Synchronous playback 8-ch
  • HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • VGA Output

    1-ch, 1920 × 1080/60Hz,

    1280 × 1024/60Hz,

    1280 × 720/60Hz

  • HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • Audio Output 1-ch, RCA (Linear, 1 KΩ)
  • Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

  • Total Bandwidth 128Mbps
  • Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection64
  • Network Interface

    1,RJ45 10M/100M/1000M self-adaptive

    Ethernet interface

Auxiliary Interface

  • SATA 1 SATA interface
  • Capacity Up to 10 TB capacity for each disk
  • Serial Interface RS-485 (half-duplex)
  • USB Interface

    1 × USB 2.0；

    1 × USB 3.0

  • Alarm In/Out N/A

General

  • Power Supply 12 VDC
  • Consumption ≤ 10 W
  • Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity 10% to 90%
  • Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
  • Weight≤ 2 kg (4.4 lb)

Hikvision iDS-7216HQHI-M1/XT Specifications:

Motion Detection 2.0

  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

    it can classify human and vehicle, and extremely reduce false alarms caused by objects

    like leaves and lights;

    Quick search by object or event type is supported;

Perimeter Protection

  • Human/Vehicle Analysis Up to 4-ch

Recording

  • Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    Main stream:

    8 MP@8 fps/5 MP@12 fps/3K@12 fps/4MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate 32 Kbps to 10 Mbps
  • Dual-Stream Support
  • Stream Type Video, Video & Audio
  • Audio Compression G.711u
  • Audio Bitrate 64 Kbps

Video And Audio

  • IP Video Input

    8-ch (up to 24-ch)

    Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps

    Up to 8 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    16-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDMI Output

    1-ch, 4K (3840 × 2160)/30Hz,

    2K (2560 × 1440)/60Hz,

    1920 × 1080/60Hz,

    1280 × 1024/60Hz,

    1280 × 720/60Hz

    HDMI/VGA simultaneous output

  • VGA Output

    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

    HDMI/VGA simultaneous output

  • CVBS Input PAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ω),

    resolution: PAL: 704 × 576, NTSC: 704 × 480

  • Synchronous Playback 16-ch
  • HDTVI Input

    8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4

    MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,

    1080p@30 fps, 1080p@25 fps, 720p@60 fps,

    720p@50 fps, 720p@30 fps, 720p@25 fps

  • AHD Input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output 1-ch, RCA (Linear, 1 KΩ)
  • Audio Input

    1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)

    16-ch via coaxial cable

  • Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Network

  • Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection 128
  • Network Interface

    1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Wi-Fi Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

  • SATA 2 SATA interfaces
  • Capacity Up to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 × USB 2.0

    Rear panel: 1 × USB 3.0

  • Alarm In/Out N/A (optional to support)

General

  • Power Supply 12 VDC, 5 A
  • Consumption ≤ 19 W
  • Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity 10% to 90%
  • Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • ≤ 2.1 kg (4.6 lb)

Hikvision DS-2CE78K0T-LFS Specifications:

Camera

  • Image Sensor 3K CMOS
  • Max. Resolution 2960 (H) × 1665 (V)
  • Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
  • Day & Night ICR
  • Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
  • Signal System PAL/NTSC

Lens

  • Lens Type 2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°

    3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°

  • Lens Mount M12

Illuminator

  • Supplement Light Type White Light;IR
  • Supplement Light Range

    IR : Up to 40 m

    White Light : Up to 20 m


  • Image Settings Brightness, Sharpness, Smart IR
  • Frame Rate

    TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps

    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps

    CVI: 4 MP@25 fps/30 fps

    CVBS: PAL/NTSC

  • Day/Night Mode Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image Enhancement DWDR/BLC/HLC/Global
  • White Balance Auto/Manual
  • AGC Yes

Interface

  • Video Output Switchable TVI/AHD/CVI/CVBS
  • Built-In Microphone Yes

General

  • Material

    Body：Metal

    Enclosure： Plastic

  • Dimension 97.9 mm × Ø110 mm (3.85″ × Ø4.33″)
  • Weight Approx. 340 g (0.75 lb.)
  • Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication HIKVISION-C
  • Language English
  • Power Supply

    12 VDC ± 25%

    *You are recommended to use one power adapter to supply the power for one camera.

  • Consumption Max. 3.3 W

Approval

  • Protection IP67

Additional information

Brand

Megapixel

5MP

Max. Resolution

2560 × 1944

Lens

2.8mm

IR Distance

IP Rating

Compression

Delivery & Returns

At Discount CCTV Supplier, we specialise in delivering high-quality, cost-effective Security systems tailored to meet the unique security needs of our clients. With a proven track record and a commitment to innovation, we believe our offerings align seamlessly with the mission and values of Discount CCTV Supplier.
Diverse Product Range
Our extensive product portfolio ensures that Discount CCTV Supplier can cater to a broad spectrum of customer requirements, from basic surveillance needs to more advanced security solutions.
Please note that you have the option to return new, unused items within 30 days of delivery for a refund. However, please be aware that a postage cost of £8.50 plus VAT for Maniland shipment and £15 Plus VAT from shipments to Northern Ireland. Will be deducted from the refunded amount.

Reviews

There are no reviews yet.

Be the first to review “Hikvision 3K DS-2CE72K0T-LFS ColorVu Audio Cameras Smart Hybrid Light 40M IR AI Facial Recognition DVR CCTV Security System Kit”
