Description

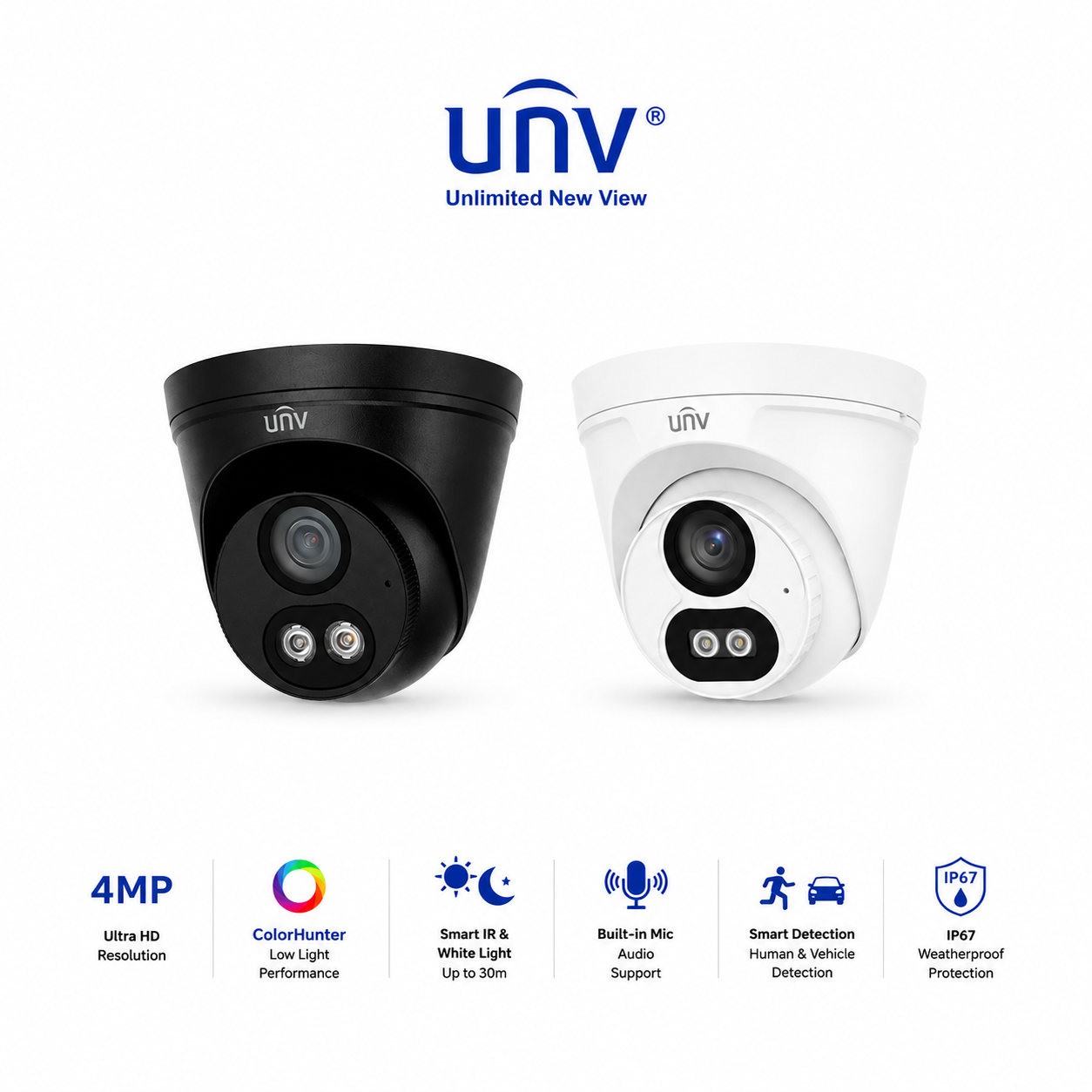

Uniview UV-IPC3614LB-AF28K-DL2-B is a professional 4MP ColorHunter Smart Dual-Light IP Turret Camera designed for high-quality full-colour surveillance in residential and commercial CCTV installations.
The Uniview UV-IPC3614LB-ADF28K-DL2-B is a professional 4MP EasyBasic Series IP turret camera featuring ColorHunter imaging and Smart Dual-Light technology. Designed for reliable day and night surveillance, it delivers vivid full-colour images in low-light conditions while maintaining efficient bandwidth usage with Ultra265 compression.
Ideal for homes, offices, retail stores and commercial installations, this camera combines dependable imaging, built-in Smart Dual-Light illumination, True WDR and IP67 weather protection in a cost-effective surveillance solution.
Key Features
EasyBasic Series
ColorHunter with Smart Dual-Light
ColorHunter technology captures brighter full-colour images in low-light environments. Smart Dual-Light intelligently switches between infrared and warm white LEDs to provide clear images while reducing unnecessary illumination.
AI & Smart Features
| Feature | Description |
|---|---|
| Motion Detection | Reliable event detection for everyday surveillance. |
| Smart Dual-Light | Automatically changes between IR and warm light. |
| ROI | Optimises bandwidth for important areas. |
| Privacy Mask | Masks selected areas from recording. |
| Corridor Mode | Optimised viewing for narrow spaces. |
Video Specifications
| Specification | Value |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Maximum Resolution | 2560 × 1440 (4MP) |
| Lens | 2.8mm Fixed |
| Frame Rate | Up to 30fps |
| Compression | Ultra265 / H.265 / H.264 / MJPEG |
| WDR | 120dB True WDR |
| DNR | 2D / 3D DNR |
Image Features
ColorHunter imaging, Smart IR, Smart Dual-Light, True WDR, BLC, HLC, Defog, ROI, Corridor Mode, Mirror and Digital Noise Reduction provide excellent image quality in varying lighting conditions.
Audio Features
This model does not include built-in audio.
Network & Storage
| Feature | Details |
|---|---|
| Ethernet | 10/100 Mbps RJ45 |
| Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, DHCP, NTP and more |
| Storage | MicroSD Card up to 512GB, NAS & ANR |
| ONVIF | Supported |
Interfaces
RJ45 Network Port, MicroSD Card Slot, Reset Button, 12V DC Input and PoE.
Environmental Protection
| Feature | Specification |
|---|---|
| Weather Rating | IP67 |
| Operating Temperature | -30°C to +60°C |
| Power | 12V DC / PoE IEEE802.3af |
Applications
Ideal for homes, offices, schools, retail stores, warehouses and general commercial CCTV installations.
Package Contents
1 × Uniview UV-IPC3614LB-ADF28K-DL2-B Camera
Mounting Accessories
Quick Installation Guide
Why Choose This Camera?
The UV-IPC3614LB-ADF28K-DL2-B offers dependable 4MP surveillance with ColorHunter full-colour imaging, Smart Dual-Light technology, efficient compression and IP67 weather protection, making it an excellent choice for value-focused CCTV systems.
Download the Official Full Specs Sheet
View the full manufacturer’s technical specifications for the
Download Official Datasheet
