Hikvision DS-KIS606-P 2MP IP Video Intercom Kit with 4.3-Inch Monitor, Wi-Fi & Two-Way Audio

Login or Register for prices

Buy the Hikvision DS-KIS606-P 2MP video intercom kit with a 4.3-inch monitor, two-way audio, Wi-Fi, PoE and convenient Hik-Connect app control.

Description

AAA CCTV | Product Overview

The Hikvision DS-KIS606-P video intercom kit is a complete IP door-entry solution designed for houses, villas and other properties with a single main entrance. It allows occupants to see visitors, hold a two-way conversation and operate a connected door-release system from the included indoor monitor.

The kit combines a 2MP outdoor villa door station with a compact 4.3-inch colour indoor monitor. The outdoor station has a wide-angle camera, infrared illumination, 120 dB wide dynamic range, a built-in microphone, a built-in loudspeaker and a simple one-press call button.

The indoor station supports wired Ethernet, standard PoE and 2.4GHz Wi-Fi connectivity. Compatible mobile control is available through the Hik-Connect app, allowing suitable call and intercom functions to be accessed from a smartphone when the system has been correctly installed, connected and configured.

Please note: A network connection, compatible lock hardware and professional installation may be required for some features. Mobile functionality depends on correct Hik-Connect configuration and a suitable internet connection.

AAA CCTV | Ideal Applications

  • Residential front-door visitor monitoring
  • Houses and villas with a single main entrance
  • Small offices and reception entrances
  • Gated pedestrian entrances
  • Replacing a basic audio-only doorbell or intercom
  • Properties requiring indoor and smartphone intercom control
  • New-build or refurbishment projects using wired IP infrastructure

AAA CCTV | Key Features & Benefits

Complete Intercom KitIncludes the outdoor door station, indoor monitor, protective rain shield and two power supplies.
2MP Visitor CameraProvides a main video stream of up to 1920 × 1080 for clear visitor identification.
Wide Viewing AngleA 131° horizontal and 78° vertical field of view helps cover a broad entrance area.
Two-Way AudioBuilt-in microphones and loudspeakers allow occupants and visitors to communicate clearly.
Noise and Echo ReductionNoise suppression and echo cancellation help improve voice clarity during intercom calls.
4.3-Inch Indoor MonitorThe compact colour TFT monitor provides an accessible indoor point for viewing and answering visitors.
Hik-Connect Mobile ControlCompatible smartphone functionality provides convenient mobile access when the system is connected and configured correctly.
PoE or 12V DC PowerBoth main devices support standard PoE or 12V DC, providing flexibility for different installation designs.
IP65 Outdoor ProtectionThe door station is protected against dust and water for suitable outdoor installation.
Included Rain ShieldThe supplied DS-KABV6113-RS shield provides additional physical protection around the surface-mounted door station.

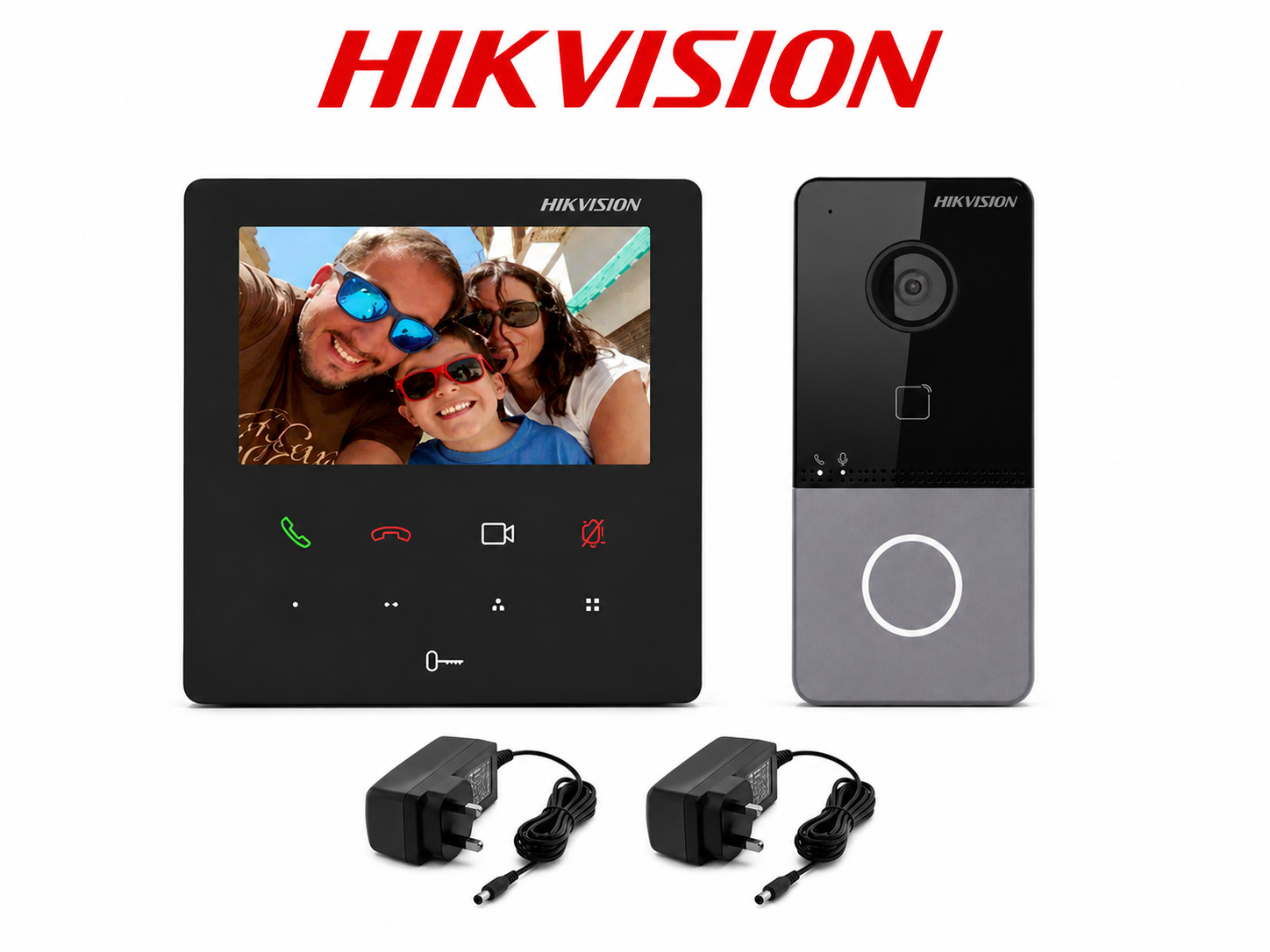

AAA CCTV | What’s Included

  • 1 × Hikvision DS-KV6113-PE1(C) 2MP villa door station
  • 1 × Hikvision DS-KH6110-WE1 4.3-inch indoor station
  • 1 × Hikvision DS-KABV6113-RS protective rain shield
  • 2 × Power supply units
Installation equipment: Network cabling, an Ethernet switch or PoE switch, lock hardware, exit buttons, door contacts and installation consumables are not listed as included unless expressly shown in the selected product offer.

AAA CCTV | Outdoor Door Station

Clear 2MP entrance video

The DS-KV6113-PE1(C) outdoor station uses a 2MP HD camera and supports a main video stream of up to 1920 × 1080. Its wide 131° horizontal field of view helps capture visitors standing close to the entrance.

Wide dynamic range

Entrances can contain strong contrast between bright daylight and shaded doorways. The door station supports 120 dB WDR, helping maintain useful detail in difficult backlit conditions.

Infrared illumination

Built-in infrared supplementary lighting provides illumination at distances of up to 3 metres under suitable conditions, helping the camera display visitors when entrance lighting is limited.

Integrated door-control connections

The door station provides one lock-control relay rated up to 30V DC at 2A, an exit-button input, a door-contact input, four alarm inputs, RS-485 and tamper detection. Compatibility must be checked before connecting third-party locking equipment.

Outdoor construction

The surface-mounted station has an IP65 protection rating and an operating-temperature range from -40°C to 55°C. Correct sealing, cable entry and installation remain essential for reliable outdoor operation.

AAA CCTV | Indoor Monitor

Compact 4.3-inch colour display

The supplied DS-KH6110-WE1 indoor station features a 4.3-inch colour TFT screen with a display resolution of 480 × 272. Its compact dimensions make it suitable for hallways, kitchens, offices and other convenient answering positions.

Simple physical controls

The monitor uses a capacitive interface with nine touch buttons, providing quick access to common intercom functions without requiring a large touchscreen panel.

Wired or Wi-Fi network connection

The indoor station includes one 10/100Mbps RJ45 network port and supports 2.4GHz Wi-Fi using 802.11 b/g/n. Wired Ethernet is generally preferred where maximum network stability is required.

Built-in two-way audio

A built-in omnidirectional microphone and loudspeaker provide two-way communication with the outdoor station. Noise suppression, echo cancellation and adjustable volume help improve everyday usability.

AAA CCTV | Smart Features, Networking & Remote Access

  • Hik-Connect compatibility: Supports convenient mobile-app control after suitable network and account configuration.
  • One-button calling: Visitors can initiate a call using the door station’s single physical call button.
  • Indoor extension capacity: The system supports compatible linked indoor extensions, subject to system design and configuration.
  • Door-release integration: A compatible electric lock can be connected through the door station’s relay output.
  • Ethernet networking: Both the indoor and outdoor devices include 10/100Mbps RJ45 interfaces.
  • Standard PoE support: Both devices support IEEE 802.3af standard PoE for compatible network installations.
Network advice: Wi-Fi is supported by the indoor station only. The outdoor door station uses its wired Ethernet interface. Confirm cabling, switch capacity and PoE compatibility before installation.

AAA CCTV | Technical Specifications

DS-KV6113-PE1(C) Outdoor Door Station

Camera2MP HD camera
Main Stream1920 × 1080
Sub Stream704 × 576
Field of ViewHorizontal 131°; vertical 78°
Wide Dynamic Range120 dB
Supplementary LightInfrared, up to 3 metres
Video CompressionH.264
AudioBuilt-in microphone and loudspeaker
Audio ProcessingNoise suppression and echo cancellation
Network Interface1 × RJ45, 10/100Mbps self-adaptive
Lock Control1 relay, maximum 30V DC, 2A
Additional InterfacesRS-485, 4 alarm inputs, exit button, door contact and tamper input
PowerIEEE 802.3af standard PoE or 12V DC
Power ConsumptionLess than 10W
Protection RatingIP65
Operating Temperature-40°C to 55°C
Operating Humidity10% to 95%, non-condensing
Dimensions138 × 65 × 27mm
InstallationSurface mounting
Net WeightApproximately 0.190kg

DS-KH6110-WE1 Indoor Station

Screen4.3-inch colour TFT
Display Resolution480 × 272
ControlsCapacitive interface with 9 touch buttons
AudioBuilt-in omnidirectional microphone and loudspeaker
Audio ProcessingNoise suppression, echo cancellation and adjustable volume
Wi-Fi802.11 b/g/n, 2.4GHz
Network Interface1 × RJ45, 10/100Mbps self-adaptive
Network ProtocolsTCP/IP, SIP and RTSP
PowerIEEE 802.3af standard PoE or 12V DC
Power ConsumptionMaximum 4W
Operating Temperature-10°C to 50°C
Operating Humidity10% to 95%, non-condensing
InstallationWall or table mounting; table bracket sold separately
WeightApproximately 197.8g without packaging

AAA CCTV | Product Downloads & Documentation

AAA CCTV | Frequently Asked Questions

What is included with the Hikvision DS-KIS606-P?

The manufacturer lists one DS-KV6113-PE1(C) outdoor door station, one DS-KH6110-WE1 indoor monitor, one DS-KABV6113-RS protective rain shield and two power supplies.

Does this intercom support two-way audio?

Yes. Both the outdoor and indoor stations have built-in microphones and loudspeakers. The system also supports noise suppression and echo cancellation.

Can I answer calls using my smartphone?

The kit supports compatible Hik-Connect mobile control. Internet access, an appropriate network and correct Hik-Connect account configuration are required.

Is the outdoor door station weather resistant?

Yes. The DS-KV6113-PE1(C) outdoor station has an IP65 protection rating. It must still be installed and sealed according to Hikvision guidance.

Does the outdoor station connect by Wi-Fi?

No. The outdoor station uses a wired 10/100Mbps Ethernet connection. The indoor monitor supports both Ethernet and 2.4GHz Wi-Fi.

Can the system unlock a door?

The outdoor station includes a lock-control relay rated up to 30V DC at 2A. The electric lock, power supply and associated access-control hardware must be compatible and installed correctly.

Can the devices be powered using PoE?

Yes. Both the indoor and outdoor stations support IEEE 802.3af standard PoE. They can also be powered from 12V DC.

Is the rain shield included?

Yes. The DS-KABV6113-RS protective shield is listed as an included component of the DS-KIS606-P kit.

Does the kit include an electric lock?

An electric lock is not listed in the confirmed manufacturer package contents. Locking hardware should be selected separately to suit the door and installation.

Can the indoor monitor be placed on a desk?

The indoor station supports table mounting, but the compatible DS-KABH6350-T table bracket is listed as an optional accessory and is not confirmed as part of this package.

AAA CCTV | Warranty & Support

This product is supplied with the applicable seller or manufacturer warranty shown on the product page or order documentation. Warranty duration should be confirmed before publication and should not be added to the listing unless verified.

Our UK-based team can assist with product compatibility, PoE requirements, network design, electric-lock integration and suitable installation accessories before purchase.

AAA CCTV | Why Buy From Us?

  • Genuine Hikvision Products supplied through trusted CCTV distribution channels.
  • UK-Based CCTV Supplier for domestic and commercial security projects.
  • Professional Technical Support before and after purchase.
  • Fast UK Delivery on eligible in-stock products.
  • Secure Online Checkout for safe and straightforward ordering.

AAA CCTV | Complete Your Door-Entry System

  • Compatible Cat5e or Cat6 network cable
  • Compatible PoE network switch
  • Electric door lock or magnetic lock
  • Lock power supply and door-release equipment
  • Exit button and door-contact sensor
  • Hikvision DS-KABH6350-T indoor-station table bracket
  • Professional installation accessories
  • View Video Intercom Products

AAA CCTV | Need Expert CCTV Advice?

Not sure which intercom, PoE switch or door-release equipment you need?

Choosing compatible video-intercom and access-control equipment can be confusing. Our specialists can help you check network requirements, power options, locking compatibility and installation accessories before ordering.

  • Video Intercom Product Advice
  • PoE and Network Guidance
  • Electric-Lock Compatibility Support
  • Residential and Commercial System Design
  • Technical Support Before and After Purchase

Sales & Technical Support: 0161 944 1922
Mobile & WhatsApp: 07305 398061

Our team is happy to help you choose the correct door-entry equipment before you order.

Additional information

Brand

Model

DS-KIS606-P

Product Type

IP Video Intercom Kit

Camera Resolution

2MP

Monitor Size

Monitor Size

Audio

Two-Way Audio

Mobile App

Hik-Connect

Connectivity

Ethernet, 2.4GHz Wi-Fi

Power

PoE or 12V DC

Outdoor Rating

IP65

Mounting

Surface Mount

Colour

Black
