8MP 4K Hikvision DS-2CE19U1T-AIT3ZF Motorized Varifocal 2.7-13.5mm Lens EXIR 80m CCTV Security Bullet Camera

Description

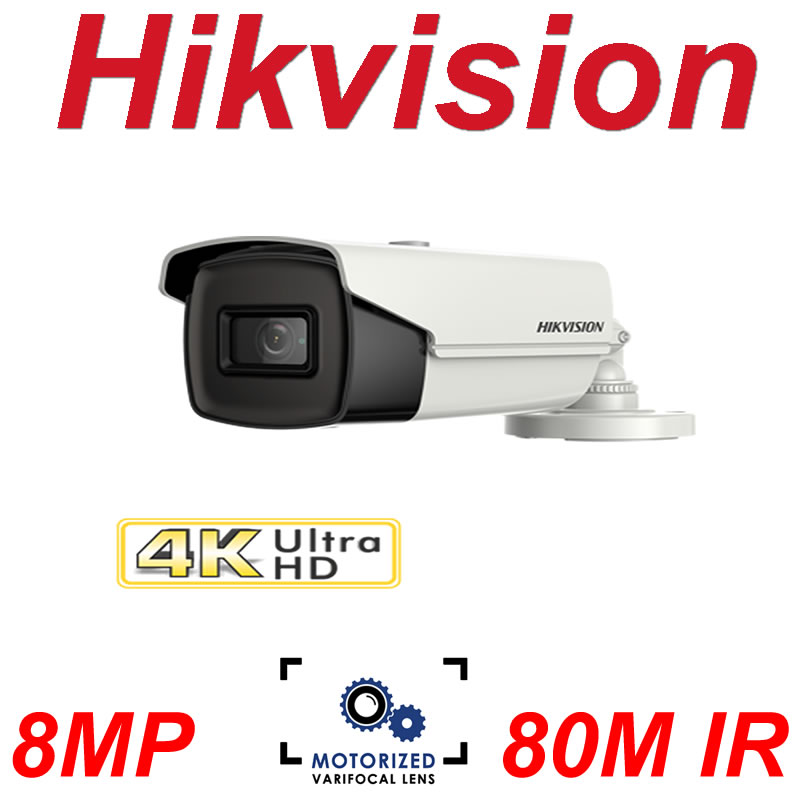

8MP 4K Hikvision DS-2CE19U1T-AIT3ZF Motorized Varifocal 2.7-13.5mm Lens EXIR 80m CCTV Security Bullet Camera

The Hikvision DS-2CE19U1T-AIT3ZF is a professional
8MP 4K motorised varifocal bullet CCTV camera designed
for high-resolution analogue CCTV installations requiring adjustable
long-range surveillance.

It combines 3840 × 2160 Ultra HD video,
a 2.7–13.5mm motorised varifocal lens,
automatic focusing when zooming, powerful
EXIR 2.0 infrared night vision up to 80 metres
and switchable TVI / AHD / CVI / CVBS video output.

With Digital WDR, Smart Supplement Light and an
IP67 weather-resistant housing, it is suitable for
homes, driveways, warehouses, yards, car parks and commercial CCTV
installations where a longer and adjustable viewing range is required.

Key Features

• 8MP Ultra HD 4K resolution – 3840 × 2160
• 8.29 megapixel progressive scan CMOS sensor
• 2.7–13.5mm motorised varifocal lens
• Automatic focus when zooming in or out
• Horizontal viewing angle from 108.1° to 45.6°
• EXIR 2.0 advanced infrared technology
• Up to 80m infrared night vision
• Smart Supplement Light
• Mechanical IR cut filter for day/night operation
• Digital WDR
• BLC and HLC image enhancement
• 2D digital noise reduction
• 4-in-1 switchable TVI / AHD / CVI / CVBS output
• 12V DC or 24V AC power options
• IP67 weather and dust resistance

Hikvision DS-2CE19U1T-AIT3ZF 8MP 4K Imaging

The Hikvision DS-2CE19U1T-AIT3ZF uses an
8.29 megapixel progressive scan CMOS sensor to provide
video at up to 3840 × 2160 resolution.
This gives considerably more image detail than standard 1080p analogue
CCTV cameras and makes the camera suitable for areas where identifying
people, vehicles and other important details is a priority.

Through TVI, the camera supports 8MP output at 12.5fps or 15fps,
5MP at 20fps, 4MP at 25/30fps and 1080p at 25/30fps.
The final recording resolution and frame rate depend on the capabilities
and settings of the connected DVR.

2.7–13.5mm Motorised Varifocal Lens

One of the main advantages of the
Hikvision DS-2CE19U1T-AIT3ZF is its
2.7–13.5mm motorised varifocal lens.
Unlike a fixed-lens camera, the viewing angle can be adjusted to provide
either wide general coverage or a narrower, more detailed view of a
specific target area.

The lens provides a horizontal field of view from approximately
108.1° at the wide setting to 45.6° when zoomed in.
This makes the camera particularly useful for driveways, gates,
car parks, warehouses, yards and perimeter surveillance.

The lens also focuses automatically when zooming in or out,
making setup easier and reducing the need for manual lens adjustment.

Up to 80m EXIR 2.0 Night Vision

The camera features Hikvision EXIR 2.0 infrared technology
with an IR illumination distance of up to 80 metres.
This provides powerful long-range black-and-white night surveillance
when there is insufficient ambient light.

The camera has a minimum colour illumination rating of
0.01 Lux at F2.4 with AGC enabled and can operate at
0 Lux in black-and-white mode with the infrared LEDs active.

Smart Supplement Light helps control infrared intensity to improve
night-time image quality and reduce excessive illumination on subjects
close to the camera.

Automatic Day & Night Operation

A built-in IR cut filter allows the
Hikvision DS-2CE19U1T-AIT3ZF to switch automatically between colour
daytime operation and infrared-assisted black-and-white night imaging.

The camera supports Auto, Colour and Black & White operating modes,
allowing the installation to be configured according to the surrounding
lighting conditions.

4-in-1 TVI / AHD / CVI / CVBS Video Output

The Hikvision DS-2CE19U1T-AIT3ZF provides a
switchable 4-in-1 analogue video output supporting
TVI, AHD, CVI and conventional CVBS signals.

This provides greater flexibility when installing the camera onto
compatible analogue CCTV systems. For maximum 8MP performance,
a DVR capable of accepting an 8MP input should be used.

Digital WDR & Image Enhancement

The camera includes Digital Wide Dynamic Range to help
improve visibility where bright and dark areas appear within the same scene.

Additional image-processing functions include
BLC, HLC, brightness adjustment, sharpness control,
AGC and 2D digital noise reduction to help optimise the picture
for different surveillance environments.

DVR Compatibility & Installation

The Hikvision DS-2CE19U1T-AIT3ZF is an
HD analogue CCTV camera and requires a compatible DVR.
It does not connect directly to an IP NVR and is not a PoE camera.

For 8MP operation, use a compatible Hikvision DVR capable of accepting
8MP HDTVI camera input, such as the
Hikvision iDS-7204HUHI-M1/XT.
The recorder supports 8MP HDTVI input, although the final recording
frame rate depends on the selected DVR channel and recording configuration.

The camera can be powered from
12V DC or 24V AC.
The manufacturer recommends using one suitable power adapter for each
camera. If a shared 12V power supply is used, check the total power load,
cable distance and voltage drop before installation.

IP67 Weather-Resistant Bullet Housing

The Hikvision DS-2CE19U1T-AIT3ZF has an
IP67 weather and dust protection rating, making it
suitable for indoor and outdoor CCTV installations.

Its construction uses a metal front cover with a plastic main body.
External BNC and power connections should still be protected inside
a suitable weather-resistant junction box when installed outdoors.

Technical Specifications

Official Hikvision Datasheet

Download Hikvision DS-2CE19U1T-AIT3ZF Datasheet

What’s Included?

• 1 × Hikvision DS-2CE19U1T-AIT3ZF 8MP 4K Motorised Varifocal Bullet Camera with 2.7–13.5mm Lens

DVR, recording hard drive, power supply, cables, junction box and
monitor are sold separately.
