1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images; 4-channel SMD Plus (AI by NVR);
AI by camera: Face detection and recognition, perimeter protection, and SMD Plus
Connected to the third-party network cameras
Security baseline 2.1
Dahua NVR2108HS-P-I Features:
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images; 4-channel SMD Plus (AI by NVR);
AI by camera: Face detection and recognition, perimeter protection, and SMD Plus
Connected to the third-party network cameras
Security baseline 2.1
Dahua NVR5216-16P-4KS2E Features:
16 channel IP video access
Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
Max 320 Mbps incoming bandwidth
Up to 24MP resolution for live view and playback
1-channel fisheye dewarping (AI by NVR)
AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
Support IPC UPnP, 16 PoE ports

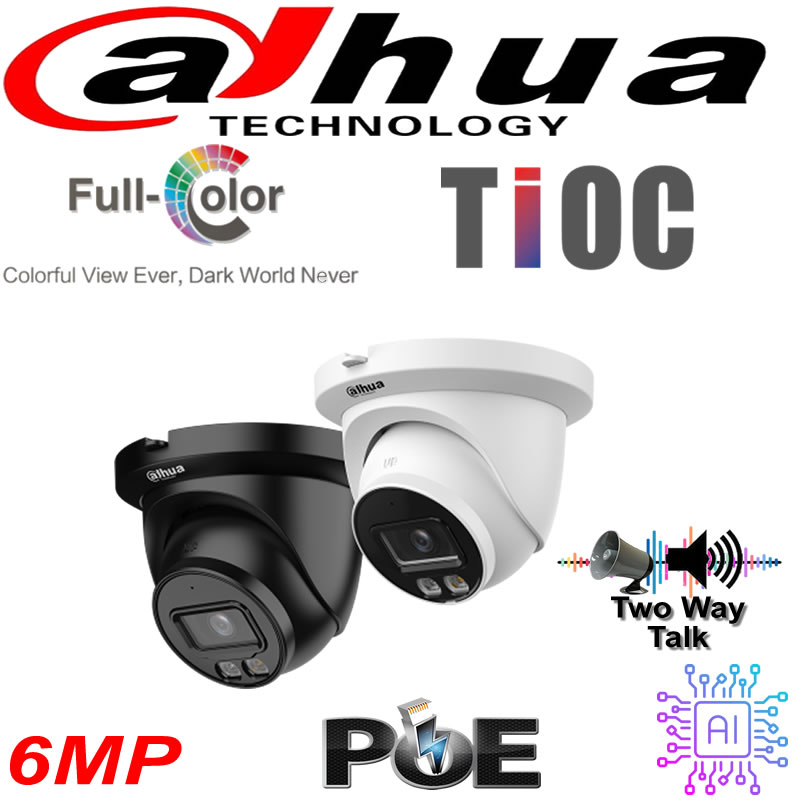

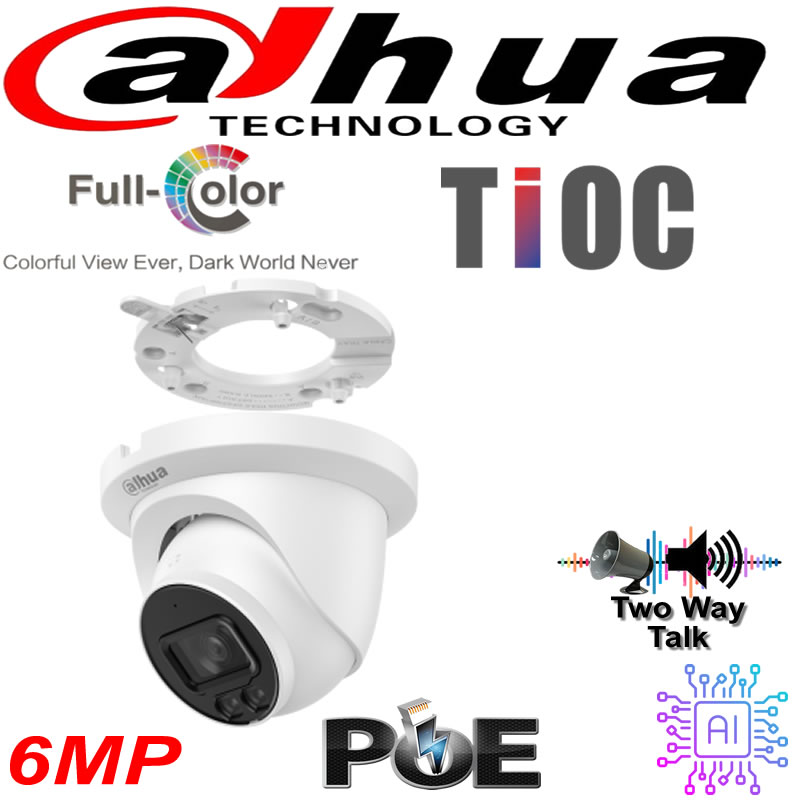

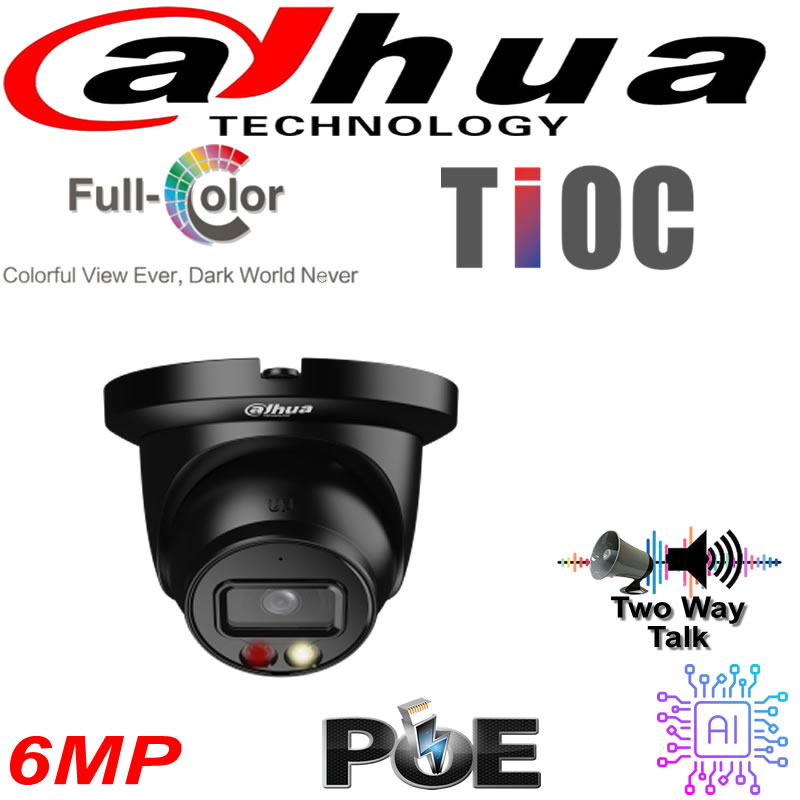

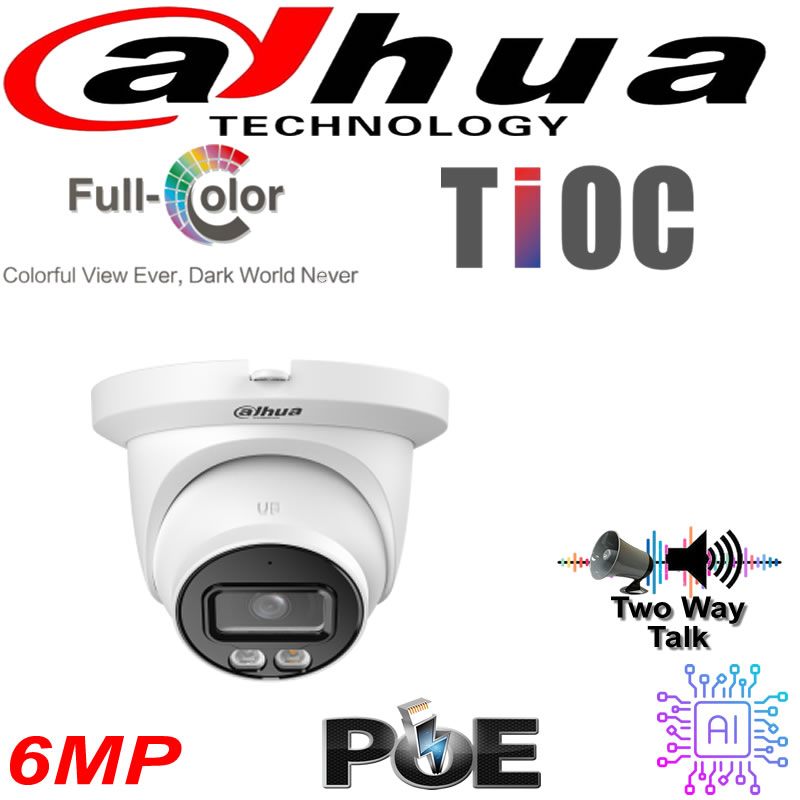

Dahua IPC-HDW2649TMP-S-PV Features:
6-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD Plus
Dahua NVR2104HS-P-I Specifications:
Main Processor: Industrial-grade embedded processor
Operating System: Embedded Linux
Operation Interface
Web; local GUI: AI
AI by Camera: Face detection; face recognition; perimeter protection; SMD Plus
AI by Device: Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection
Perimeter Performance AI by Device(Number of Channels): 1
Perimeter Performance of AI by Camera (Number of Channels): 4
Face Detection
Face Attributes: 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection Performance of AI by Device (1080P) (Number of Channels)
1 (up to 12 face images/second)
Face Detection Performance of AI by Camera (Number of Channels):4
Face Recognition
Face Database Capacity: Up to 10 face databases with 5,000 images
Face Recognition Performance of AI by Device (1080P) (Number of Channels): 1 (up to 4 face images/second)
Face Recognition Performance of AI by Camera (Number of Channels): 4
SMD Plus
SMD Plus by Device: 4
SMD Plus by Camera: 4-channel SMD Plus (AI by camera): Detects tripwire and intrusion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away
Video
Access Channel: 4 channels
Network Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage
Local HDD and network
Backup: USB device
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off
SMD Plus
Performance: 4 channels
AI Search: Search by target classification (human, vehicle)
Face Recognition
Performance
Max 8 face pictures/sec processing
1 channel video stream face recognition
Stranger Mode
Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually
AI Search
Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management
Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Database Application
Each database can be applied to video channels independently
Non-motor Vehicle: Type; colour; number of passengers; helmet
AI Search: Supports searching for target video by metadata
ANPR by Camera
Performance: 4 channels
Stereo Analysis by Camera
Performance: 16 channels
AI Search: Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)
Video
Access Channel: 16/32
Network Bandwidth: 320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding
Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
Field of View 2.8 mm: H: 111°; V: 58°; D: 132° 3.6 mm: H: 87°; V: 49°; D: 100°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 1.9 m (6.23 ft)
Lens Detect Observe Recognize Identify 2.8 mm 84.8 m ( 278.22 ft) 33.9 m( 111.22 ft)17.0 m( 55.77 ft)8.5 m( 27.89 ft)3.6 mm 98.7 m( 323.82 ft)39.5 m( 129.59 ft)19.7 m( 64.63 ft) 9.9 m ( 32.48 ft)
DORI Distance
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD Plus Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
At Discount CCTV Supplier, we specialise in delivering high-quality, cost-effective Security systems tailored to meet the unique security needs of our clients. With a proven track record and a commitment to innovation, we believe our offerings align seamlessly with the mission and values of Discount CCTV Supplier. Diverse Product Range Our extensive product portfolio ensures that Discount CCTV Supplier can cater to a broad spectrum of customer requirements, from basic surveillance needs to more advanced security solutions. Please note that you have the option to return new, unused items within 30 days of delivery for a refund. However, please be aware that a postage cost of £8.50 plus VAT for Maniland shipment and £15 Plus VAT from shipments to Northern Ireland. Will be deducted from the refunded amount.
Reviews
There are no reviews yet.
Be the first to review “Dahua IPC-HDW2649TMP-S-PV 6MP TiOC Two Way Audio Smart Color Full AI WizSense Intelligent NVR IP PoE CCTV Camera System” Cancel reply
